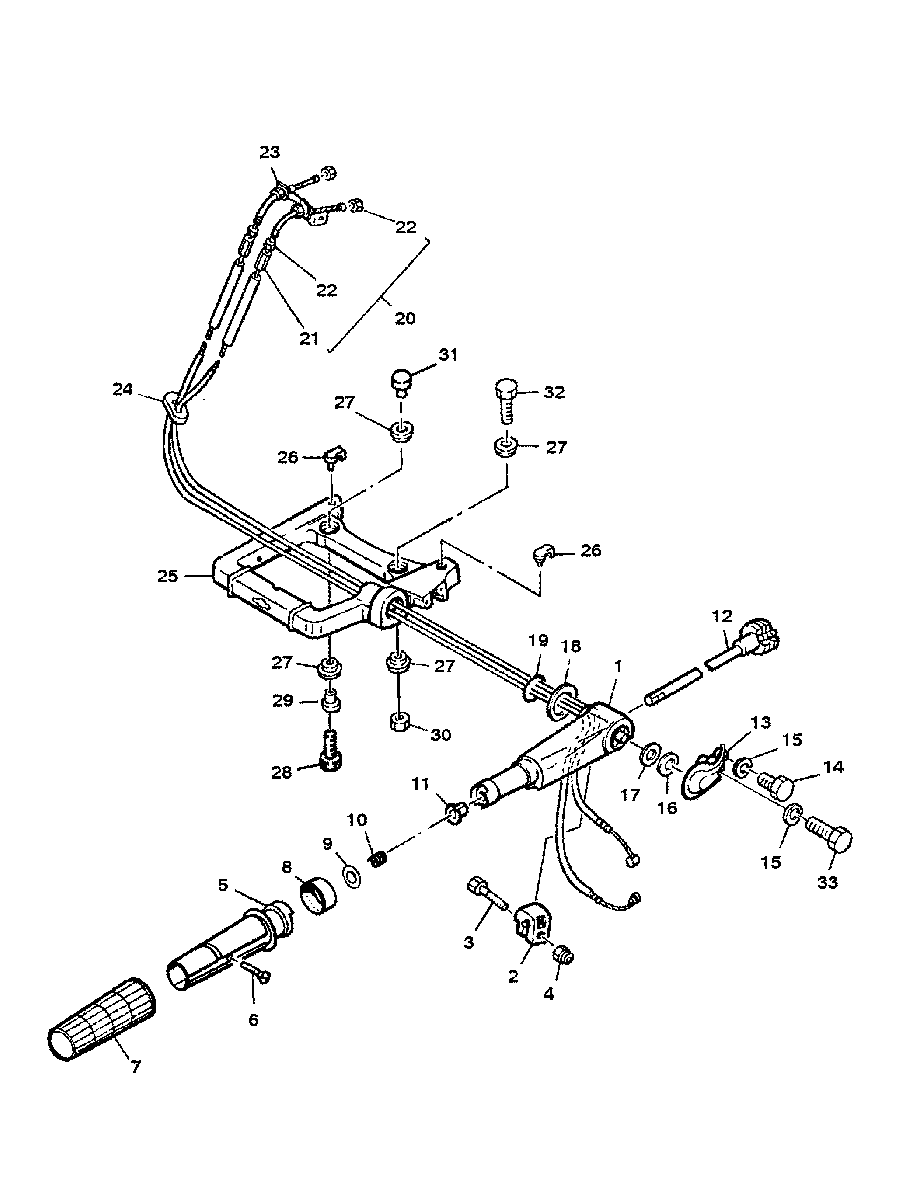

STEERING HANDLE для Mariner - 8 K 680-304926 THRU 680-348705 (ML)

‹-+›
  • №
    Артикул
    Название
  • 1
    83093M STEERING HANDLE
    STEERING HANDLE
  • 2
    82895M FRICTION PIECE
    FRICTION PIECE
  • 3
    10-84058M BOLT
    BOLT
  • 4
    11-83056M NUT
    NUT
  • 5
    80504M GRIP
    GRIP
  • 6
    10-811916M SCREW
    SCREW
  • 7
    80509M RUBBER
    RUBBER
  • 8
    95606M INDICATOR
    (M-001376 ML-317965 AND ABOVE)
    INDICATOR
    (M-001376 ML-317965 AND ABOVE)
  • 8
    NLA INDICATOR
    (M-001375 ML-317964 AND BELOW)
    INDICATOR
    (M-001375 ML-317964 AND BELOW)
  • 9
    12-82220M WASHER
    WASHER
  • 10
    24-82095M SPRING
    SPRING
  • 11
    23-81945M BUSHING
    BUSHING
  • 12
    81280M LEVER
    LEVER
  • 13
    95614M CAP
    M-001376 ML-317965 AND ABOVE
    CAP
    M-001376 ML-317965 AND ABOVE
  • 14
    10-84058M SCREW
    M-001376 ML-317965 AND ABOVE
    SCREW
    M-001376 ML-317965 AND ABOVE
  • 15
    12-82214M WASHER
    M-001376 ML-317965 AND ABOVE
    WASHER
    M-001376 ML-317965 AND ABOVE
  • 13
    80503M CAP
    M-001375 ML-317964 AND BELOW
    CAP
    M-001375 ML-317964 AND BELOW
  • 14
    10-11828M SCREW
    M-001375 ML-317964 AND BELOW
    SCREW
    M-001375 ML-317964 AND BELOW
  • 15
    13-82212M WASHER
    M-001375 ML-317964 AND BELOW
    WASHER
    M-001375 ML-317964 AND BELOW
  • 16
    23-80506M SPACER (0.5MM)
    SPACER (0.5MM)
  • 16
    23-898103217 SPACER (0.6MM)
    SPACER (0.6MM)
  • 16
    23-80508M SPACER (0.8MM)
    SPACER (0.8MM)
  • 17
    23-82118M SPACER
    SPACER
  • 18
    23-82121M SPACER
    SPACER
  • 19
    25-82272M O-RING
    O-RING
  • 20
    95405M THROTTLE CABLE ASSEMBLY
    THROTTLE CABLE ASSEMBLY
  • 21
    11-81778M ADJUSTING NUT
    ADJUSTING NUT
  • 22
    11-81761M NUT
    NUT
  • 23
    81037M STAY
    STAY
  • 24
    25-81373M GROMMET
    GROMMET
  • 25
    81054M STEERING BRACKET
    STEERING BRACKET
  • 26
    80510M SPACER
    SPACER
  • 27
    25-80515M GROMMET
    GROMMET
  • 28
    10-82442M BOLT
    (M-000751 ML-306861 AND ABOVE)
    BOLT
    (M-000751 ML-306861 AND ABOVE)
  • 29
    82956M BUSHING
    BUSHING
  • 30
    11-82382M NUT
    M-000750 ML-306860 AND BELOW
    NUT
    M-000750 ML-306860 AND BELOW
  • 31
    82956M BUSHING
    M-000750 ML-306860 AND BELOW
    BUSHING
    M-000750 ML-306860 AND BELOW
  • 32
    10-82442M BOLT
    M-000750 ML-306860 AND BELOW
    BOLT
    M-000750 ML-306860 AND BELOW
  • 33
    10-827043M BOLT
    (M-001413 ML-318706 AND ABOVE)
    BOLT
    (M-001413 ML-318706 AND ABOVE)
