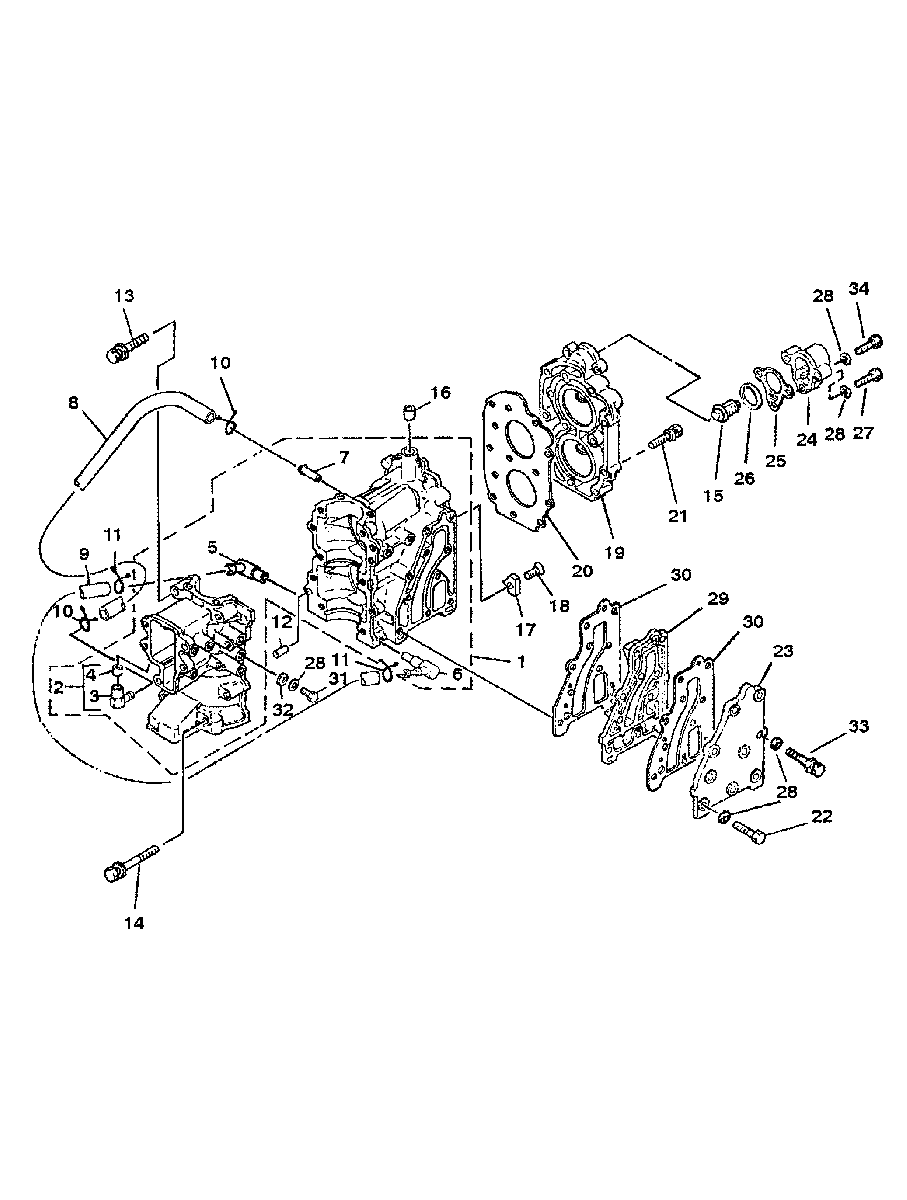

CRANKCASE AND CYLINDER HEAD для Mariner - 8 K 680-304926 THRU 680-348705 (ML)

  • №
    Артикул
    Название
  • 1
    870-827168M CRANKCASE
    (M-100131 ML-402041 AND ABOVE)
    CRANKCASE
    (M-100131 ML-402041 AND ABOVE)
  • 1
    870-827168M CRANKCASE
    (M-001413-100130 ML-318706-402040)
    CRANKCASE
    (M-001413-100130 ML-318706-402040)
  • 1
    870-8212M CRANKCASE
    (M-001412 ML-318705 AND BELOW)
    CRANKCASE
    (M-001412 ML-318705 AND BELOW)
  • 2
    21-80727M CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 3
    22-82975M DRAIN FITTING
    M-001375 ML-317964 AND BELOW
    DRAIN FITTING
    M-001375 ML-317964 AND BELOW
  • 4
    21-80107M CHECK VALVE
    M-001375 ML-317964 AND BELOW
    CHECK VALVE
    M-001375 ML-317964 AND BELOW
  • 5
    22-84661M DRAIN FITTING,
    DRAIN FITTING,
  • 6
    22-83326M DRAIN FITTING
    DRAIN FITTING
  • 7
    22-80122M DRAIN FITTING
    DRAIN FITTING
  • 8
    32-811045M HOSE
    HOSE
  • 9
    32-82012M HOSE
    HOSE
  • 10
    54-82046M CLAMP
    CLAMP
  • 11
    54-98974M CLAMP
    CLAMP
  • 12
    17-82359M DOWEL PIN
    DOWEL PIN
  • 13
    10-95592M BOLT
    BOLT
  • 14
    10-95593M BOLT
    BOLT
  • 15
    11919001 THERMOSTAT
    (M-001448 ML-321964 AND ABOVE)
    THERMOSTAT
    (M-001448 ML-321964 AND ABOVE)
  • 15
    83282M THERMOSTAT
    (M-001447 ML-321963 AND BELOW)
    THERMOSTAT
    (M-001447 ML-321963 AND BELOW)
  • 16
    17-14214M DOWEL PIN
    DOWEL PIN
  • 17
    97-84732M ANODE
    ANODE
  • 18
    10-95594M SCREW
    SCREW
  • 19
    968-8213M CYLINDER HEAD
    CYLINDER HEAD
  • 20
    27-95595 GASKET
    GASKET
  • 21
    10-43092M BOLT
    BOLT
  • 22
    10-83285M BOLT
    BOLT
  • 23
    95598M EXHAUST COVER (OUTER)
    EXHAUST COVER (OUTER)
  • 24
    83241M COVER
    COVER
  • 25
    27-83242 GASKET
    GASKET
  • 26
    12-81835M WASHER
    (M-001447 ML-321963 AND BELOW)
    WASHER
    (M-001447 ML-321963 AND BELOW)
  • 27
    10-82405M BOLT
    BOLT
  • 28
    12-82214M WASHER
    WASHER
  • 29
    95596M EXHAUST COVER (INNER)
    EXHAUST COVER (INNER)
  • 30
    27-95597 GASKET
    GASKET
  • 31
    10-91772M BOLT
    M-001375 ML-317964 AND BELOW
    BOLT
    M-001375 ML-317964 AND BELOW
  • 32
    27-95610 GASKET
    M-001375 ML-317964 AND BELOW
    GASKET
    M-001375 ML-317964 AND BELOW
  • 33
    10-826957M BOLT
    (M-001376 ML-317965 AND ABOVE)
    BOLT
    (M-001376 ML-317965 AND ABOVE)
  • 34
    10-14262M BOLT
    (M-001448 ML-321964 AND ABOVE)
    BOLT
    (M-001448 ML-321964 AND ABOVE)
  • -
    827167M POWERHEAD
    POWERHEAD
  • -
    27-95600M POWERHEAD GASKET SET
    POWERHEAD GASKET SET
