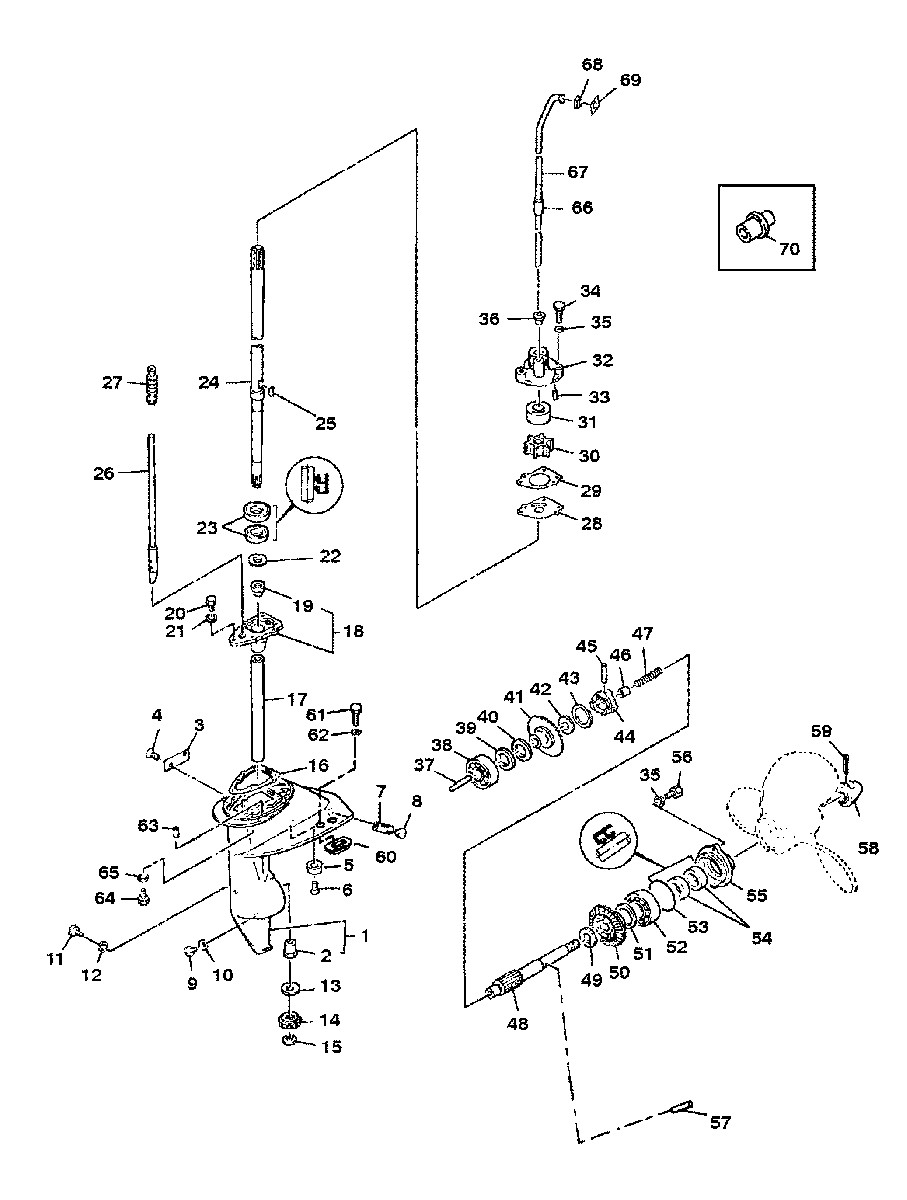

GEAR HOUSING ASSEMBLY для Mariner - 8 K 680-000551 THRU 680-001985 (M)
-
№АртикулНазвание
-
-1651-9835M GEAR HOUSING (SHORT)GEAR HOUSING (SHORT)
-
-1651-9836M GEAR HOUSING (LONG)GEAR HOUSING (LONG)
-
11651-9837M GEAR HSG. (BASIC)(M-001500 ML-326606 AND ABOVE)GEAR HSG. (BASIC)(M-001500 ML-326606 AND ABOVE)
-
11651-6942M GEAR HSG. (BASIC)(M-001499 ML-326605 AND BELOW)GEAR HSG. (BASIC)(M-001499 ML-326605 AND BELOW)
-
223-80536M BUSHINGBUSHING
-
383091M COVERCOVER
-
410-95467M SCREWSCREW
-
595609M ANODE (M-001508 ML-330469 AND ABOVE)ANODE (M-001508 ML-330469 AND ABOVE)
-
595609M ANODE (M-001413-001507 ML-318706-330468)ANODE (M-001413-001507 ML-318706-330468)
-
595609M ANODE (M-001376-001412 ML-31 965-318705)ANODE (M-001376-001412 ML-31 965-318705)
-
543107M ANODE (M-001375 ML-317964 AND BELOW)ANODE (M-001375 ML-317964 AND BELOW)
-
610-91772M SCREW (M-001413 ML-318706 AND ABOVE)SCREW (M-001413 ML-318706 AND ABOVE)
-
610-826957M SCREW (M-001376-001412 ML-317965-318705)SCREW (M-001376-001412 ML-317965-318705)
-
610-82791M SCREW (M-001375 ML-317964 AND BELOW)SCREW (M-001375 ML-317964 AND BELOW)
-
735-80246M COVERCOVER
-
822-81920M PLUGPLUG
-
922-81924M PLUGPLUG
-
1027-81987 GASKETGASKET
-
1110-81752M SCREWSCREW
-
1227-95610 GASKETGASKET
-
1312-80538M THRUST WASHER (0.8MM)THRUST WASHER (0.8MM)
-
1312-80539M THRUST WASHER (1.0MM)THRUST WASHER (1.0MM)
-
1312-80540M THRUST WASHER (1.2MM)THRUST WASHER (1.2MM)
-
1312-80541M THRUST WASHER (1.4MM)THRUST WASHER (1.4MM)
-
1443-82542M PINION GEARPINION GEAR
-
1553-82332M SNAP RINGSNAP RING
-
1627-80535M GASKETGASKET
-
1723-81983M SLEEVESLEEVE
-
1880537M HOUSINGHOUSING
-
1923-80536M BUSHINGBUSHING
-
2010-84058M BOLTBOLT
-
2112-82214M WASHERWASHER
-
2212-81809M WASHER (M-001507 ML-330468 AND BELOW)WASHER (M-001507 ML-330468 AND BELOW)
-
2326-82228M OIL SEALOIL SEAL
-
2445-81086M DRIVE SHAFT (SHORT 644MM)DRIVE SHAFT (SHORT 644MM)
-
2445-81087M DRIVE SHAFT (LONG 784MM)DRIVE SHAFT (LONG 784MM)
-
2445-83748M DRIVE SHAFT (ULTRA LONG 834MM)DRIVE SHAFT (ULTRA LONG 834MM)
-
2445-83753M DRIVE SHAFT (SUPER ULTRA LONG 911MM)DRIVE SHAFT (SUPER ULTRA LONG 911MM)
-
2528-81912M KEYKEY
-
2681071M SHIFT CAM (SHORT 311MM)SHIFT CAM (SHORT 311MM)
-
2681072M SHIFT CAM (LONG 451MM)SHIFT CAM (LONG 451MM)
-
2683744M SHIFT CAM (ULTRA LONG 501MM)SHIFT CAM (ULTRA LONG 501MM)
-
2683750M SHIFT CAM (SUPER ULTRA LONG (578MM)SHIFT CAM (SUPER ULTRA LONG (578MM)
-
2715304M BOOTBOOT
-
2881077M OUTER PLATEOUTER PLATE
-
2881078M OUTER PLATE (CHROME)OUTER PLATE (CHROME)
-
2927-81075 GASKETGASKET
-
3047-95611M IMPELLERIMPELLER
-
3180902M INSERTINSERT
-
3181076M INSERT (CHROME)INSERT (CHROME)
-
-84181T WATER PUMP REPAIR KITWATER PUMP REPAIR KIT
-
-27-84172M LOWER UNIT GASKET SETLOWER UNIT GASKET SET
-
-95615M CHROME WATER PUMP KITCHROME WATER PUMP KIT
