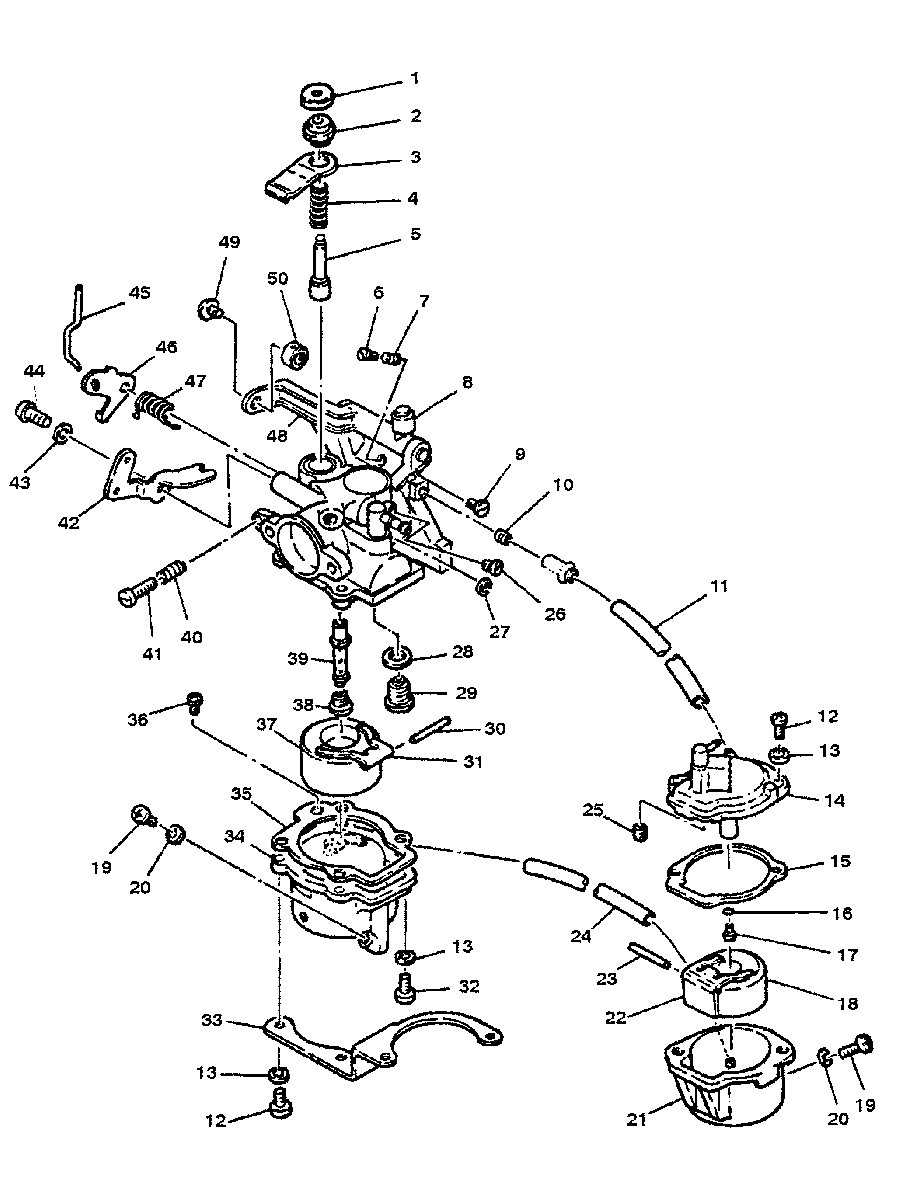

CARBURETOR для Mariner - 8 K 680-000551 THRU 680-001985 (M)

  • №
    Артикул
    Название
  • -
    1383-811009T CARBURETOR
    (M-001674 ML-333426 AND ABOVE)
    CARBURETOR
    (M-001674 ML-333426 AND ABOVE)
  • -
    1383-811009T CARBURETOR
    (M-001673 ML-333425 AND BELOW)
    CARBURETOR
    (M-001673 ML-333425 AND BELOW)
  • 1
    80196M COVER
    COVER
  • 2
    80197M CAP
    CAP
  • 3
    80199M PLATE
    PLATE
  • 4
    24-80194M SPRING
    SPRING
  • 5
    80195M PLUNGER
    PLUNGER
  • 6
    10-80573M IDLE MIXTURE SCREW
    IDLE MIXTURE SCREW
  • 7
    24-8095791 SPRING
    (M-001819 ML-342013 AND ABOVE)
    SPRING
    (M-001819 ML-342013 AND ABOVE)
  • 7
    24-814460M SPRING
    (M-001674-001818 ML-333426-342012)
    SPRING
    (M-001674-001818 ML-333426-342012)
  • 7
    24-80575M SPRING
    (M-001673 ML-333425 AND BELOW)
    SPRING
    (M-001673 ML-333425 AND BELOW)
  • 8
    23-80227M BUSHING
    BUSHING
  • 9
    811011M SLOW SPEED JET
    (M-001674 ML-333426 AND ABOVE)
    SLOW SPEED JET
    (M-001674 ML-333426 AND ABOVE)
  • 9
    94748M SLOW SPEED JET
    M-001673 ML-333425 AND BELOW
    SLOW SPEED JET
    M-001673 ML-333425 AND BELOW
  • 10
    94749M PILOT JET #50
    M-001673 ML-333425 AND BELOW
    PILOT JET #50
    M-001673 ML-333425 AND BELOW
  • 11
    32-97591M HOSE
    HOSE
  • 12
    10-83509M SCREW
    SCREW
  • 13
    13-82206M LOCKWASHER
    LOCKWASHER
  • 14
    94745M COVER
    COVER
  • 15
    27-94691M GASKET
    GASKET
  • 16
    25-94695M O-RING
    O-RING
  • 17
    94694M PILOT JET (#50)
    PILOT JET (#50)
  • 18
    94696M FLOAT
    FLOAT
  • 19
    10-811248M SCREW
    SCREW
  • 20
    27-13999M GASKET
    GASKET
  • 21
    94744M FLOAT BOWL
    FLOAT BOWL
  • 22
    94697M ARM
    ARM
  • 23
    17-811249M FLOAT PIN
    FLOAT PIN
  • 24
    32-94746M HOSE
    HOSE
  • 25
    95430M VALVE SEAT ASSEMBLY
    VALVE SEAT ASSEMBLY
  • 26
    94743M PILOT JET (#48)
    PILOT JET (#48)
  • 27
    53-94722M SNAP RING
    SNAP RING
  • 28
    27-80205M GASKET
    GASKET
  • 29
    11930M VALVE SEAT
    (M-001674 ML-333426 AND ABOVE)
    VALVE SEAT
    (M-001674 ML-333426 AND ABOVE)
  • 29
    80447M VALVE SEAT
    (M-001673 ML-333425 AND BELOW)
    VALVE SEAT
    (M-001673 ML-333425 AND BELOW)
  • 30
    17-80451M FLOAT PIN
    FLOAT PIN
  • 31
    80203M ARM
    ARM
  • 32
    10-83509M SCREW
    SCREW
  • 33
    94747M BRACKET
    BRACKET
  • 34
    94735M BODY
    BODY
  • 35
    27-80740M GASKET
    GASKET
  • 36
    83089M JET (#70)
    JET (#70)
  • 37
    80450M FLOAT
    FLOAT
  • 38
    94737M MAIN JET (#68)
    MAIN JET (#68)
  • 39
    811010M MAIN NOZZLE
    (M-001674ML-333426 AND ABOVE)
    MAIN NOZZLE
    (M-001674ML-333426 AND ABOVE)
  • 39
    94736M MAIN NOZZLE
    (M-001673ML-333425 AND BELOW)
    MAIN NOZZLE
    (M-001673ML-333425 AND BELOW)
  • 40
    24-80193M SPRING
    SPRING
  • 41
    10-80738M SCREW
    (M-100130 ML-402040 AND BELOW)
    SCREW
    (M-100130 ML-402040 AND BELOW)
  • 41
    10-827147M SCREW
    (M-100131 ML-402041 AND ABOVE)
    SCREW
    (M-100131 ML-402041 AND ABOVE)
  • 42
    80198M LEVER
    LEVER
  • 43
    83115M COLLAR
    COLLAR
  • 44
    10-83112M SET SCREW
    SET SCREW
  • 45
    94742M ROD
    ROD
  • 46
    94741M LEVER
    LEVER
  • 47
    24-80574M SPRING
    SPRING
  • 48
    94740M SHAFT
    SHAFT
  • 49
    10-80091M SCREW
    SCREW
  • 50
    83300M CAP
    CAP
  • -
    27-95600M POWERHEAD GASKET SET
    POWERHEAD GASKET SET
  • -
    94756M CARB REPAIR KIT
    CARB REPAIR KIT
