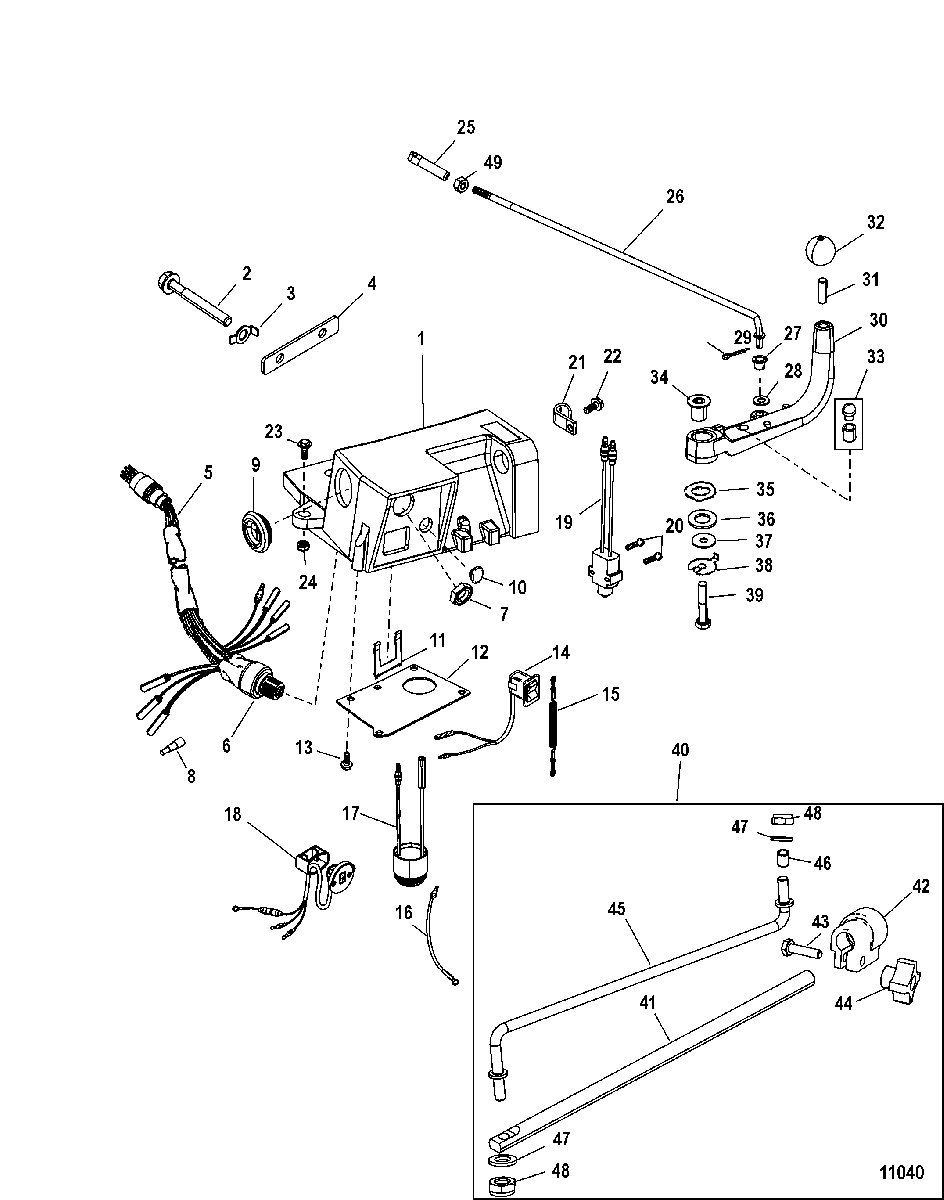

Steering Handle Kit Components, 896648A09 для Mariner - 75 DFI (3 CYL.)(1.5L) 1B736885 & Up
-
№АртикулНазвание
-
-896648A09 STEERING HANDLE KITSTEERING HANDLE KIT
-
1816366T08 HANDLE, BracketHANDLE, Bracket
-
210-881261 SCREW, (.313-24 x 3.50)SCREW, (.313-24 x 3.50)
-
314-42981 TAB WASHERTAB WASHER
-
4822263 SPACERSPACER
-
584-12649T11 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
687-88107A5 SWITCH KIT, Key, With Keys
For Replacement Key - Order 89491--1 Thru 89491-12 - See Key Chart - Ignition Switch SectionSWITCH KIT, Key, With Keys
For Replacement Key - Order 89491--1 Thru 89491-12 - See Key Chart - Ignition Switch Section -
711-879755 NUT, Special - Black NylonNUT, Special - Black Nylon
-
813541 PLUG, MalePLUG, Male
-
9121051 GROMMETGROMMET
-
1019-889730 PLUGPLUG
-
118M0032846 RETAINER, BrassRETAINER, Brass
-
128158041 COVERCOVER
-
1310-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
1487-11083A4 SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
158M0092850 LANYARD ASSEMBLY
Quicksilver BrandLANYARD ASSEMBLY
Quicksilver Brand -
158M0092849 LANYARD ASSEMBLY
Mercury BrandLANYARD ASSEMBLY
Mercury Brand -
1684-11149A3 CABLE ASSEMBLYCABLE ASSEMBLY
-
17889528T01 HORN ASSEMBLYHORN ASSEMBLY
-
1887-18286A19 SWITCH KIT, Trim (25.00 Feet)SWITCH KIT, Trim (25.00 Feet)
-
1987-8M0052941 SWITCHSWITCH
-
2010-12110 SCREW, (#6-32 x .750)SCREW, (#6-32 x .750)
-
2154-648551 CLAMPCLAMP
-
2210-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
2310-849838 SCREW, (.375-24 x 1.250)SCREW, (.375-24 x 1.250)
-
2411-8M0042636 NUT, (.375-24) Stainless SteelNUT, (.375-24) Stainless Steel
-
2548419T01 ROD END, (2.66 Inches)ROD END, (2.66 Inches)
-
26896640 ROD, ShiftROD, Shift
-
2723-26856 BUSHINGBUSHING
-
2812-35950 WASHER, (.273 x .437 x .031) Stainless SteelWASHER, (.273 x .437 x .031) Stainless Steel
-
2918-25191 COTTER PINCOTTER PIN
-
308M0033001 LEVERLEVER
-
3116-8M0034452 STUD, (.375-24 x 1.125)STUD, (.375-24 x 1.125)
-
3298530 KNOBKNOB
-
338M0091388 DETENT/SPRING KITDETENT/SPRING KIT
-
3423-8159831 BUSHINGBUSHING
-
3512-823970 WASHERWASHER
-
3612-824610 WASHER, PlasticWASHER, Plastic
-
3712-814803 WASHERWASHER
-
3814-8158051 TAB WASHERTAB WASHER
-
3910-4000357 SCREW, (M8 x 45)SCREW, (M8 x 45)
-
4056-52148A08 CO PILOT ASSEMBLYCO PILOT ASSEMBLY
-
4152148002 PILOT ROD, (15.00 Inches)PILOT ROD, (15.00 Inches)
-
4211-8M0103848 NUT ASSEMBLYNUT ASSEMBLY
-
4310-36137 SCREW, (.250-28 x 1.00)SCREW, (.250-28 x 1.00)
-
44821621 KNOB, ProngKNOB, Prong
-
45873491 ROD, LinkROD, Link
-
4623-26841 BUSHINGBUSHING
-
4712-8M0042642 WASHER, (.323 x .563 x .063) Stainless SteelWASHER, (.323 x .563 x .063) Stainless Steel
-
4811-826709111 NUT, (.312-24) Stainless SteelNUT, (.312-24) Stainless Steel
-
4911-64015 NUT, (.250-20)NUT, (.250-20)
