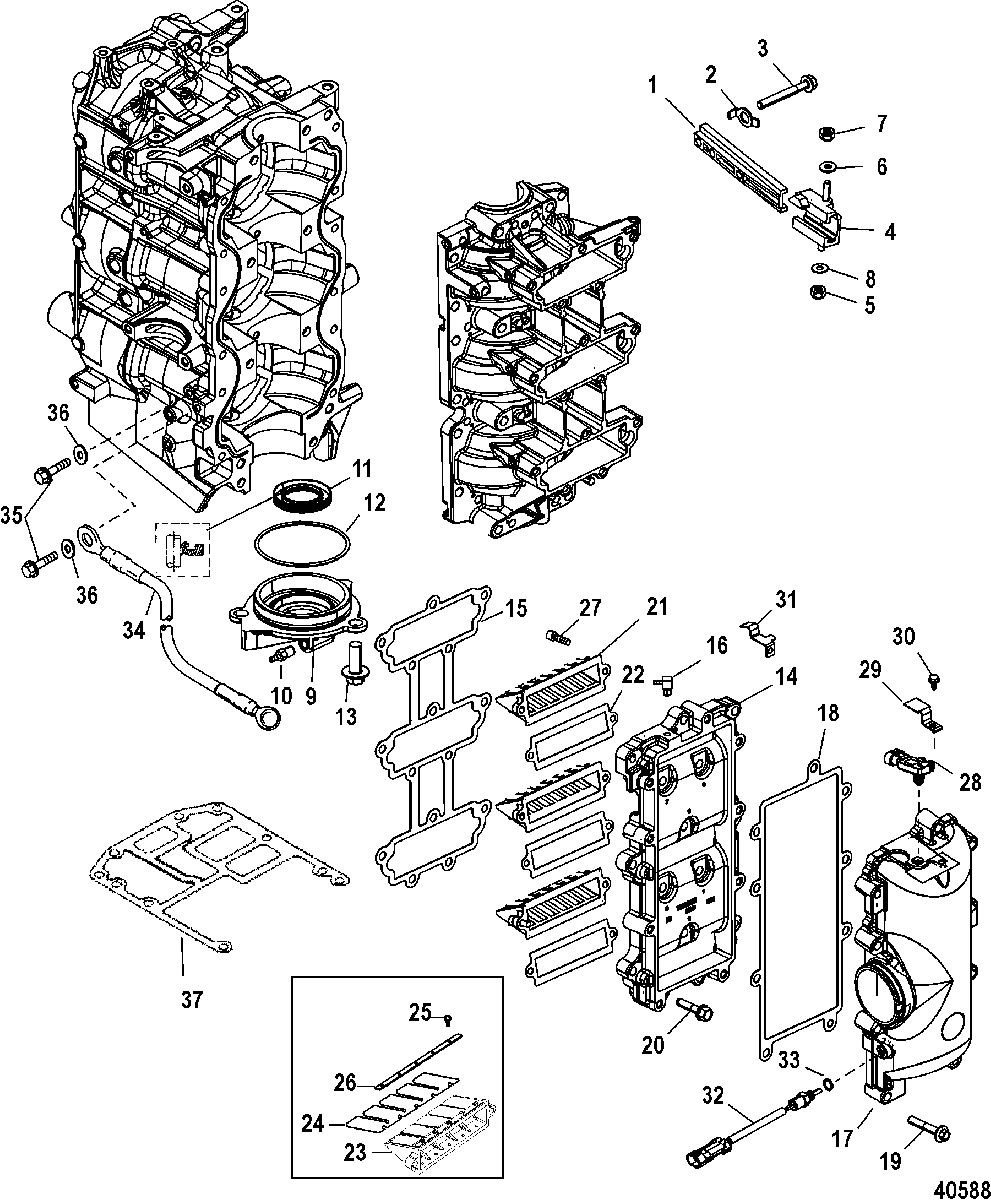

Reed Block для Mariner - 75 DFI (3 CYL.)(1.5L) 1B736885 & Up

  • №
    Артикул
    Название
  • 1
    42881A1 SHIFT RAIL ASSEMBLY
    SHIFT RAIL ASSEMBLY
  • 2
    14-42981 TAB WASHER
    TAB WASHER
  • 3
    10-40001134 SCREW, (M8 x 25)
    SCREW, (M8 x 25)
  • 4
    988851 SLIDE
    SLIDE
  • 5
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 6
    12-35459 WASHER
    WASHER
  • 7
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 8
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel
    WASHER, (.255 x .620 x .030) Stainless Steel
  • 9
    1169-858552T2 CAP ASSEMBLY, Lower End
    CAP ASSEMBLY, Lower End
  • 10
    21-426585 CHECK VALVE
    CHECK VALVE
  • 11
    26-419533 SEAL, Oil
    SEAL, Oil
  • 12
    25-89224 O-RING
    O-RING
  • 13
    10-4010825 SCREW, (M10 x 25) Hex Flange - Stainless Steel
    SCREW, (M10 x 25) Hex Flange - Stainless Steel
  • 14
    879839A00 PLATE ASSEMBLY, Reed Adaptor
    PLATE ASSEMBLY, Reed Adaptor
  • 15
    27-879840 GASKET
    GASKET
  • 16
    22-768431 FITTING
    FITTING
  • 17
    879841A03 COVER
    COVER
  • 18
    27-879843 GASKET
    GASKET
  • 19
    10-82127345 SCREW, (M8 x 45)
    SCREW, (M8 x 45)
  • 20
    10-82127335 SCREW, (M8 x 35 MM)
    SCREW, (M8 x 35 MM)
  • 21
    828623T4 REED BLOCK
    75/90/Jet 80
    REED BLOCK
    75/90/Jet 80
  • 21
    828623T4 REED BLOCK
    115 SN# 1B973156 & Below
    REED BLOCK
    115 SN# 1B973156 & Below
  • 22
    27-880122 GASKET
    75/90/115/Jet 80
    GASKET
    75/90/115/Jet 80
  • 23
    840418T04 REED BLOCK ASSEMBLY
    115 SN# 1B973157 & Up
    REED BLOCK ASSEMBLY
    115 SN# 1B973157 & Up
  • 23
    840418T04 REED BLOCK ASSEMBLY
    125
    REED BLOCK ASSEMBLY
    125
  • 24
    34-840445A04 REED PETAL ASSEMBLY
    125
    REED PETAL ASSEMBLY
    125
  • 25
    10-849038 SCREW, (M3 x 5)
    125
    SCREW, (M3 x 5)
    125
  • 26
    840447 REED PLATE
    125
    REED PLATE
    125
  • 27
    10-4007420 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 28
    854445 SENSOR, MAP
    SENSOR, MAP
  • 29
    884522 BRACKET, MAP Sensor
    BRACKET, MAP Sensor
  • 30
    10-82130016 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 31
    54-889559 CLAMP
    CLAMP
  • 32
    885342002 SENSOR ASSEMBLY
    SENSOR ASSEMBLY
  • 33
    25-896699 O-RING, (1.78 mm x .08 mm)
    O-RING, (1.78 mm x .08 mm)
  • 34
    84-88439A26 CABLE ASSEMBLY, Battery - Negative
    CABLE ASSEMBLY, Battery - Negative
  • 35
    10-81893414 SCREW, (M8 x 14)
    SCREW, (M8 x 14)
  • 36
    12-36001 WASHER
    WASHER
  • 37
    27-430075 GASKET
    GASKET
  • -
    27-879855A04 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • -
    895233A07 POWERHEAD ASSEMBLY, 75 DFI
    75 Horsepower
    POWERHEAD ASSEMBLY, 75 DFI
    75 Horsepower
  • -
    891767A07 POWERHEAD ASSEMBLY, 90/115 DFI
    90/115/125/Jet 80
    POWERHEAD ASSEMBLY, 90/115 DFI
    90/115/125/Jet 80
