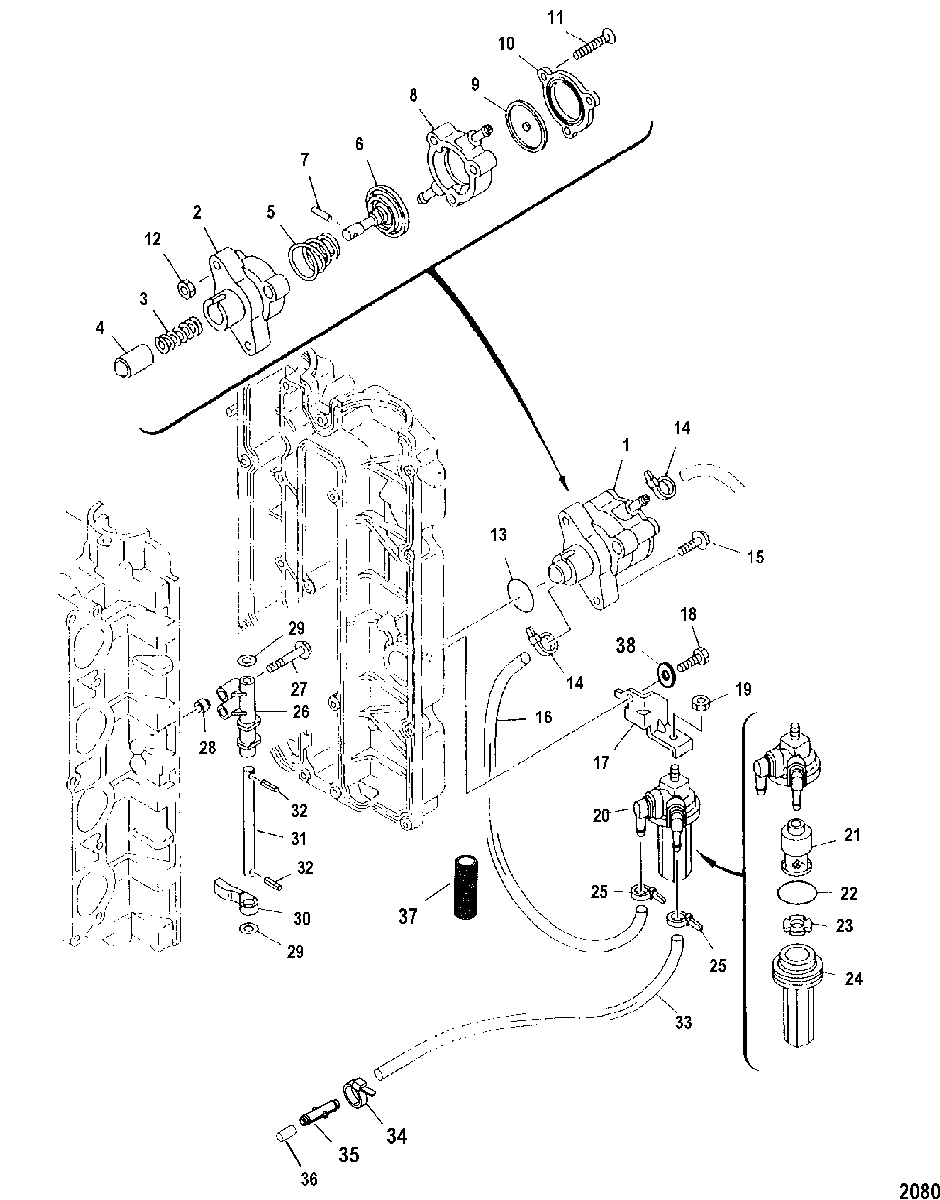

Fuel Pump(Serial Number 0T409000 & Up) для Mariner - 75 (4-STROKE) 0G960500 THRU 0T800999
-
№АртикулНазвание
-
1880890T1 PUMP, FuelPUMP, Fuel
-
2NSS NOT SOLD SEPARATE, BodyNOT SOLD SEPARATE, Body
-
324-881544 SPRINGSPRING
-
4881545 PLUNGERPLUNGER
-
524-881546 SPRINGSPRING
-
6881547 DIAPHRAGMDIAPHRAGM
-
717-881548 PINPIN
-
8NSS NOT SOLD SEPARATE, BodyNOT SOLD SEPARATE, Body
-
9NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
10NSS NOT SOLD SEPARATE, BodyNOT SOLD SEPARATE, Body
-
1110-881550 SCREWSCREW
-
1211-881333 NUTNUT
-
1325-8M0050719 O-RINGO-RING
-
1456762 CLAMPCLAMP
-
1510-804256 BOLT, (M6 x 30)BOLT, (M6 x 30)
-
1632-881543002 HOSEHOSE
-
17881542 BRACKETBRACKET
-
1810-826957M BOLTBOLT
-
1911-82382M NUTNUT
-
2035-881538T02 FILTER ASSEMBLYFILTER ASSEMBLY
-
2135-881540 ELEMENTELEMENT
-
2225-826966T O-RINGO-RING
-
23881541 FLOATFLOAT
-
24881539 CUPCUP
-
2556762 CLAMPCLAMP
-
26804260 BRACKETBRACKET
-
2710-804112 BOLT, (M7 x 48)BOLT, (M7 x 48)
-
2817-804113 PIN, DowelPIN, Dowel
-
2912-84292M WASHERWASHER
-
30804257 LEVER, Fuel ChangeLEVER, Fuel Change
-
31881334 SHAFTSHAFT
-
3217-82738M PINPIN
-
3332-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 55 Inches)TUBING, (.312) (70.00 Inches Bulk) (Cut to 55 Inches)
-
3454-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
3522-822769 CONNECTORCONNECTOR
-
36NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
3732-828547T1 CONDUIT, (.500 Inside Diameter x 3.00 Feet Bulk)CONDUIT, (.500 Inside Diameter x 3.00 Feet Bulk)
-
3812-82214M WASHERWASHER
-
-27-804345A02 GASKET SET, PowerheadGASKET SET, Powerhead
