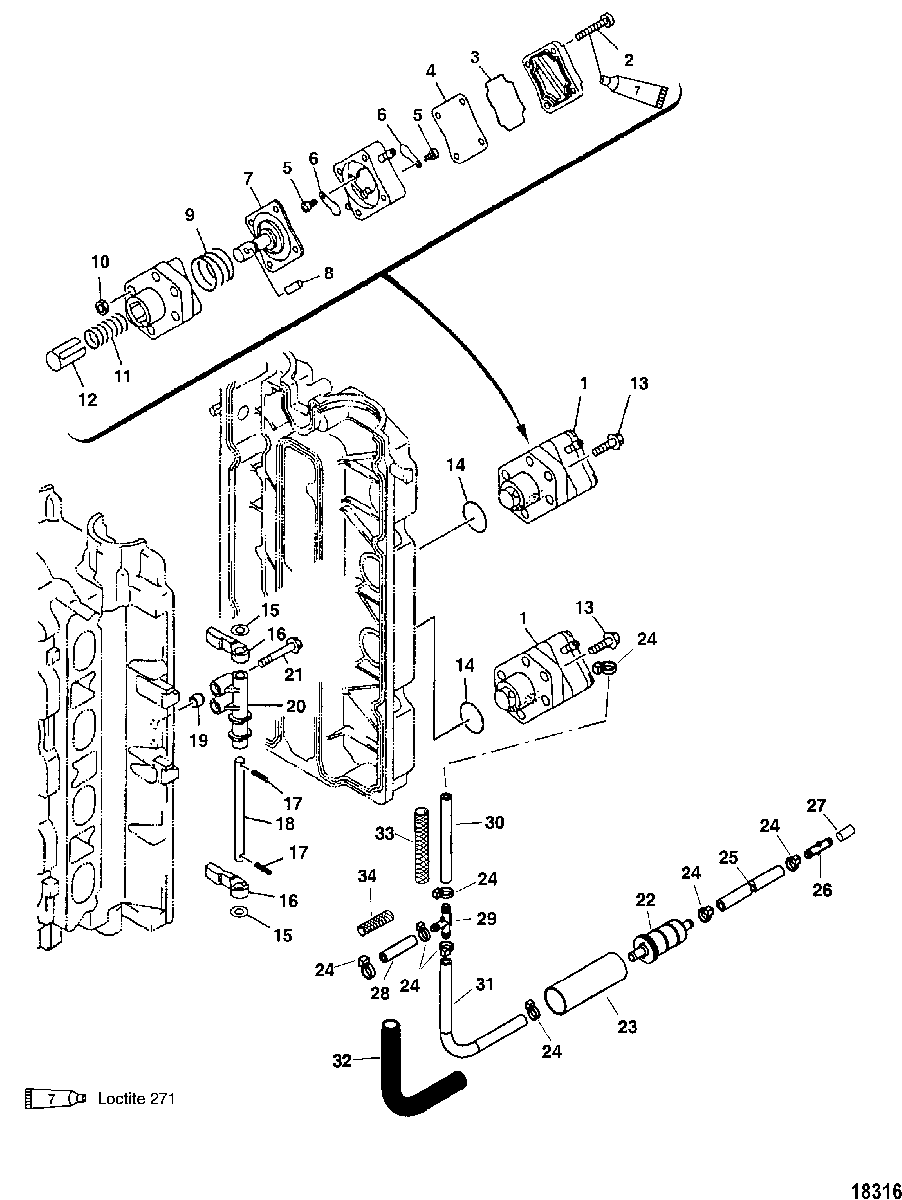

Fuel Pump(Serial Number 0T408999 & Below) для Mariner - 75 (4-STROKE) 0G960500 THRU 0T800999

  • №
    Артикул
    Название
  • 1
    804249T1 PUMP, Fuel
    PUMP, Fuel
  • 2
    10-809564 SCREW, (M5 x 35)
    SCREW, (M5 x 35)
  • 3
    809565 COVER
    COVER
  • 4
    8095611 DIAPHRAGM
    DIAPHRAGM
  • 5
    10-804253 SCREW
    SCREW
  • 6
    21-41888M CHECK VALVE
    CHECK VALVE
  • 7
    804250 DIAPHRAGM
    DIAPHRAGM
  • 8
    17-804254 PIN
    PIN
  • 9
    24-809562 SPRING
    SPRING
  • 10
    11-82388M NUT, (M5)
    NUT, (M5)
  • 11
    24-804252 SPRING
    SPRING
  • 12
    804251 PLUNGER
    PLUNGER
  • 13
    10-804256 BOLT, (M6 x 30)
    BOLT, (M6 x 30)
  • 14
    25-8M0050719 O-RING
    O-RING
  • 15
    12-84292M WASHER
    WASHER
  • 16
    804257 LEVER, Fuel Change
    LEVER, Fuel Change
  • 17
    17-82738M PIN
    PIN
  • 18
    804258 SHAFT
    SHAFT
  • 19
    17-804113 PIN, Dowel
    PIN, Dowel
  • 20
    804260 BRACKET
    BRACKET
  • 21
    10-804112 BOLT, (M7 x 48)
    BOLT, (M7 x 48)
  • 22
    35-877565T1 FILTER, Fuel
    FILTER, Fuel
  • 23
    8775381 PROTECTIVE SLEEVE
    PROTECTIVE SLEEVE
  • 24
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 25
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 36 Inches)
    TUBING, (.312) (70.00 Inches Bulk) (Cut to 36 Inches)
  • 26
    22-822769 CONNECTOR
    CONNECTOR
  • 27
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 28
    32-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 2 Inches)
    HOSE, (57.00 Inches Bulk) (Cut to 2 Inches)
  • 29
    22-818993 CONNECTOR, Tee
    CONNECTOR, Tee
  • 30
    32-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 4.75 Inches)
    HOSE, (57.00 Inches Bulk) (Cut to 4.75 Inches)
  • 31
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 13.5 Inches)
    TUBING, (.312) (70.00 Inches Bulk) (Cut to 13.5 Inches)
  • 32
    32-828547633 CONDUIT, (.620 Inside Diameter x 3.00 Feet Bulk) (Cut to 13 Inches)
    CONDUIT, (.620 Inside Diameter x 3.00 Feet Bulk) (Cut to 13 Inches)
  • 33
    32-828547T CONDUIT, (1.00 Inside Diameter x 3.00 Feet Bulk) (Cut to 3.75 Inches)
    CONDUIT, (1.00 Inside Diameter x 3.00 Feet Bulk) (Cut to 3.75 Inches)
  • 34
    32-828547T CONDUIT, (1.00 Inside Diameter x 3.00 Feet Bulk) (Cut to 1.25 Inches)
    CONDUIT, (1.00 Inside Diameter x 3.00 Feet Bulk) (Cut to 1.25 Inches)
  • -
    27-804345A02 GASKET SET, Powerhead
    GASKET SET, Powerhead
