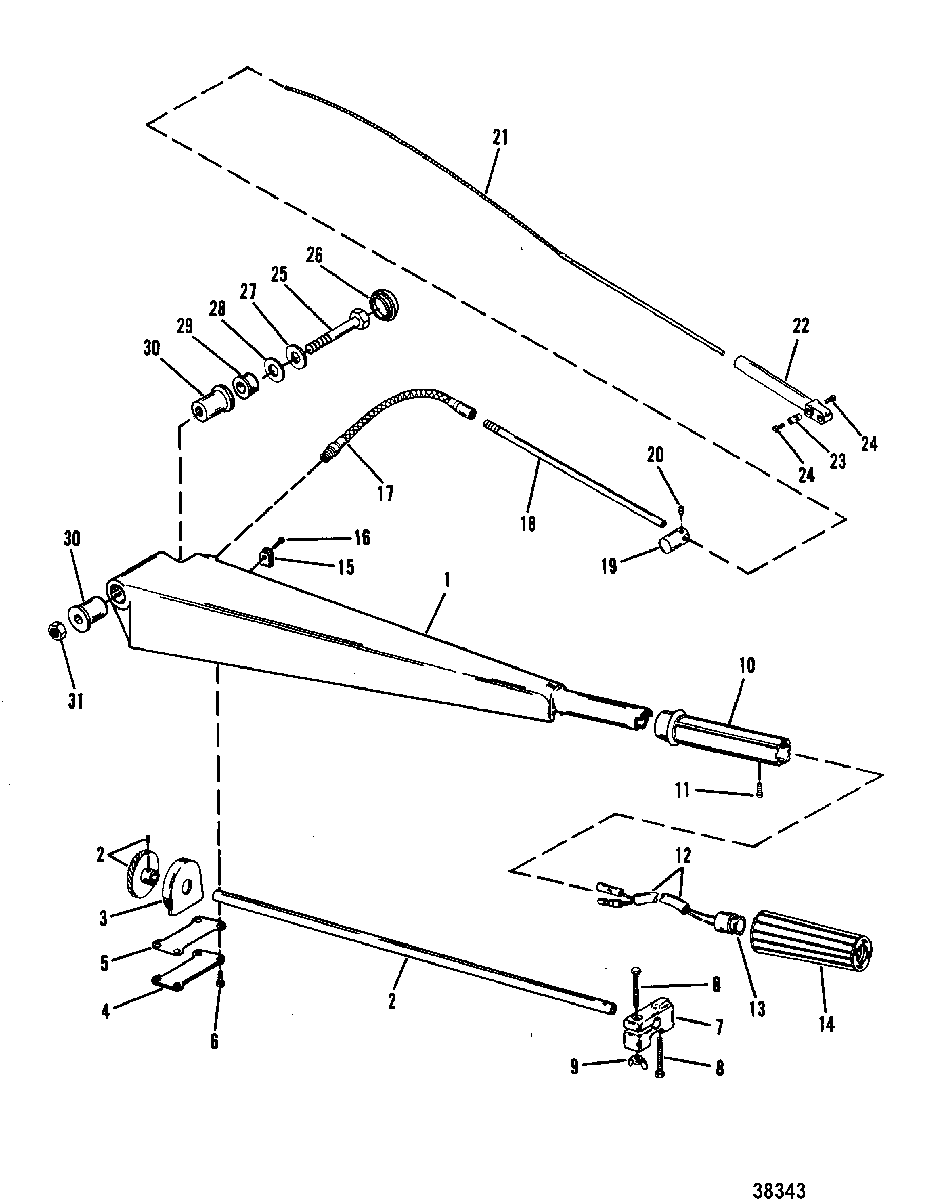

STEERING HANDLE COMPONENTS для Mariner - 75 (3 CYL.) 9483121 THRU 9506480

  • №
    Артикул
    Название
  • 1
    12020A3 ARM, Steering
    (MERCURY)
    ARM, Steering
    (MERCURY)
  • 1
    12020A3 HANDLE ASSEMBLY, Steering Arm
    (MARINER)
    HANDLE ASSEMBLY, Steering Arm
    (MARINER)
  • 2
    12018A4 TUBE ASSEMBLY, Throttle
    TUBE ASSEMBLY, Throttle
  • 3
    48414 HOUSING
    HOUSING
  • 4
    48519 PLATE
    PLATE
  • 5
    27-48518 GASKET
    GASKET
  • 6
    10-72169 SCREW, (#10-24 x .500), PLATE
    SCREW, (#10-24 x .500), PLATE
  • 7
    54-889729 CLAMP, THROTTLE
    CLAMP, THROTTLE
  • 8
    10-40007112 SCREW, (M5 x 40), THROTTLE CLAMP
    SCREW, (M5 x 40), THROTTLE CLAMP
  • 9
    11-816874 WING NUT, THROTTLE CLAMP SCREW
    WING NUT, THROTTLE CLAMP SCREW
  • 10
    87-823609A15 HANDLE ASSEMBLY, Throttle
    HANDLE ASSEMBLY, Throttle
  • 11
    10-62568 SCREW, (#10-16 x .375)
    SCREW, (#10-16 x .375)
  • 12
    87-823609A15 SWITCH ASSEMBLY, Stop
    SWITCH ASSEMBLY, Stop
  • 13
    11099A1 BOOT ASSEMBLY
    BOOT ASSEMBLY
  • 14
    99589003 GRIP
    GRIP
  • 15
    54-648552 CLIP
    CLIP
  • 16
    10-72169 SCREW, (#10-24 x .500), CLIP
    SCREW, (#10-24 x .500), CLIP
  • 17
    8885242 CONDUIT
    CONDUIT
  • 18
    8M0026078 GUIDE TUBE
    GUIDE TUBE
  • 19
    89578 BARREL
    BARREL
  • 20
    10-824081 SCREW
    SCREW
  • 21
    12019 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 22
    43433 GUIDE, CABLE
    GUIDE, CABLE
  • 23
    20007 ANCHOR
    ANCHOR
  • 24
    10-20518 SET SCREW, (#8-32)
    SET SCREW, (#8-32)
  • 25
    10-4000386 SCREW, (M10 x 100)
    SCREW, (M10 x 100)
  • 26
    48416T CAP
    CAP
  • 27
    12-4002319 WASHER
    WASHER
  • 28
    12-12024 WASHER, (.402 x .787 x .039 Bellevi)
    WASHER, (.402 x .787 x .039 Bellevi)
  • 29
    23-146011 SPACER
    SPACER
  • 30
    23-812930A1 BUSHING
    BUSHING
  • 31
    11-400214 NUT, (M10 x 1.5)
    NUT, (M10 x 1.5)
