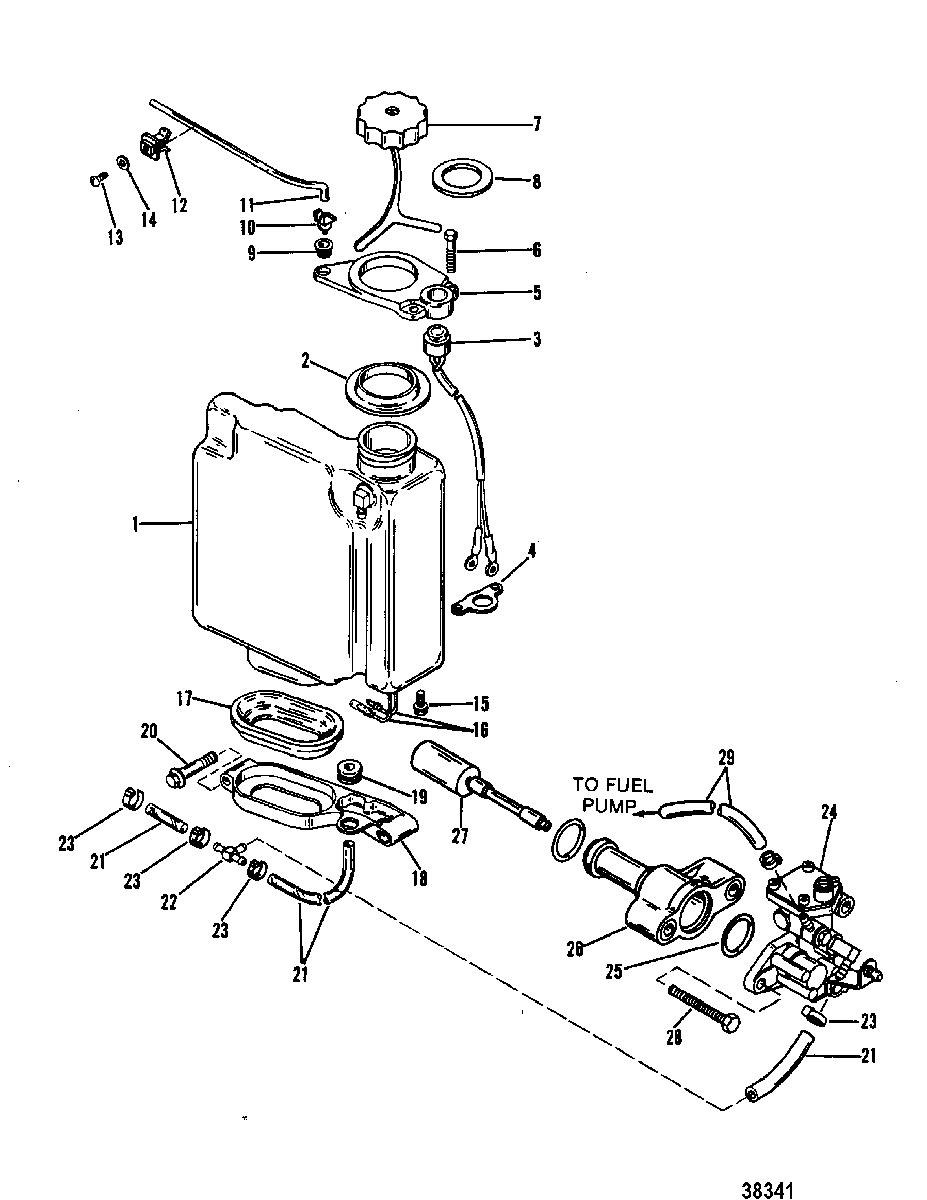

OIL INJECTION COMPONENTS для Mariner - 75 (3 CYL.) 9483121 THRU 9506480

  • №
    Артикул
    Название
  • 1
    1255-8627A7 TANK ASSEMBLY, Oil
    TANK ASSEMBLY, Oil
  • 2
    99160001 BOOT, OIL TANK (UPPER)
    BOOT, OIL TANK (UPPER)
  • 3
    87-44452A1 TEST SWITCH ASSEMBLY
    TEST SWITCH ASSEMBLY
  • 4
    44437 COVER, TEST SWITCH
    COVER, TEST SWITCH
  • 5
    988952 BRACKET, OIL TANK (UPPER)
    BRACKET, OIL TANK (UPPER)
  • 6
    10-4010630 SCREW, OIL TANK BRACKET
    SCREW, OIL TANK BRACKET
  • 7
    36-42653A3 CAP ASSEMBLY, OIL TANK
    CAP ASSEMBLY, OIL TANK
  • 8
    27-42999T GASKET, CAP
    GASKET, CAP
  • 9
    93254 SWIVEL BASE
    SWIVEL BASE
  • 10
    93421 SWIVEL BALL
    SWIVEL BALL
  • 11
    43359 ROD, Cowl
    ROD, Cowl
  • 12
    54-43406 CAMP, COWL ROD
    CAMP, COWL ROD
  • 13
    10-62568 SCREW, (#10 x 0.375), CLAMP
    SCREW, (#10 x 0.375), CLAMP
  • 14
    12-22887 WASHER, CLAMP SCREW
    WASHER, CLAMP SCREW
  • 15
    10-12896 SCREW, (#8-18 x .310), SWITCH
    SCREW, (#8-18 x .310), SWITCH
  • 16
    87-12886A6 SWITCH ASSEMBLY, OIL TANK
    SWITCH ASSEMBLY, OIL TANK
  • 17
    99161 BOOT, OIL TANK BASE
    BOOT, OIL TANK BASE
  • 18
    42888 BRACKET, Oil Tank Base
    BRACKET, Oil Tank Base
  • 19
    25-56291 GROMMET
    GROMMET
  • 20
    10-82155050 SCREW, BASE
    SCREW, BASE
  • 21
    32-82381455 TUBING
    TUBING
  • 22
    22-73318 TEE, Plastic
    TEE, Plastic
  • 23
    54-816311T CLAMP
    CLAMP
  • 24
    42959A2 PUMP, Oil
    PUMP, Oil
  • 25
    25-62705 O-RING, OIL PUMP
    O-RING, OIL PUMP
  • 26
    17335A4 ADAPTOR ASSEMBLY, OIL PUMP
    ADAPTOR ASSEMBLY, OIL PUMP
  • 27
    17335A4 GEAR, Driven
    GEAR, Driven
  • 28
    10-82104540 SCREW, OIL PUMP
    SCREW, OIL PUMP
  • 29
    32-82381335 TUBING, OIL PUMP TO FUEL PUMP
    TUBING, OIL PUMP TO FUEL PUMP
  • -
    27-43004A99 GASKET SET
    GASKET SET
