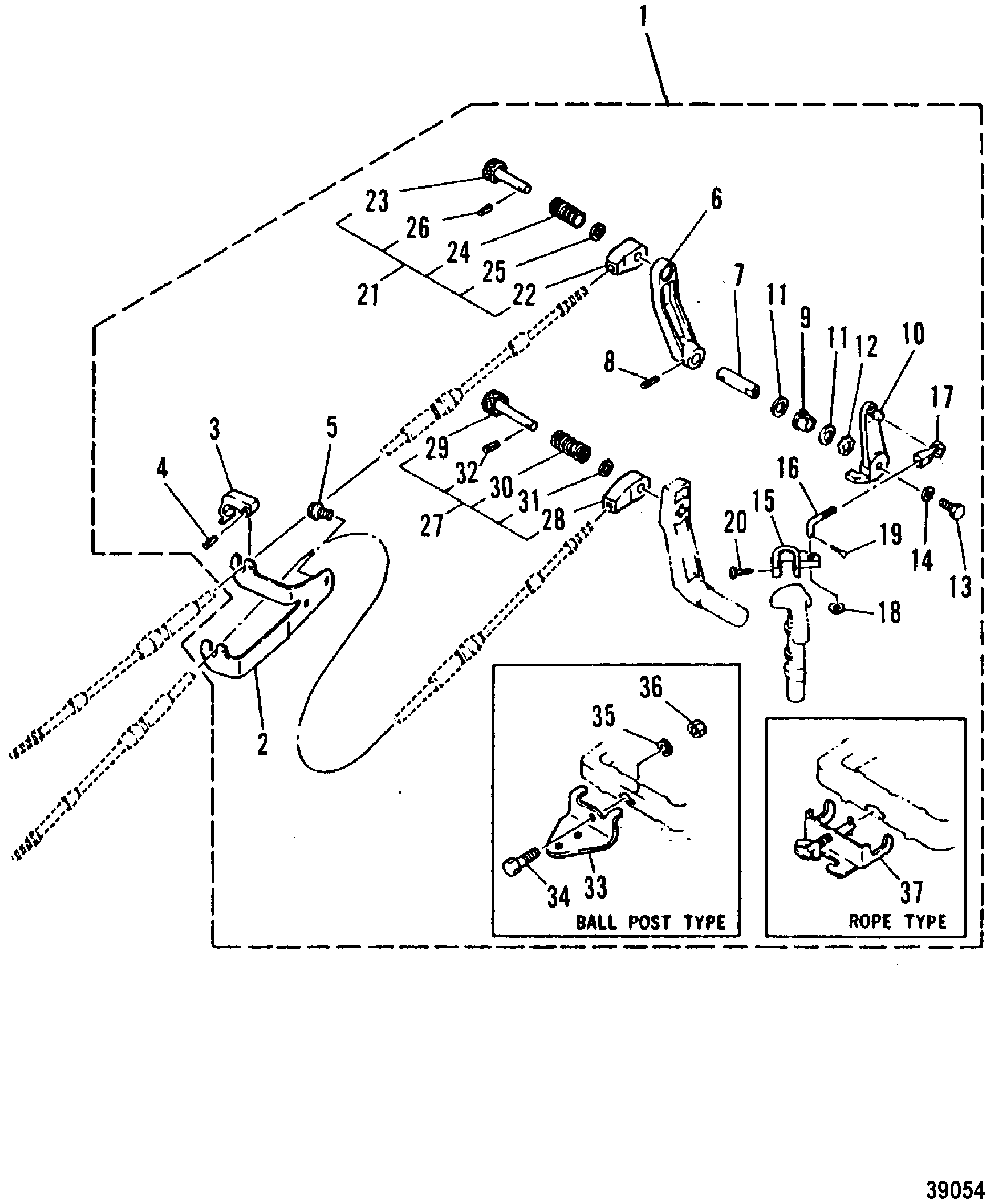

REMOTE CONTROL ATTACHING KIT для Mariner - 6C 6H8-306503 & Up
-
№АртикулНазвание
-
111661A1 ATTACHING KIT (BALL POST TYPE)ATTACHING KIT (BALL POST TYPE)
-
211662M BRACKET, REMOTE CONTROLBRACKET, REMOTE CONTROL
-
354-84113M CLAMP, CABLECLAMP, CABLE
-
417-82146M PIN, SPRINGPIN, SPRING
-
510-95456M BOLTBOLT
-
611663M LEVER, MAGNETO CONTROLLEVER, MAGNETO CONTROL
-
711664M SHAFTSHAFT
-
817-82155M PINPIN
-
923-81946M BUSHINGBUSHING
-
1011665M LEVER, MAGNETO CONTROLLEVER, MAGNETO CONTROL
-
1112-81846M WASHERWASHER
-
1213-11666M WASHER, WAVEWASHER, WAVE
-
1310-82879M BOLTBOLT
-
1412-82211M WASHERWASHER
-
1511667M LEVER, MAGNETO CONTROLLEVER, MAGNETO CONTROL
-
1611668M RODROD
-
1716715M ENDEND
-
1812-83768M WASHERWASHER
-
1918-84301M PIN, COTTERPIN, COTTER
-
2010-11669M SCREWSCREW
-
2184109M END ASSEMBLY, Cable (THROTTLE)END ASSEMBLY, Cable (THROTTLE)
-
2284110M END, CableEND, Cable
-
2317-814499M HOOK, CABLEHOOK, CABLE
-
2424-83725M SPRINGSPRING
-
2512-82217M WASHERWASHER
-
2617-82146M PINPIN
-
2784106M END ASSEMBLY, Cable (SHIFT)END ASSEMBLY, Cable (SHIFT)
-
2884107M END, CableEND, Cable
-
2917-814500M HOOK, CABLEHOOK, CABLE
-
3024-83721M SPRINGSPRING
-
3112-82217M WASHERWASHER
-
3217-82146M PINPIN
-
3311670T BRACKET, STEERING (BALL POST TYPE)BRACKET, STEERING (BALL POST TYPE)
-
3410-91636M BOLTBOLT
-
3512-82220M WASHERWASHER
-
3611-81785M LOCKNUT, SELF LOCKINGLOCKNUT, SELF LOCKING
-
3783727M BRACKET, STEERING (ROPE TYPE)BRACKET, STEERING (ROPE TYPE)
