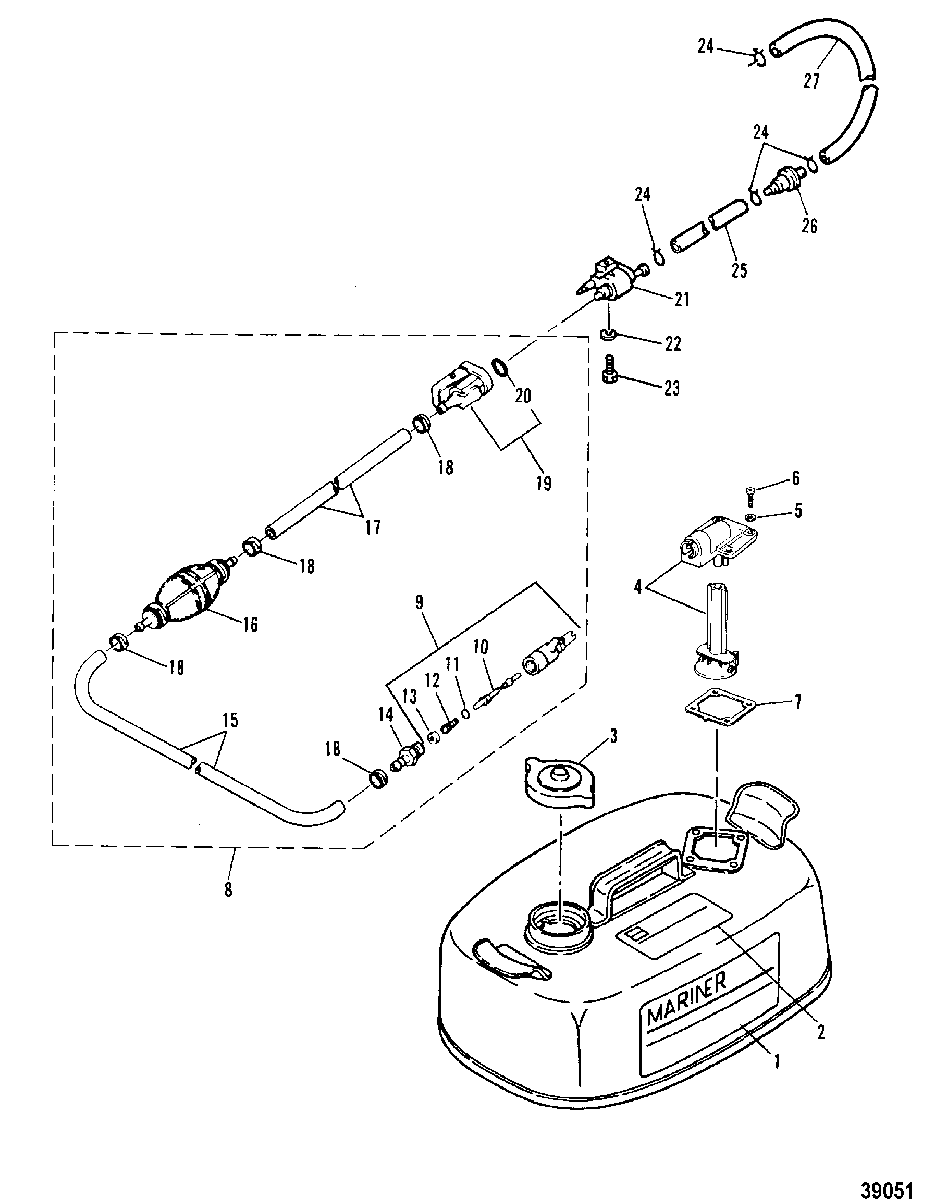

FUEL TANK AND FUEL LINES(ORIGINAL)(14 LITRE) для Mariner - 6C 6H8-306503 & Up
-
№АртикулНазвание
-
137-95539M DECAL, SIDE (ENGLISH)DECAL, SIDE (ENGLISH)
-
137-95540M DECAL, SIDE (FRENCH)DECAL, SIDE (FRENCH)
-
237-95489M DECAL, TOP (ENGLISH)DECAL, TOP (ENGLISH)
-
237-95503M DECAL, TOP (FRENCH)DECAL, TOP (FRENCH)
-
336-18962M CAP ASSEMBLY, Fuel TankCAP ASSEMBLY, Fuel Tank
-
495541M HOUSING ASSEMBLY, FUEL CONNECTORHOUSING ASSEMBLY, FUEL CONNECTOR
-
512-95501M SEALSEAL
-
610-95502M SCREWSCREW
-
727-95500M GASKET, HOUSING ASS'YGASKET, HOUSING ASS'Y
-
832-877681Q8 LINE ASSEMBLY, FuelLINE ASSEMBLY, Fuel
-
930185Q3 BAYONET ASSEMBLY, FuelBAYONET ASSEMBLY, Fuel
-
1030185Q3 STEM, BAYONET BODYSTEM, BAYONET BODY
-
1125-16524 O-RING, BAYONET BODY STEMO-RING, BAYONET BODY STEM
-
1224-30189 SPRING, BAYONET BODY ASS'YSPRING, BAYONET BODY ASS'Y
-
1330188 WASHER, CAPWASHER, CAP
-
1422-63187 FITTING, Barb (.250-18), FUEL LINEFITTING, Barb (.250-18), FUEL LINE
-
1532-16571M HOSE, FUEL TANK TO PRIMER BULBHOSE, FUEL TANK TO PRIMER BULB
-
1613330Q07 BULBBULB
-
1732-16571M HOSEHOSE
-
1854-16574M CLAMP, HOSECLAMP, HOSE
-
1922-13563Q3 CONNECTOR, Fuel, ENGINE FUEL CONNECTORCONNECTOR, Fuel, ENGINE FUEL CONNECTOR
-
2025-82789M O-RING, ENGINE FUEL CONNECTOR HOUSINGO-RING, ENGINE FUEL CONNECTOR HOUSING
-
218M0121326 CONNECTOR, FUEL LINECONNECTOR, FUEL LINE
-
2212-82214M WASHERWASHER
-
2310-82405M BOLTBOLT
-
2454-82047M CLAMPCLAMP
-
2532-82012M HOSEHOSE
-
2635-80365M FILTER, FUELFILTER, FUEL
-
2732-82012M HOSEHOSE
