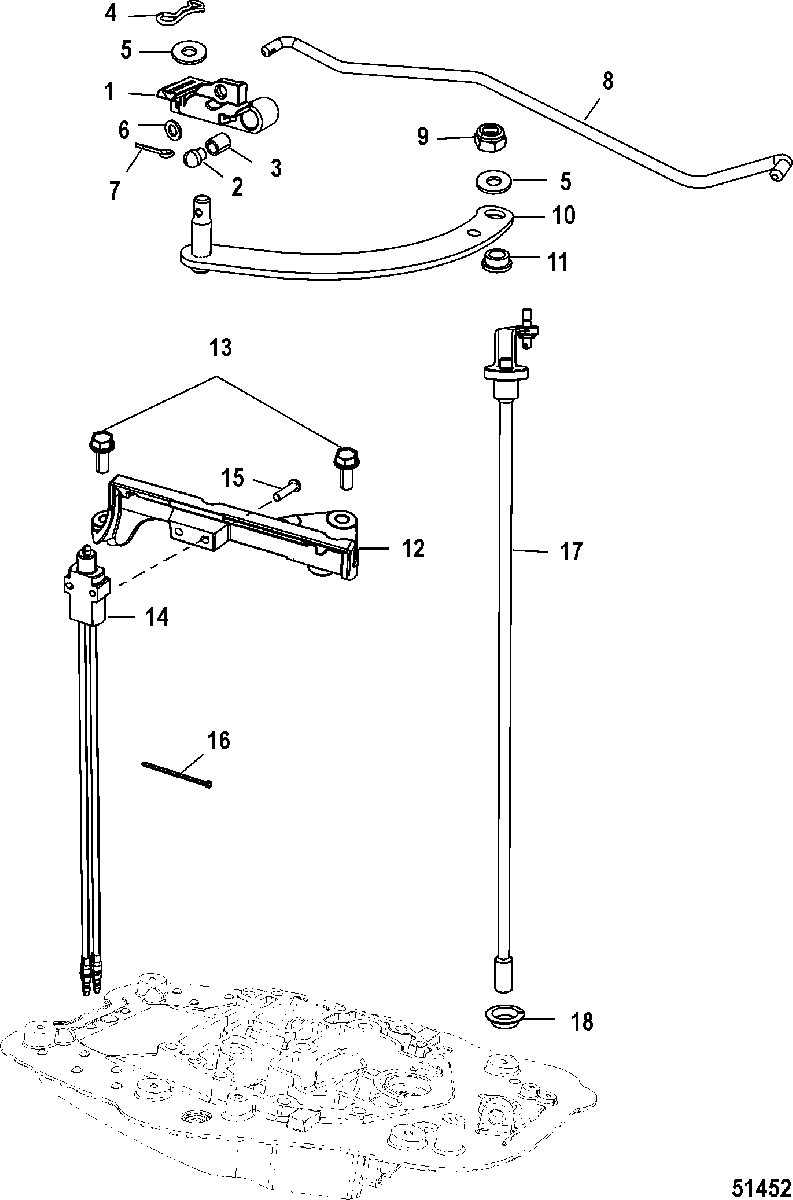

Shift Linkage, Tiller, Design II-No Shift Detent для Mariner - 60 EFI (4 CYL.)(4-STROKE) 0P515897 & Up

  • №
    Артикул
    Название
  • 1
    8M0032129 SLIDE, Shift
    SLIDE, Shift
  • 2
    8M0075211 DETENT/SPRING KIT
    DETENT/SPRING KIT
  • 3
    NSS NOT SOLD SEPARATE, Spring-Compression, Detent
    NOT SOLD SEPARATE, Spring-Compression, Detent
  • 4
    8M0001157 PIN, Bow Tie Clip
    PIN, Bow Tie Clip
  • 5
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 6
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 7
    18-210711 COTTER PIN
    COTTER PIN
  • 8
    8M0005914 ROD, Shift
    ROD, Shift
  • 9
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 10
    8M0007151 LINK, Shift
    LINK, Shift
  • 11
    23-892263 BUSHING
    BUSHING
  • 12
    898289T33 BRACKET
    BRACKET
  • 13
    10-1993720 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 14
    87-8M0052940 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 15
    10-69570 SCREW, (#10-16 x .750)
    SCREW, (#10-16 x .750)
  • 16
    56762 TIE STRAP, (4.00 Inches)
    TIE STRAP, (4.00 Inches)
  • 17
    8M0091612 SHIFT SHAFT, Upper - Long
    SHIFT SHAFT, Upper - Long
  • 18
    23-74647 NYLINER
    NYLINER
  • -
    880093A03 TILLER HANDLE KIT, Remote Control to Tiller Handle
    TILLER HANDLE KIT, Remote Control to Tiller Handle
