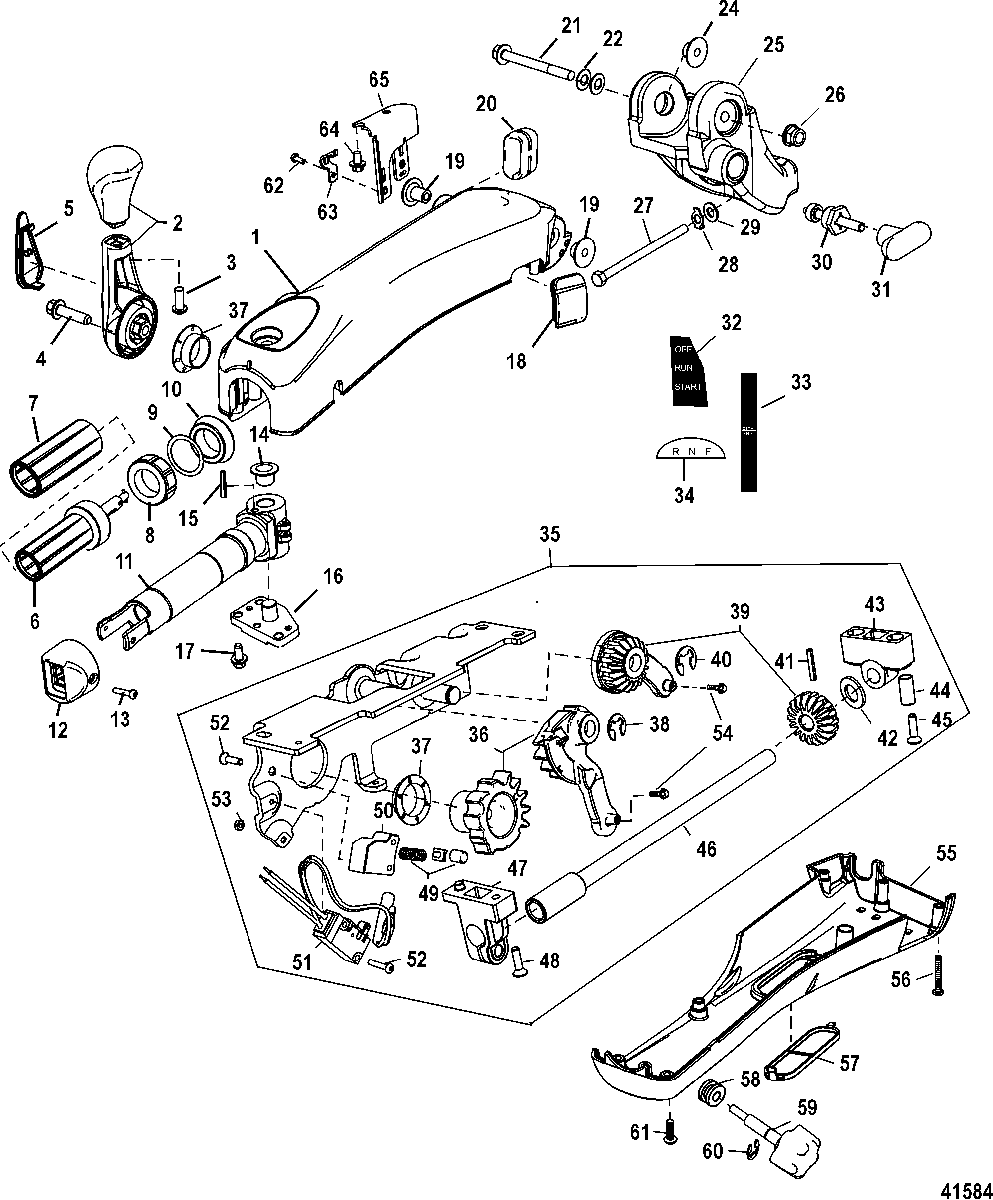

Big Tiller Handle Kit(40-60 EFI FourStroke-Manual) для Mariner - 60 EFI (4 CYL.)(4-STROKE) 0P515897 & Up

№

Артикул

Название
-

879291A04 TILLER HANDLE ASSEMBLY, Big Tiller, 40-60 EFI FourStroke, Manual Mechanical Non Power Steering

TILLER HANDLE ASSEMBLY, Big Tiller, 40-60 EFI FourStroke, Manual Mechanical Non Power Steering
1

879346T02 HOUSING, Steering Handle, Upper

HOUSING, Steering Handle, Upper
-

37-8M0032728 DECAL, Lanyard, Black

DECAL, Lanyard, Black
2

879346A01 SHIFT HANDLE ASSEMBLY

SHIFT HANDLE ASSEMBLY
3

10-83002430 SCREW

SCREW
4

10-8M0103813 SCREW, (M8 x 30)

SCREW, (M8 x 30)
5

879346T15 COVER, Shift Handle-Mercury

COVER, Shift Handle-Mercury
6

879346T05 THROTTLE GRIP ASSEMBLY

THROTTLE GRIP ASSEMBLY
7

879346T06 GRIP, Rubber

GRIP, Rubber
8

11-8M0034107 NUT

NUT
9

12-8M0024573 WASHER

WASHER
10

8M0022037 GROMMET

GROMMET
11

879346T08 CHASSIS, Throttle Grip

CHASSIS, Throttle Grip
12

8M0030401 CAP, Handle Trim Switch

CAP, Handle Trim Switch
13

10-4005685 SCREW, (M4 x 10)

SCREW, (M4 x 10)
14

23-8M0021535 BUSHING

BUSHING
15

17-8M0022764 DOWEL PIN

DOWEL PIN
16

879346T16 BEARING CAP

BEARING CAP
17

10-88552514 SCREW, (M6 x 14 MM) Stainless Steel

SCREW, (M6 x 14 MM) Stainless Steel
18

25-879346T19 GROMMET

GROMMET
19

23-8M0035136 BUSHING

BUSHING
20

8M0045301 GROMMET

GROMMET
21

10-823567105 SCREW, (M10 x 105) Hex Flange - Stainless Steel

SCREW, (M10 x 105) Hex Flange - Stainless Steel
22

12-4002319 WASHER

WASHER
23

12-12024 WASHER, (.402 x .787 x .039 Bellevi)

WASHER, (.402 x .787 x .039 Bellevi)
24

23-8M0031370 BUSHING

BUSHING
25

879346T26 BRACKET

BRACKET
26

11-826292 NUT, (M10) Brass/Nickel Plated

NUT, (M10) Brass/Nickel Plated
27

10-82484890 SCREW, (M10 x 90)

SCREW, (M10 x 90)
28

14-8M0044744 TAB WASHER

TAB WASHER
29

12-4002319 WASHER

WASHER
30

879346T12 TILT LOCK ASSEMBLY

TILT LOCK ASSEMBLY
31

879346T11 HANDLE

HANDLE
32

37-8M0033313 DECAL, On-Off-Start

DECAL, On-Off-Start
33

37-8M0029029 DECAL, Throttle

DECAL, Throttle
34

37-8M0029030 DECAL, R-N-F

DECAL, R-N-F
35

879347T07 GEAR PLATE ASSEMBLY

GEAR PLATE ASSEMBLY
36

879347A04 SHIFT ARM AND GEAR ASSEMBLY

SHIFT ARM AND GEAR ASSEMBLY
37

23-8M0022826 BUSHING

BUSHING
38

53-29641 E RING

E RING
39

879347A05 THROTTLE GEAR ASSEMBLY

THROTTLE GEAR ASSEMBLY
40

53-29641 E RING

E RING
41

17-8M0028305 PIN

PIN
42

15-8M0028540 SHIM, (.005)

SHIM, (.005)
42

15-8M0028541 SHIM, (.010)

SHIM, (.010)
42

15-8M0028542 SHIM, (.020)

SHIM, (.020)
42

15-8M0028543 SHIM, (.040)

SHIM, (.040)
43

23-8M0027443 PILLOW BLOCK

PILLOW BLOCK
44

23-8M0028294 BUSHING

BUSHING
45

10-8M0103808 SCREW, (M6 x 30 MM) Stainless Steel

SCREW, (M6 x 30 MM) Stainless Steel
46

NSS NOT SOLD SEPARATE, Throttle Shaft

NOT SOLD SEPARATE, Throttle Shaft
47

8M4501323 BLOCK, Friction

BLOCK, Friction
48

10-8M0031550 SCREW, (M4 x 0.7 x 16)

SCREW, (M4 x 0.7 x 16)
49

879347A08 SPRING AND GUIDE KIT

SPRING AND GUIDE KIT
50

8M0028323 RETAINER

RETAINER
51

84-879347T06 SWITCH, Neutral

SWITCH, Neutral
52

10-8M0034874 SCREW, (M3 x 0.5)

SCREW, (M3 x 0.5)
53

11-8M0034875 NUT, (M3 x 0.5 Hex)

NUT, (M3 x 0.5 Hex)
54

10-8M0085515 SCREW, (#8-32 x .375), Not included in Gear Plate Assembly

SCREW, (#8-32 x .375), Not included in Gear Plate Assembly
55

879346T04 COVER, Steering Handle, Lower

COVER, Steering Handle, Lower
56

10-4001991 SCREW, (M4 x 35)

SCREW, (M4 x 35)
57

879346T10 COVER, Switch/Light

COVER, Switch/Light
58

25-828249 GROMMET

GROMMET
59

879346A03 THROTTLE FRICTION KNOB ASSEMBLY

THROTTLE FRICTION KNOB ASSEMBLY
60

53-29641 E RING

E RING
61

10-4001987 SCREW, (M4 x 16)

SCREW, (M4 x 16)
62

10-8M0085515 SCREW, (#8-32 x .375)

SCREW, (#8-32 x .375)
63

8M0028230 RETAINER

RETAINER
64

10-82130010 SCREW, (M6 x 10)

SCREW, (M6 x 10)
65

879346T17 BRACKET, Shift Mount

BRACKET, Shift Mount
NS

90-899984003 INSTALLATION MANUAL, Big Tiller, Manual

INSTALLATION MANUAL, Big Tiller, Manual
NS

90-8M0063659 OPERATION MANUAL, Big Tiller -Manual, Mechanical and DTS

OPERATION MANUAL, Big Tiller -Manual, Mechanical and DTS
