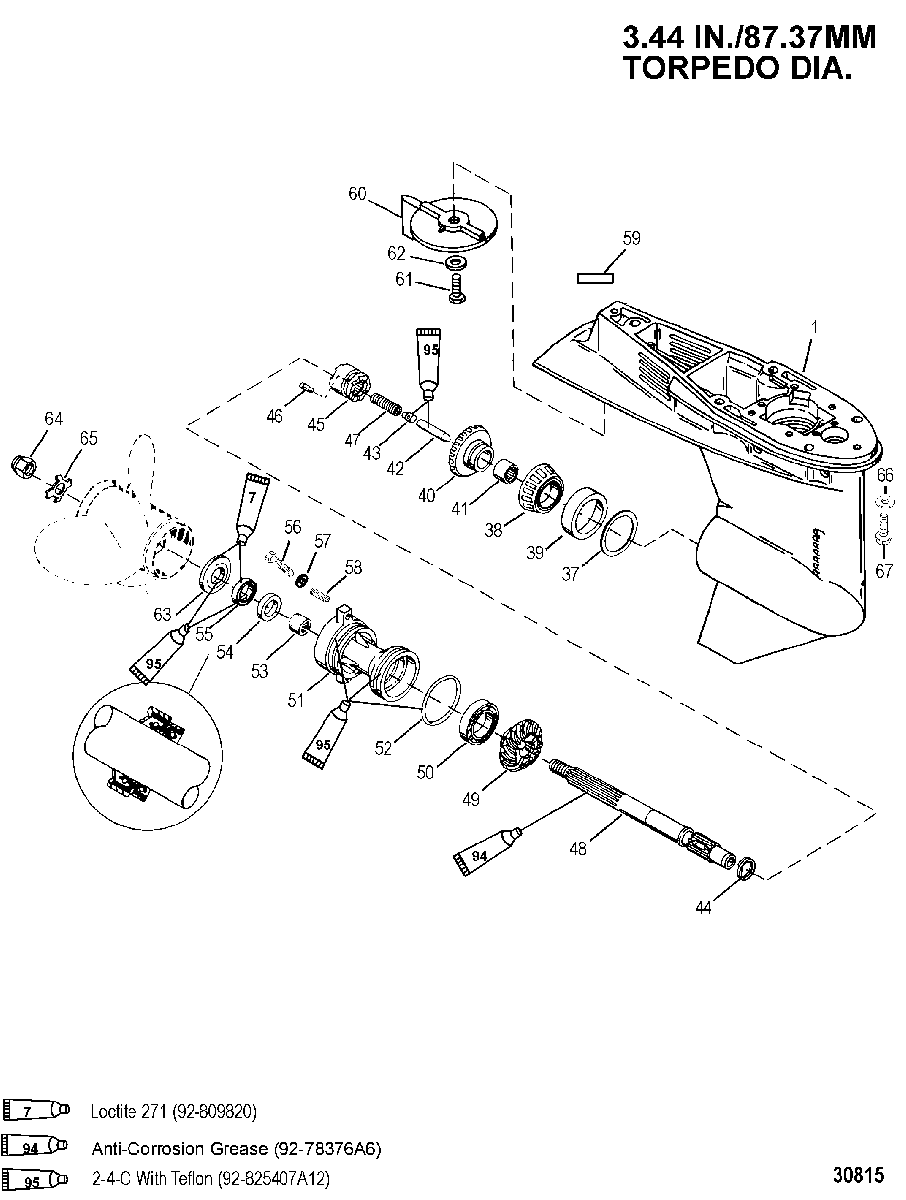

GEAR HOUSING(PROP SHAFT)(1.83:1 GEAR RATIO) для Mariner - 60 (4-STROKE)(4 CYL.) 0T178500 THRU 0T598999
-
№АртикулНазвание
-
-1671-9760T41 GEAR HOUSING ASSEMBLY, Complete (3.44 Inch/87.37 mm Torpedo Diameter)GEAR HOUSING ASSEMBLY, Complete (3.44 Inch/87.37 mm Torpedo Diameter)
-
11671-9760T42 GEAR HOUSING ASSEMBLY, BasicGEAR HOUSING ASSEMBLY, Basic
-
3715-8M0063263 SHIM SETSHIM SET
-
3831-8M0103476 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
39NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
4043-859101T2 GEAR, Forward - 22 TeethGEAR, Forward - 22 Teeth
-
4131-21739 BEARING, RollerBEARING, Roller
-
428129291 FOLLOWER, CamFOLLOWER, Cam
-
4320843 SLIDESLIDE
-
4424-38114 SPRINGSPRING
-
4552-813697T CLUTCHCLUTCH
-
4617-8M0020942 PIN, CrossPIN, Cross
-
4724-815418 SPRINGSPRING
-
4844-14493 PROPELLER SHAFTPROPELLER SHAFT
-
4943-859104T GEAR, Reverse - 22 TeethGEAR, Reverse - 22 Teeth
-
5030-20839T BEARING, BallBEARING, Ball
-
5119291A3 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
5225-815460 O-RINGO-RING
-
5331-21700 BEARING, NeedleBEARING, Needle
-
5426-69188 SEAL, OilSEAL, Oil
-
5526-69189 SEAL, OilSEAL, Oil
-
5610-85594030 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
5712-855941 WASHER, (.323 x .590 x .112) Stainless SteelWASHER, (.323 x .590 x .112) Stainless Steel
-
588227731 INSERT, ThreadedINSERT, Threaded
-
59NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
6017264T2 TRIM TAB, ZincTRIM TAB, Zinc
-
6110-4000377 SCREW, (M10 x 30)SCREW, (M10 x 30)
-
6212-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
-
6373345A1 THRUST HUBTHRUST HUB
-
6411-69578Q1 PROP NUT KITPROP NUT KIT
-
6514-76281 TAB WASHERTAB WASHER
-
6612-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
-
6710-4000380 SCREW, (M10 x 45)SCREW, (M10 x 45)
-
-26-814669A2 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
