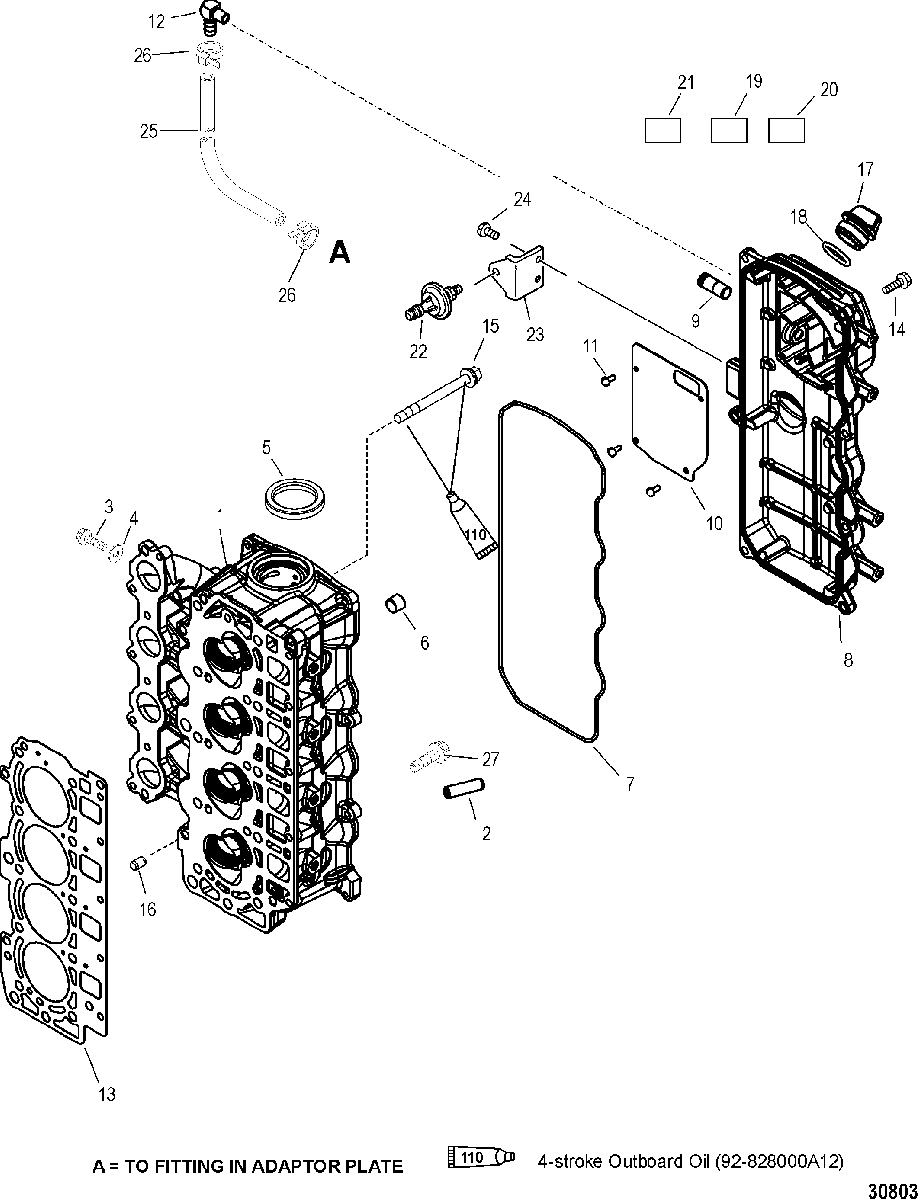

CYLINDER HEAD для Mariner - 60 (4-STROKE)(4 CYL.) 0T178500 THRU 0T598999

  • №
    Артикул
    Название
  • -
    893505T01 CYLINDER HEAD ASSEMBLY
    CYLINDER HEAD ASSEMBLY
  • 1
    893505T06 CYLINDER HEAD ASSEMBLY
    CYLINDER HEAD ASSEMBLY
  • 2
    858266 GUIDE
    GUIDE
  • 3
    10-4000325 SCREW, (M6 x 8)
    SCREW, (M6 x 8)
  • 4
    12-859768 WASHER
    WASHER
  • 5
    26-893549 SEAL, Oil
    SEAL, Oil
  • 6
    22-875209 PIPE PLUG
    PIPE PLUG
  • 7
    25-8M0011870 SEAL
    SEAL
  • 8
    893694T02 COVER
    COVER
  • 9
    NSS NOT SOLD SEPARATE
    NOT SOLD SEPARATE
  • 10
    858277 PLATE, Baffle
    PLATE, Baffle
  • 11
    10-4005685 SCREW, (M4 x 10)
    SCREW, (M4 x 10)
  • 12
    22-629101 FITTING, Elbow - 90 Degree (.125-27)
    FITTING, Elbow - 90 Degree (.125-27)
  • 13
    27-8M0118179 GASKET
    GASKET
  • 14
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 15
    10-82503395 SCREW, (M9 x 95)
    SCREW, (M9 x 95)
  • 16
    17-825010 PIN, Dowel
    PIN, Dowel
  • 17
    859578A1 PLUG ASSEMBLY, Oil
    PLUG ASSEMBLY, Oil
  • 18
    25-90196 O-RING, (.921 x .139)
    O-RING, (.921 x .139)
  • 19
    NSS NOT SOLD SEPARATE, Decal
    NOT SOLD SEPARATE, Decal
  • 20
    NSS NOT SOLD SEPARATE, Decal
    NOT SOLD SEPARATE, Decal
  • 21
    NSS NOT SOLD SEPARATE, POWERHEAD ID
    NOT SOLD SEPARATE, POWERHEAD ID
  • 22
    826060 DIAPHRAGM
    DIAPHRAGM
  • 23
    877844 DASHPOT
    (NON HANDLE)
    DASHPOT
    (NON HANDLE)
  • 24
    10-40011126 SCREW, (M6 x 13) Stainless Steel
    SCREW, (M6 x 13) Stainless Steel
  • 25
    32-77653101 HOSE, (48.00 Inches Bulk) (Cut to 19 IN.)
    HOSE, (48.00 Inches Bulk) (Cut to 19 IN.)
  • 26
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 27
    10-893745025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • -
    61-893678T03 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
  • -
    27-859352A01 GASKET SET
    GASKET SET
  • -
    893505T01 CYLINDER HEAD ASSEMBLY
    CYLINDER HEAD ASSEMBLY
