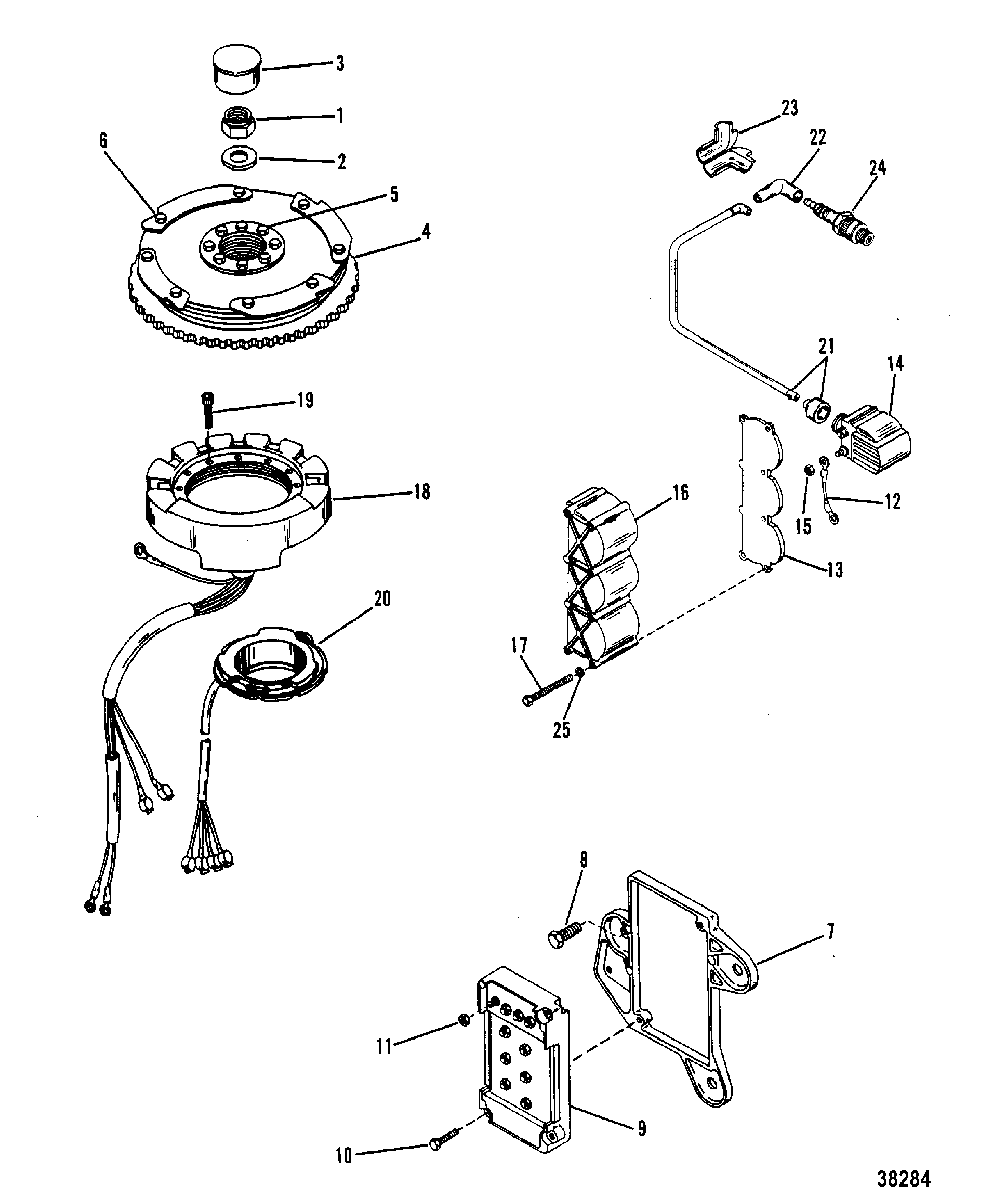

FLYWHEEL, SWITCH BOX, IGNITION COIL, STATOR для Mariner - 60 (3 CYL.) 9385911 THRU 9469199
-
№АртикулНазвание
-
111-52901 NUT, (.625-18), FLYWHEELNUT, (.625-18), FLYWHEEL
-
212-33001 WASHER, (.641 x 1.250 x .190), FLYWHEEL NUTWASHER, (.641 x 1.250 x .190), FLYWHEEL NUT
-
319-45907 PLUG, Yellow, FLYWHEEL PULLER THREADSPLUG, Yellow, FLYWHEEL PULLER THREADS
-
4248-8722A5 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
510-68997 SCREW, (.312-24 x .750), PLATE/HUBSCREW, (.312-24 x .750), PLATE/HUB
-
610-32417 SCREW, (.250-28 x .625), FLEXIBLE PLATE TO FLYWHEELSCREW, (.250-28 x .625), FLEXIBLE PLATE TO FLYWHEEL
-
7889351 PLATE, SWITCH BOXPLATE, SWITCH BOX
-
810-824941 SCREW, (.312-18 x .750), SWITCH BOX PLATESCREW, (.312-18 x .750), SWITCH BOX PLATE
-
9332-7778A12 SWITCHBOX ASSEMBLYSWITCHBOX ASSEMBLY
-
1010-12463 SCREW, (.216-24 x .81), SWITCH BOX TO PLATESCREW, (.216-24 x .81), SWITCH BOX TO PLATE
-
1111-45076 NUT, (#10-32) Brass, SWITCH BOX TERMINALNUT, (#10-32) Brass, SWITCH BOX TERMINAL
-
1284-60443A3 WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN)WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN)
-
1284-62822A1 WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN/WHITE)WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN/WHITE)
-
1284-68896A4 WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN/RED)WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN/RED)
-
1284-88807A9 CABLE ASSEMBLY, SWITCH BOX TO COIL (BLACK)CABLE ASSEMBLY, SWITCH BOX TO COIL (BLACK)
-
1373439 PLATE, MOUNTING - IGNITION COILPLATE, MOUNTING - IGNITION COIL
-
14339-832757A4 COIL ASSEMBLY, IgnitionCOIL ASSEMBLY, Ignition
-
1511-45076 NUT, (#10-32) Brass, IGNITION COIL TERMINALNUT, (#10-32) Brass, IGNITION COIL TERMINAL
-
1643542 COVER, IGNITION COILCOVER, IGNITION COIL
-
1710-92399 SCREW, (.190-32 x 2.250), COVER TO MOUNTING PLATESCREW, (.190-32 x 2.250), COVER TO MOUNTING PLATE
-
18398-5704A7 STATOR ASSEMBLYSTATOR ASSEMBLY
-
1910-63136 SCREW, (#10-24 x .880), STATOR TO UPPER END CAPSCREW, (#10-24 x .880), STATOR TO UPPER END CAP
-
2096455A8 PLATE ASSEMBLY, TriggerPLATE ASSEMBLY, Trigger
-
2184-813715A1 LEAD ASSEMBLY, SPARK PLUGLEAD ASSEMBLY, SPARK PLUG
-
2285-63709A1 BOOT/TERMINAL KITBOOT/TERMINAL KIT
-
2399213 SHEEL, SPARK PLUG BOOTSHEEL, SPARK PLUG BOOT
-
2433-97180Q SPARK PLUG (NGK-BUHW)SPARK PLUG (NGK-BUHW)
-
2433-14103550 SPARK PLUG
(CHAMPION#QL-76V)/CANADA AND BELGIUMSPARK PLUG
(CHAMPION#QL-76V)/CANADA AND BELGIUM -
2512-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, COIL COVER SCREWWASHER, (.192 x .375 x .0312) Stainless Steel, COIL COVER SCREW
