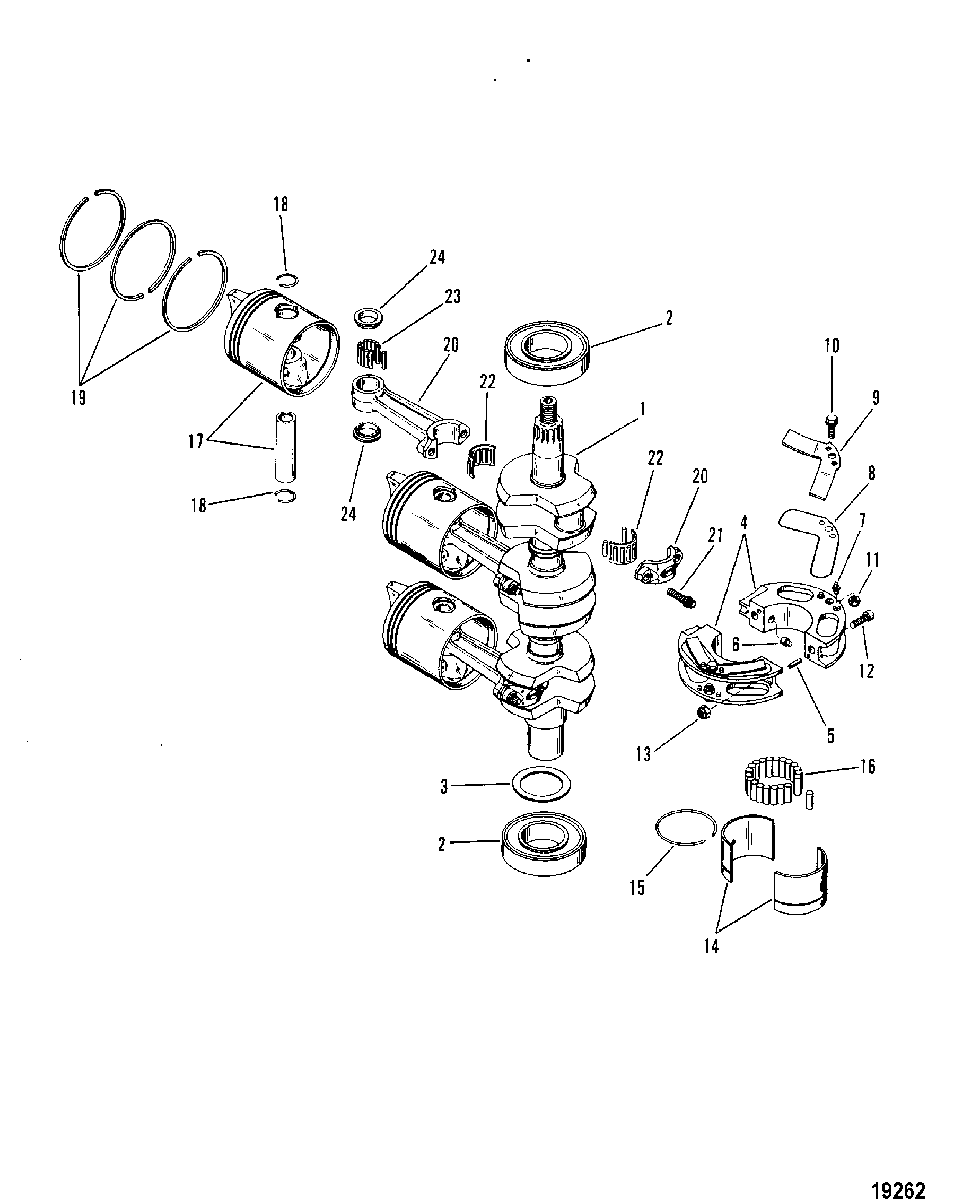

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mariner - 60 (3 CYL.) 9385911 THRU 9469199
-
№АртикулНазвание
-
1462-8839A2 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
230-64424T BEARING, BALL - LOWER AND UPPERBEARING, BALL - LOWER AND UPPER
-
315-22369A1 SHIM SET, LOWER BEARING TO CRANKSHAFTSHIM SET, LOWER BEARING TO CRANKSHAFT
-
4542-7509A3 BEARING ASSEMBLY, Main (VALVE TYPE)BEARING ASSEMBLY, Main (VALVE TYPE)
-
517-20032 PIN, Dowel, MAIN BEARINGPIN, Dowel, MAIN BEARING
-
617-60282 PIN, Dowel (STEPPED)PIN, Dowel (STEPPED)
-
717-65855 PIN, Dowel, REED STOPPIN, Dowel, REED STOP
-
834-66051A1 REED SET, MATCHED - MAIN BEARINGREED SET, MATCHED - MAIN BEARING
-
934-65946 STOP, ReedSTOP, Reed
-
1010-77280 SCREW, (.190-32 x .560), REED STOP MOUNTINGSCREW, (.190-32 x .560), REED STOP MOUNTING
-
1111-20110 NUT, (#10-32), REED STOP MOUNTING SCREWNUT, (#10-32), REED STOP MOUNTING SCREW
-
1210-45775 SCREW, (#12-28 x .560) , MAIN BEARING CLAMPINGSCREW, (#12-28 x .560) , MAIN BEARING CLAMPING
-
1311-45774 NUT, MAIN BEARING SCREW CLAMPINGNUT, MAIN BEARING SCREW CLAMPING
-
1426113T RACE, OUTER (PAIR)RACE, OUTER (PAIR)
-
1553-26933 RING, Snap, OUTER RACE CLAMPINGRING, Snap, OUTER RACE CLAMPING
-
1629-714221 BEARING, NeedleBEARING, Needle
-
17774-9137A9 PISTON ASSEMBLY (STD.)
(50)PISTON ASSEMBLY (STD.)
(50) -
17774-9137A12 PISTON ASSEMBLY (STD.)
(60)PISTON ASSEMBLY (STD.)
(60) -
17774-9137A10 PISTON ASSEMBLY (.015 O.S.)
(50)PISTON ASSEMBLY (.015 O.S.)
(50) -
17774-9137A13 PISTON ASSEMBLY (.015 O.S.)
(60)PISTON ASSEMBLY (.015 O.S.)
(60) -
17774-9137A11 PISTON ASSEMBLY (.030 O.S.)
(50)PISTON ASSEMBLY (.030 O.S.)
(50) -
17774-9137A14 PISTON ASSEMBLY (.030 O.S.)
(60)PISTON ASSEMBLY (.030 O.S.)
(60) -
1853-857196 RING, Lock, PISTON PINRING, Lock, PISTON PIN
-
1939-78816A12 RING, PISTON (STANDARD)RING, PISTON (STANDARD)
-
1939-78811A12 RING SET, Piston - .015 OversizeRING SET, Piston - .015 Oversize
-
1939-88392A12 RING SET, Piston - .030 OversizeRING SET, Piston - .030 Oversize
-
20624-8101A3 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
2110-91012 SCREW, (.250-28 Special), CAP TO CONNECTING ROD - W/O NUTSCREW, (.250-28 Special), CAP TO CONNECTING ROD - W/O NUT
-
2231-62596A1 BEARING ASSEMBLYBEARING ASSEMBLY
-
2329-47270 BEARING, NEEDLE - PISTON PINBEARING, NEEDLE - PISTON PIN
-
2412-8M0032839 WASHER, NEEDLE LOCATINGWASHER, NEEDLE LOCATING
