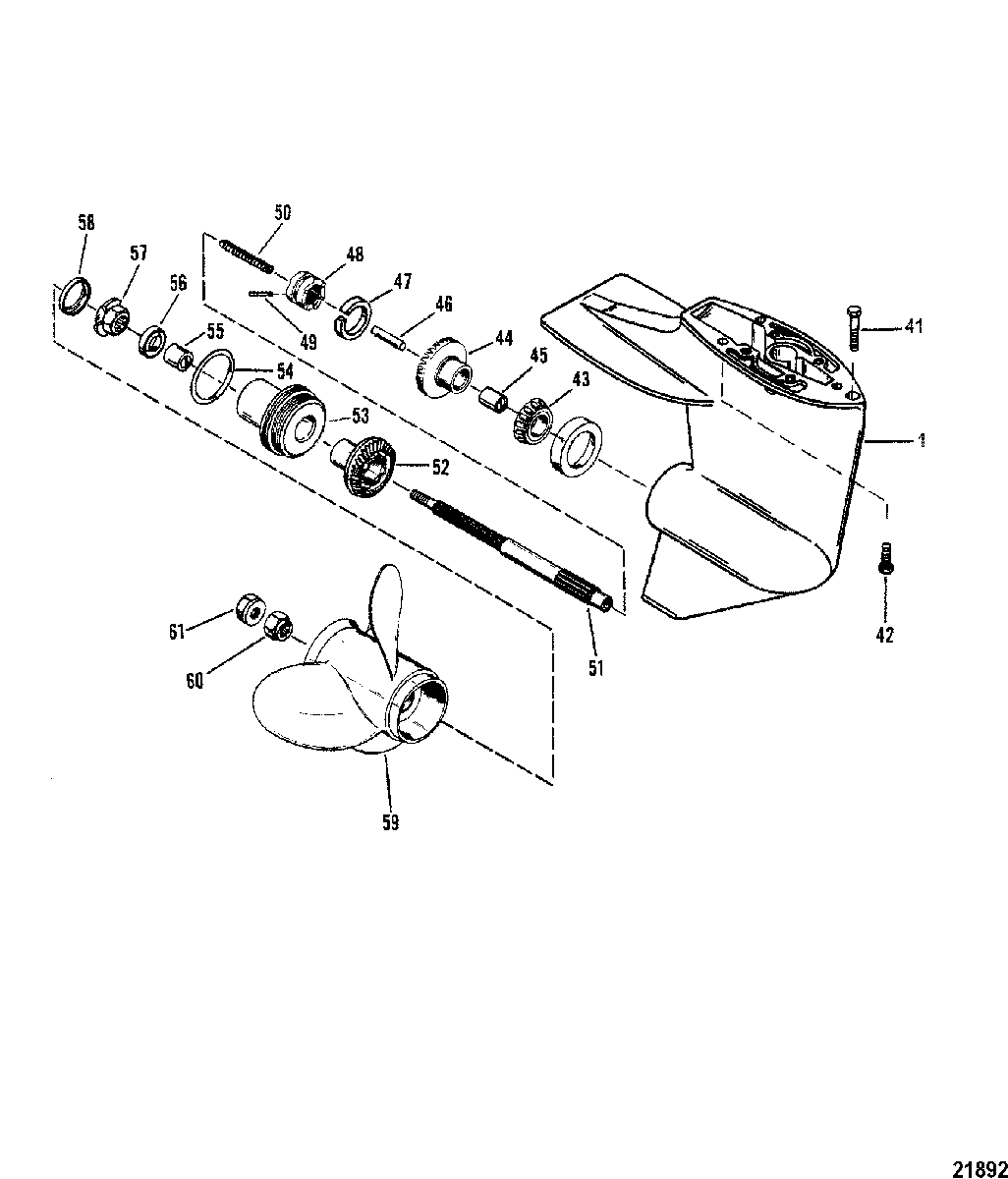

Gear Hsg(Propshaft-Design I-Refer to Driveshaft Drawing) для Mariner - 6 9461526 THRU 9792199
-
№АртикулНазвание
-
-1666-8833T13 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT) (BLACK)GEAR HOUSING ASSEMBLY, COMPLETE (SHORT) (BLACK)
-
-1666-8833T15 GEAR HOUSING ASSEMBLY, COMPLETE (LONG) (BLACK)GEAR HOUSING ASSEMBLY, COMPLETE (LONG) (BLACK)
-
-1666-8833T14 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT) (GRAY)GEAR HOUSING ASSEMBLY, COMPLETE (SHORT) (GRAY)
-
-1666-8833T15 GEAR HOUSING ASSEMBLY, COMPLETE (LONG) (GRAY)GEAR HOUSING ASSEMBLY, COMPLETE (LONG) (GRAY)
-
11666-8833A1 GEAR HOUSING ASSEMBLY (BLACK)GEAR HOUSING ASSEMBLY (BLACK)
-
11666-8833A4 GEAR HOUSING ASSEMBLY (GRAY)GEAR HOUSING ASSEMBLY (GRAY)
-
4110-82407110 SCREWSCREW
-
4210-8240717 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
4331-821321A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
4443-41371A1 GEAR ASSEMBLY, ForwardGEAR ASSEMBLY, Forward
-
4523-41367 BUSHINGBUSHING
-
46813139 FOLLOWER, CamFOLLOWER, Cam
-
4753-32449 RING, RetainingRING, Retaining
-
4852-43217 CLUTCHCLUTCH
-
4917-30535 PIN, CrossPIN, Cross
-
5024-42204 SPRINGSPRING
-
5144-41370 PROPELLER SHAFTPROPELLER SHAFT
-
5243-44115T GEAR, ReverseGEAR, Reverse
-
5342144T2 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
5425-33145 O-RING, (1.984 x .139)O-RING, (1.984 x .139)
-
5523-41368 BUSHINGBUSHING
-
5626-66022 SEAL, OilSEAL, Oil
-
5742037 THRUST HUBTHRUST HUB
-
5842201 CAPCAP
-
5948-828156A12 PROPELLER (9" X 9")PROPELLER (9" X 9")
-
5948-828158A12 PROPELLER (9" X 10-1/2")PROPELLER (9" X 10-1/2")
-
5948-828150A12 PROPELLER (SAILPOWER)PROPELLER (SAILPOWER)
-
6023-420911 SPACERSPACER
-
6111-40140 NUT, (M10)NUT, (M10)
-
-27-42364A92 GASKET SET, EngineGASKET SET, Engine
-
-26-41365A3 SEAL KITSEAL KIT
