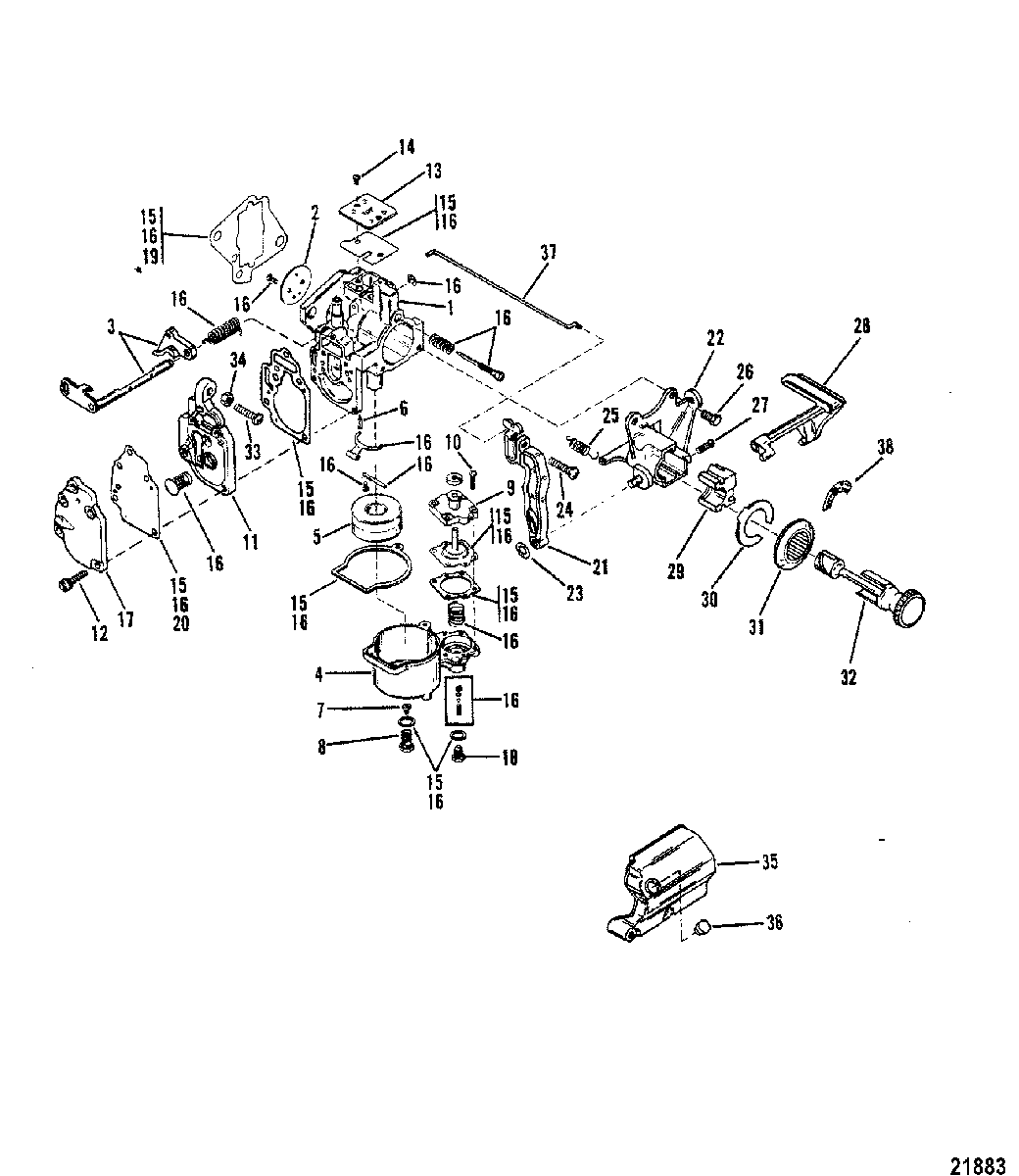

CARBURETOR ASSEMBLY(15) для Mariner - 6 9461526 THRU 9792199
-
№АртикулНазвание
-
11392-9726T19 CARBURETOR (WMC-39)CARBURETOR (WMC-39)
-
219268 VALVE, Throttle (WMC-28)VALVE, Throttle (WMC-28)
-
21395-823716 VALVE, Throttle (WMC-39)VALVE, Throttle (WMC-39)
-
319267 SHAFT, Throttle (INCLS.SCREW & SPRING)SHAFT, Throttle (INCLS.SCREW & SPRING)
-
41395-9164 BOWL, FuelBOWL, Fuel
-
51395-91691 FLOATFLOAT
-
61395-803861 VALVEVALVE
-
71399-4215 JET, Main Fuel (.066)JET, Main Fuel (.066)
-
81395-9171 PLUG, JET RETAINERPLUG, JET RETAINER
-
9813618 COVER, DIAPHRAGMCOVER, DIAPHRAGM
-
101395-9697 SCREW, DIAPHRAGM COVERSCREW, DIAPHRAGM COVER
-
111395-9702 BODYBODY
-
121395-9643 SCREW, FUEL PUMP COVERSCREW, FUEL PUMP COVER
-
131395-9699 PLATE, COVERPLATE, COVER
-
141395-9696 SCREW, COVER PLATESCREW, COVER PLATE
-
151395-97611 GASKET/DIAPHRAGM KITGASKET/DIAPHRAGM KIT
-
161395-8237072 REPAIR PARTS KITREPAIR PARTS KIT
-
171395-9637 COVER, FUEL PUMPCOVER, FUEL PUMP
-
181395-9762 PLUGPLUG
-
1927-192061 GASKET, CarburetorGASKET, Carburetor
-
201395-9635 DIAPHRAGM/GASKETDIAPHRAGM/GASKET
-
21128053 LEVER, Fast IdleLEVER, Fast Idle
-
2212803 BRACKET, PrimerBRACKET, Primer
-
2311-821979 PUSH NUTPUSH NUT
-
2410-12110 SCREW, (#6-32 x .750)SCREW, (#6-32 x .750)
-
2524-11277 SPRING, TensionSPRING, Tension
-
2610-40056110 SCREW, (M5 x 30)SCREW, (M5 x 30)
-
2610-400018 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
2710-79965 SCREW, (#8-32 x .500) Stainless SteelSCREW, (#8-32 x .500) Stainless Steel
-
28112731 LEVER, PrimerLEVER, Primer
-
2911280 CAM BLOCKCAM BLOCK
-
3053-11278 CLIP, RetainingCLIP, Retaining
-
3112804A1 BEZEL ASSEMBLY, ChokeBEZEL ASSEMBLY, Choke
-
32128022 PRIMER KNOBPRIMER KNOB
-
3310-40056110 SCREW, (M5 x 30)SCREW, (M5 x 30)
-
3411-400211 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
3517442 COVERCOVER
-
3619-47579 PLUGPLUG
-
37445541 IDLE WIREIDLE WIRE
-
3837-129701 DECAL (SLOW/FAST)DECAL (SLOW/FAST)
