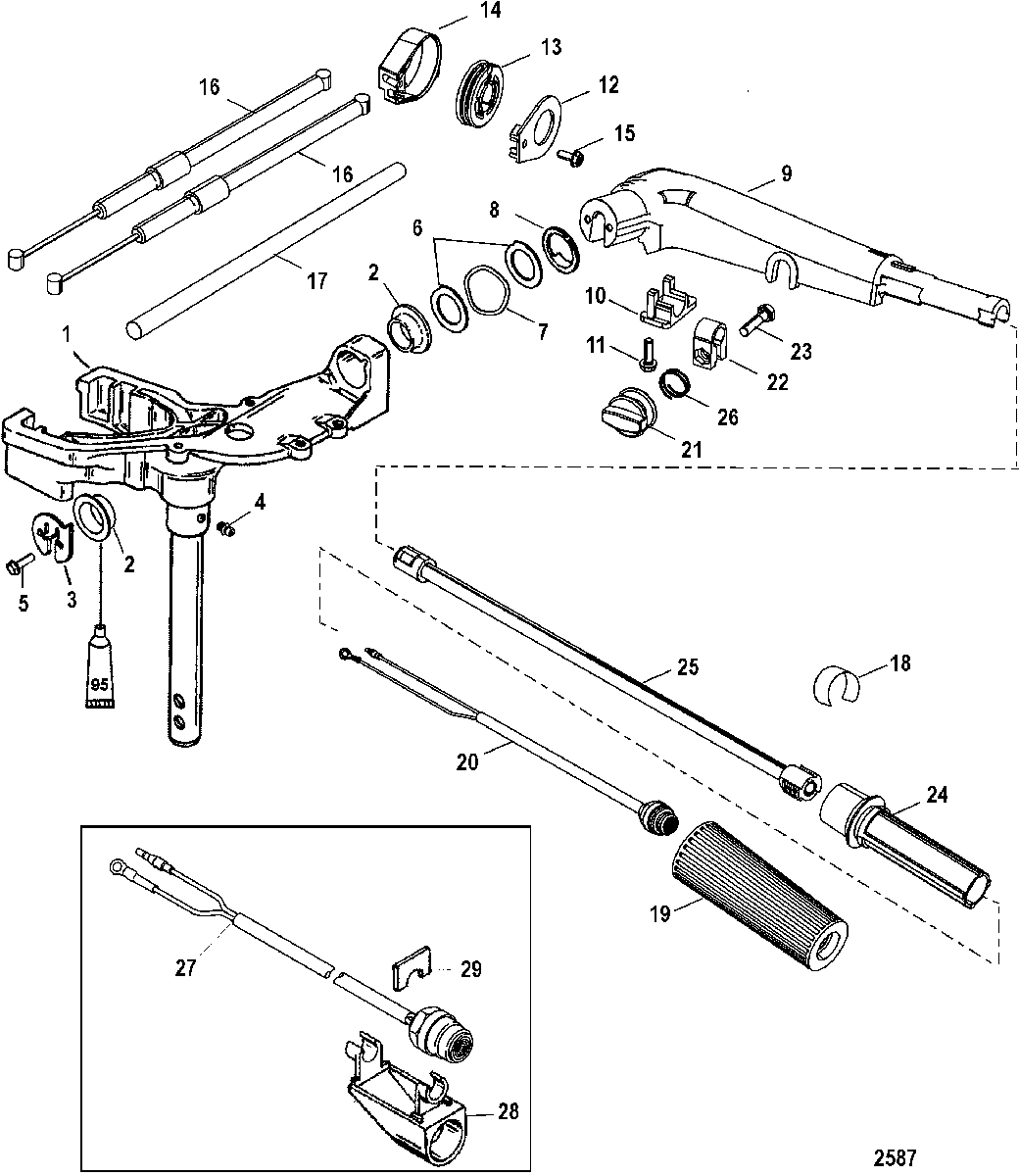

Swivel Head and Steering Handle для Mariner - 6 0P325500 & Up

  • №
    Артикул
    Название
  • 1
    42213A24 SWIVEL HEAD
    (Black)
    SWIVEL HEAD
    (Black)
  • 2
    23-823939 BUSHING
    BUSHING
  • 3
    8221471 PLATE
    PLATE
  • 4
    22-74036 FITTING, Grease
    FITTING, Grease
  • 5
    10-4010516 SCREW, (M5 x 16) Stainless Steel
    SCREW, (M5 x 16) Stainless Steel
  • 6
    12-822145 WASHER
    WASHER
  • 7
    13-826792 WAVE WASHER
    WAVE WASHER
  • 8
    12-822146 WASHER
    WASHER
  • 9
    821468A66 ARM ASSEMBLY, Steering Handle
    (Black)
    ARM ASSEMBLY, Steering Handle
    (Black)
  • 10
    822441 RETAINER
    RETAINER
  • 11
    10-40011107 SCREW, (M5 x 16) Stainless Steel
    SCREW, (M5 x 16) Stainless Steel
  • 12
    822148A3 COVER KIT
    COVER KIT
  • 13
    822150 PULLEY
    PULLEY
  • 14
    NSS NOT SOLD SEPARATE, Pulley Case
    NOT SOLD SEPARATE, Pulley Case
  • 15
    10-878608 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 16
    43242T18 CABLE, Throttle
    CABLE, Throttle
  • 17
    85-9600910 SLEEVE
    SLEEVE
  • 18
    37-8242002 DECAL
    DECAL
  • 19
    99589003 GRIP
    GRIP
  • 20
    87-8M0104615 SWITCH ASSEMBLY, Stop
    SWITCH ASSEMBLY, Stop
  • 21
    821972T KNOB, Throttle
    KNOB, Throttle
  • 22
    892995 LOCK, Throttle
    LOCK, Throttle
  • 23
    10-4000330 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 24
    822429 HANDLE, Throttle
    HANDLE, Throttle
  • 25
    821463T01 TILLER TUBE
    TILLER TUBE
  • 26
    24-96203 SPRING
    SPRING
  • 27
    87-823609A18 SWITCH ASSEMBLY, Start/Stop
    (Electric Handle)
    SWITCH ASSEMBLY, Start/Stop
    (Electric Handle)
  • 28
    889734 HOUSING, Switch
    (Electric Handle)
    HOUSING, Switch
    (Electric Handle)
  • 29
    824918 CLIP
    (Electric Handle)
    CLIP
    (Electric Handle)
