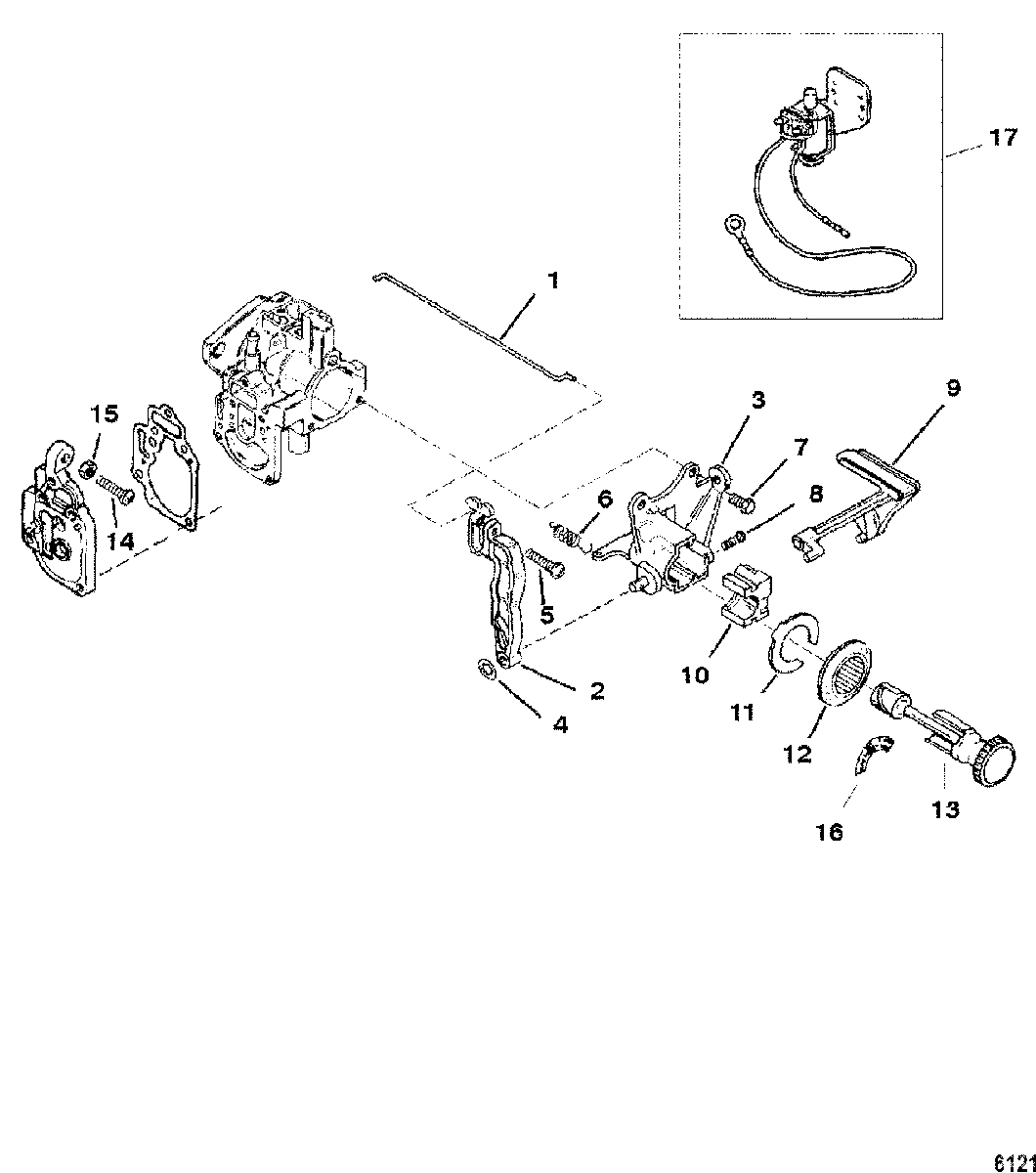

Carburetor Linkage для Mariner - 6 0P325500 & Up

  • №
    Артикул
    Название
  • 1
    445541 IDLE WIRE
    IDLE WIRE
  • 2
    128053 LEVER, Fast Idle
    LEVER, Fast Idle
  • 3
    12803 BRACKET, Primer
    BRACKET, Primer
  • 4
    11-821979 NUT
    NUT
  • 5
    10-12110 SCREW, (#6-32 x .750)
    SCREW, (#6-32 x .750)
  • 6
    24-11277 SPRING, Tension
    SPRING, Tension
  • 7
    10-400018 SCREW, (M5 x 12)
    SCREW, (M5 x 12)
  • 8
    10-79965 SCREW, (#8-32 x .500) Stainless Steel
    SCREW, (#8-32 x .500) Stainless Steel
  • 9
    112731 LEVER, Primer
    LEVER, Primer
  • 10
    11280 CAM BLOCK
    CAM BLOCK
  • 11
    53-11278 CLIP, Retaining
    CLIP, Retaining
  • 12
    12804A1 BEZEL ASSEMBLY, Choke
    BEZEL ASSEMBLY, Choke
  • 13
    128022 PRIMER KNOB
    PRIMER KNOB
  • 14
    10-40019111 SCREW, (M5 x 35)
    SCREW, (M5 x 35)
  • 15
    11-400211 NUT, (M5) Stainless Steel
    NUT, (M5) Stainless Steel
  • 16
    37-129701 DECAL, Bezel Choke
    DECAL, Bezel Choke
  • 17
    1395-823433 CHOKE, Electric
    CHOKE, Electric
  • -
    27-42364A92 GASKET SET, Engine
    GASKET SET, Engine
