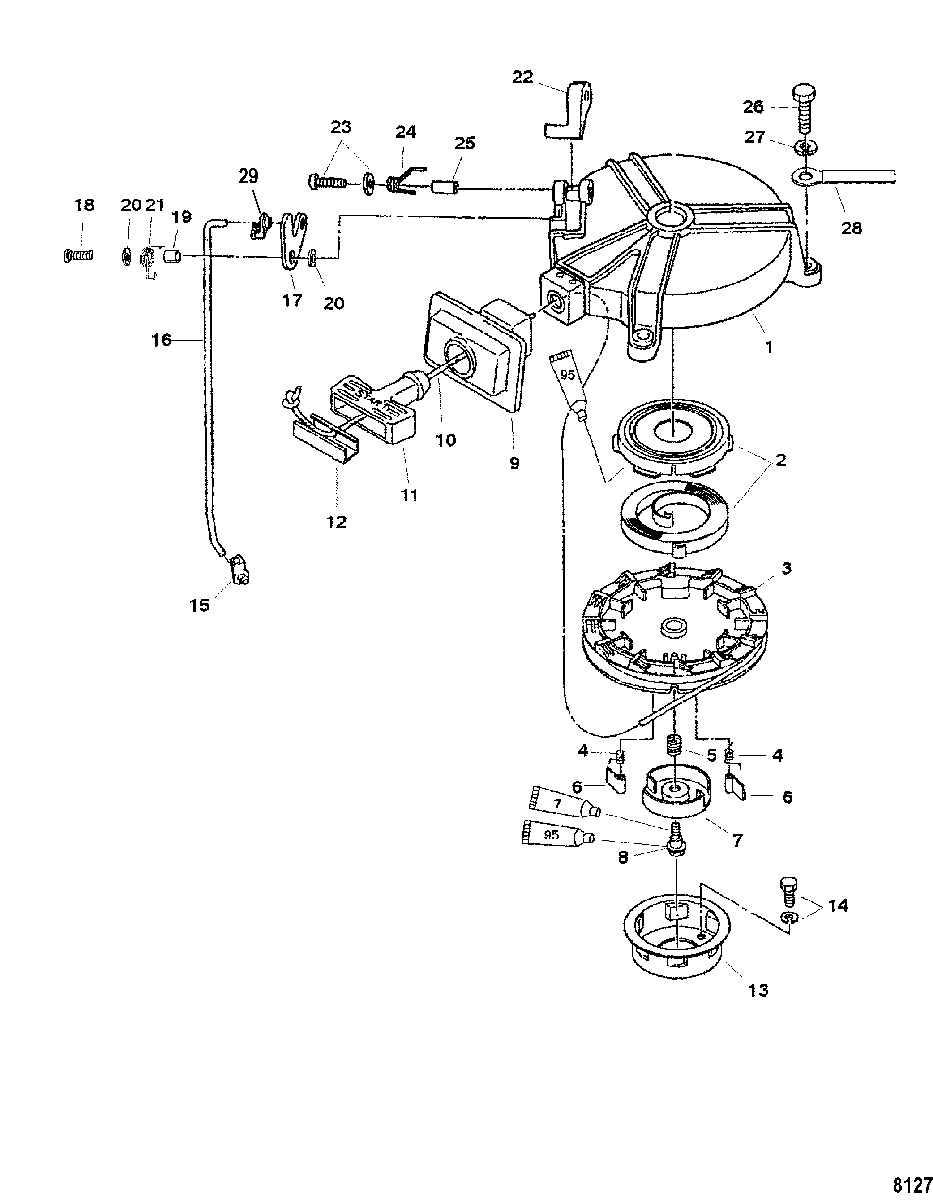

Recoil Starter для Mariner - 6 (4-STROKE) 0R000001 THRU 0R067089

  • №
    Артикул
    Название
  • -
    803576T02 STARTER ASSEMBLY, Recoil
    SN# 0R051739 & Below
    STARTER ASSEMBLY, Recoil
    SN# 0R051739 & Below
  • -
    803576T02 STARTER ASSEMBLY, Recoil
    SN# 0R051740 & Up
    STARTER ASSEMBLY, Recoil
    SN# 0R051740 & Up
  • 1
    812632002 HOUSING, Starter
    SN# 0R051739 & Below
    HOUSING, Starter
    SN# 0R051739 & Below
  • 1
    812632002 HOUSING, Starter
    SN# 0R051740 & Up
    HOUSING, Starter
    SN# 0R051740 & Up
  • 2
    24-812645T SPRING SET, Starter
    SN# 0R051739 & Below
    SPRING SET, Starter
    SN# 0R051739 & Below
  • 2
    24-812645T10 SPRING SET, Starter
    SN# 0R051740 & Up
    SPRING SET, Starter
    SN# 0R051740 & Up
  • 3
    812633 SHEEVE, Starter
    SN# 0R051739 & Below
    SHEEVE, Starter
    SN# 0R051739 & Below
  • 3
    812633002 SHEEVE, Starter
    SN# 0R051740 & Up
    SHEEVE, Starter
    SN# 0R051740 & Up
  • 4
    24-8035543 SPRING, Return
    SN# 0R051739 & Below
    SPRING, Return
    SN# 0R051739 & Below
  • 4
    24-812634003 SPRING, Return
    SN# 0R051740 & Up
    SPRING, Return
    SN# 0R051740 & Up
  • 5
    24-812636 SPRING, Friction
    SN# 0R051739 & Below
    SPRING, Friction
    SN# 0R051739 & Below
  • 5
    24-812636001 SPRING
    SN# 0R051740 & Up
    SPRING
    SN# 0R051740 & Up
  • 6
    8M0060217 RATCHET
    SN# 0R051739 & Below
    RATCHET
    SN# 0R051739 & Below
  • 6
    8M0078324 RATCHET
    SN# 0R051740 & Up
    RATCHET
    SN# 0R051740 & Up
  • 7
    812638 FRICTION PLATE
    SN# 0R051739 & Below
    FRICTION PLATE
    SN# 0R051739 & Below
  • 7
    8M0078325 FRICTION PLATE
    SN# 0R051740 & Up
    FRICTION PLATE
    SN# 0R051740 & Up
  • 8
    10-8M0060218 BOLT
    SN# 0R051739 & Below
    BOLT
    SN# 0R051739 & Below
  • 8
    10-812637001 BOLT
    SN# 0R051740 & Up
    BOLT
    SN# 0R051740 & Up
  • 9
    161101 PLATE, Seal
    SN# 0R051739 & Below
    PLATE, Seal
    SN# 0R051739 & Below
  • 9
    16110004 PLATE, Seal
    SN# 0R051740 & Up
    PLATE, Seal
    SN# 0R051740 & Up
  • 10
    50-12066Q10 ROPE
    ROPE
  • 11
    98-8M0114821 HANDLE, Starter
    SN# 0R051739 & Below
    HANDLE, Starter
    SN# 0R051739 & Below
  • 11
    804363001 HANDLE, Starter
    SN# 0R051740 & Up
    HANDLE, Starter
    SN# 0R051740 & Up
  • 12
    853755 RETAINER
    SN# 0R051739 & Below
    RETAINER
    SN# 0R051739 & Below
  • 12
    8M0084137 ROPE ANCHOR
    SN# 0R051740 & Up
    ROPE ANCHOR
    SN# 0R051740 & Up
  • 13
    812642 PULLEY, Starter
    SN# 0R051739 & Below
    PULLEY, Starter
    SN# 0R051739 & Below
  • 13
    812642002 PULLEY, Starter
    SN# 0R051740 & Up
    PULLEY, Starter
    SN# 0R051740 & Up
  • 14
    10-168281 SCREW AND LOCKWASHER
    SCREW AND LOCKWASHER
  • 15
    176431 SNAP, Link Rod
    SNAP, Link Rod
  • 16
    803577 LOCK ROD, Starter
    LOCK ROD, Starter
  • 17
    8126431 LOCK CAM, Starter
    SN# 0R051739 & Below
    LOCK CAM, Starter
    SN# 0R051739 & Below
  • 17
    812643002 CAM, Starter Lock
    SN# 0R051740 & Up
    CAM, Starter Lock
    SN# 0R051740 & Up
  • 18
    10-804364 SCREW
    SN# 0R051739 & Below
    SCREW
    SN# 0R051739 & Below
  • 18
    10-855544 SCREW
    SN# 0R051740 & Up
    SCREW
    SN# 0R051740 & Up
  • 19
    23-804365 COLLAR
    SN# 0R051739 & Below
    COLLAR
    SN# 0R051739 & Below
  • 19
    23-855545001 COLLAR
    SN# 0R051740 & Up
    COLLAR
    SN# 0R051740 & Up
  • 20
    12-16826 WASHER, Stainless Steel
    WASHER, Stainless Steel
  • 21
    24-804366 SPRING
    SN# 0R051739 & Below
    SPRING
    SN# 0R051739 & Below
  • 21
    24-804366001 SPRING, Starter Lock Cam
    SN# 0R051740 & Up
    SPRING, Starter Lock Cam
    SN# 0R051740 & Up
  • 22
    17634 LOCK, Starter
    SN# 0R051739 & Below
    LOCK, Starter
    SN# 0R051739 & Below
  • 22
    17634001 LOCK, Starter
    SN# 0R051740 & Up
    LOCK, Starter
    SN# 0R051740 & Up
  • 23
    10-8555449 SCREW
    SCREW
  • 24
    24-812645007 SPRING
    SN# 0R051739 & Below
    SPRING
    SN# 0R051739 & Below
  • 24
    24-812645007 SPRING
    SN# 0R051740 & Up
    SPRING
    SN# 0R051740 & Up
  • 25
    23-895130 COLLAR
    SN# 0R051739 & Below
    COLLAR
    SN# 0R051739 & Below
  • 25
    23-895130 COLLAR
    SN# 0R051740 & Up
    COLLAR
    SN# 0R051740 & Up
  • 26
    10-810755 SCREW
    SCREW
  • 27
    13-400256 LOCKWASHER, (M6)
    LOCKWASHER, (M6)
  • 28
    54-813275 CLAMP
    SN# 0R051739 & Below
    CLAMP
    SN# 0R051739 & Below
  • 28
    54-8M0130961 CLAMP
    SN# 0R051740 & Up
    CLAMP
    SN# 0R051740 & Up
  • 29
    176431 SNAP, Link Rod
    SN# 0R051739 & Below
    SNAP, Link Rod
    SN# 0R051739 & Below
  • 29
    17643002 SNAP, Link Rod
    SN# 0R051740 & Up
    SNAP, Link Rod
    SN# 0R051740 & Up
