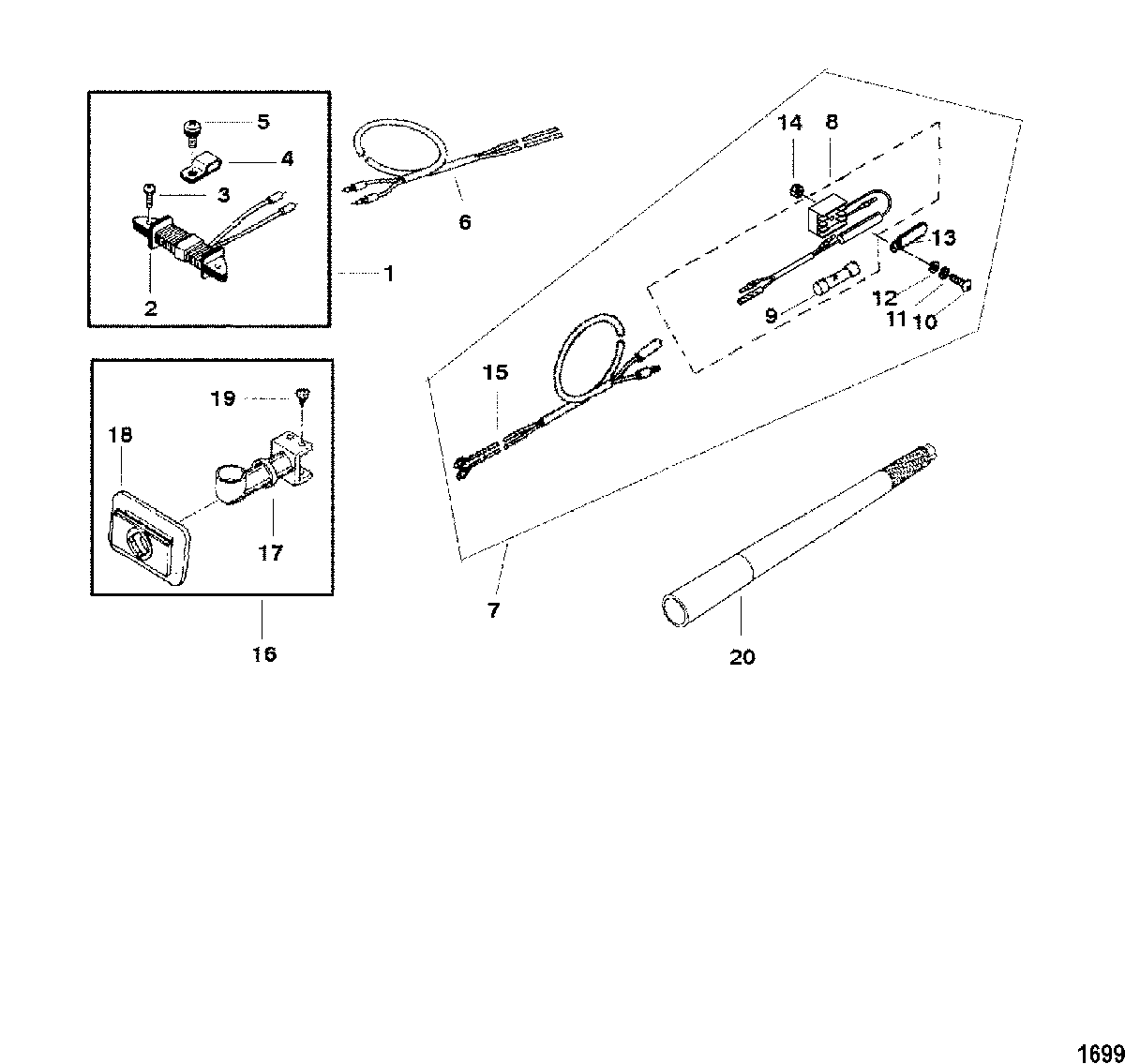

Accessory Parts для Mariner - 6 (4-STROKE) 0R000001 THRU 0R067089

  • №
    Артикул
    Название
  • 1
    16837A2 ALTERNATOR KIT
    ALTERNATOR KIT
  • 2
    16074T ALTERNATOR
    ALTERNATOR
  • 3
    10-16059 SCREW
    SCREW
  • 4
    54-16060 CLAMP
    CLAMP
  • 5
    10-16821 SCREW
    SCREW
  • 6
    84-17175 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 7
    16838A4 CHARGING KIT, Battery, Rectifier
    (6 AMP)
    CHARGING KIT, Battery, Rectifier
    (6 AMP)
  • 8
    16076A1 RECTIFIER
    (Use with 20MM Screw)
    RECTIFIER
    (Use with 20MM Screw)
  • 8
    16076A1 RECTIFIER KIT
    (Use with 25 MM Screw)
    RECTIFIER KIT
    (Use with 25 MM Screw)
  • 9
    89-16077 FUSE
    FUSE
  • 10
    10-16123 SCREW, (25 mm)
    (25MM)
    SCREW, (25 mm)
    (25MM)
  • 10
    10-16078 SCREW
    (20MM)
    SCREW
    (20MM)
  • 11
    13-16079 LOCKWASHER
    LOCKWASHER
  • 12
    12-8M0108373 WASHER, Stainless Steel
    WASHER, Stainless Steel
  • 13
    54-813275 CLAMP
    CLAMP
  • 14
    11-16081 NUT, Stainless Steel
    NUT, Stainless Steel
  • 15
    84-16082 CABLE, Battery
    CABLE, Battery
  • 16
    16839A4 GUIDE KIT, Vertical Rope
    GUIDE KIT, Vertical Rope
  • 17
    NSS NOT SOLD SEPARATE, Guide
    NOT SOLD SEPARATE, Guide
  • 18
    16113 PLATE, Seal
    PLATE, Seal
  • 19
    10-17173 SCREW
    SCREW
  • 20
    853828 HANDLE, (0.8 Meters)
    (0.8M)
    HANDLE, (0.8 Meters)
    (0.8M)
  • 20
    8538281 HANDLE, (1.0 Meters)
    (1.0M)
    HANDLE, (1.0 Meters)
    (1.0M)
