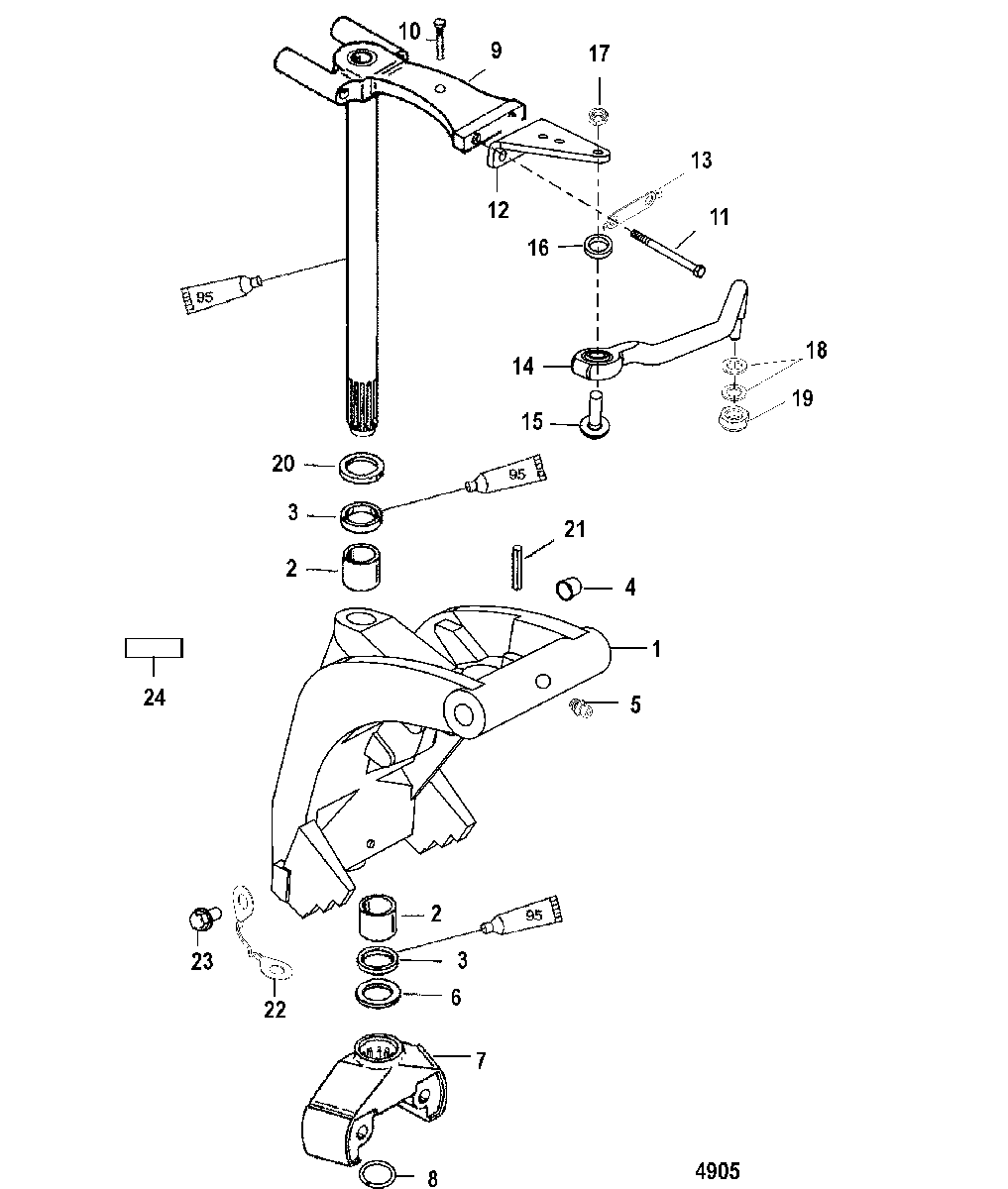

Swivel Bracket для Mariner - 55 (3 CYL.) 0T980000 & Up

№

Артикул

Название
1

3400-8M0084208 SWIVEL BRACKET
(Black-Short)

SWIVEL BRACKET
(Black-Short)

139 730 ₽
1

3417-822863A1 SWIVEL BRACKET
(Black-Long)

SWIVEL BRACKET
(Black-Long)

105 370 ₽
2

23-821124 BEARING

BEARING

630 ₽
3

26-32911 SEAL, Oil

SEAL, Oil

560 ₽
4

23-19606 BEARING

BEARING

500 ₽
5

22-74036 FITTING, Grease

FITTING, Grease

340 ₽
6

12-52865 WASHER

WASHER

260 ₽
7

19654T1 YOKE, Bottom
(Black)

YOKE, Bottom
(Black)

7 050 ₽
8

53-77415 RETAINING RING

RETAINING RING

250 ₽
9

17-812897A19 SWIVEL PIN ASSEMBLY
(Black-Short)

SWIVEL PIN ASSEMBLY
(Black-Short)

54 630 ₽
9

17-812896A22 SWIVEL PIN ASSEMBLY
(Black-Long)

SWIVEL PIN ASSEMBLY
(Black-Long)

43 220 ₽
10

17-8219872 PIN, Co-Pilot

PIN, Co-Pilot

1 700 ₽
11

10-4000377 SCREW, (M10 x 30)
(Electric)

SCREW, (M10 x 30)
(Electric)

320 ₽
12

893696 BRACKET
(Electric)

BRACKET
(Electric)

3 140 ₽
13

14-8M0009820 TAB WASHER
(Electric)

TAB WASHER
(Electric)

450 ₽
14

19608A14 ATTACHING KIT, Engine Steering
(Electric)

ATTACHING KIT, Engine Steering
(Electric)

11 410 ₽
15

10-823919 SCREW, (.375-24 x 1.500)
(Electric)

SCREW, (.375-24 x 1.500)
(Electric)

350 ₽
16

12-8M0109680 WASHER, (.390 x .546 x .12)
(Electric)

WASHER, (.390 x .546 x .12)
(Electric)

0 ₽
17

11-8M0042636 NUT, (.375-24) Stainless Steel
(Electric)

NUT, (.375-24) Stainless Steel
(Electric)

150 ₽
18

12-37828 WASHER, (.390 x .625 x .062) Stainless Steel
(Electric)

WASHER, (.390 x .625 x .062) Stainless Steel
(Electric)

50 ₽
19

11-8M0042636 NUT, (.375-24) Brass
(Electric)

NUT, (.375-24) Brass
(Electric)

150 ₽
20

12-52865 WASHER

WASHER

260 ₽
21

17-823876 PIN, Handle

PIN, Handle

270 ₽
22

88238A10 CABLE ASSEMBLY, Ground

CABLE ASSEMBLY, Ground

600 ₽
23

10-41508 SCREW, (.250-20 x .500) Stainless Steel

SCREW, (.250-20 x .500) Stainless Steel

260 ₽
24

NSS NOT SOLD SEPARATE, Decal-Serialization

NOT SOLD SEPARATE, Decal-Serialization

0 ₽
