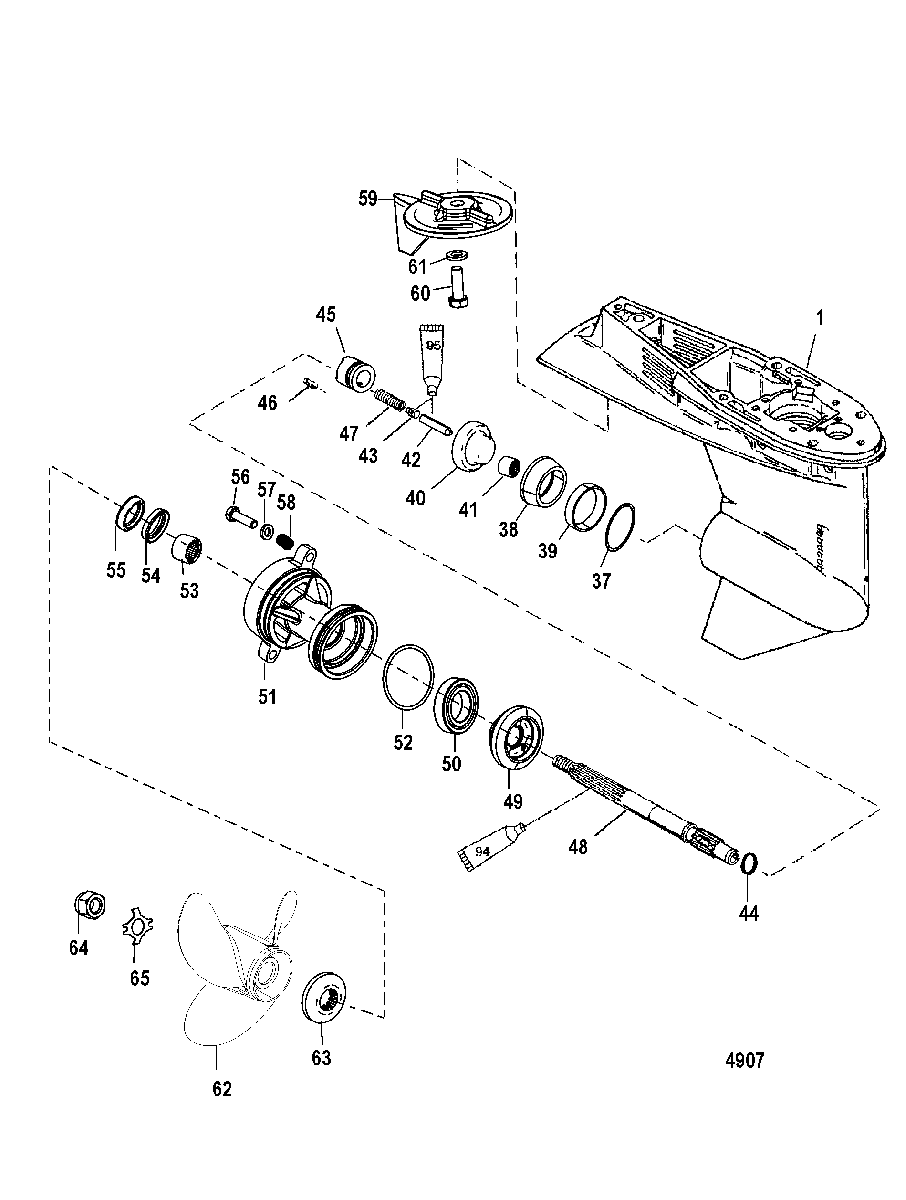

Gear Housing, Propeller Shaft - 1.64:1 Gear Ratio для Mariner - 55 (3 CYL.) 0T980000 & Up

  • №
    Артикул
    Название
  • -
    1671-9760T23 GEAR HOUSING ASSEMBLY, Complete
    (Short)
    GEAR HOUSING ASSEMBLY, Complete
    (Short)
  • -
    1671-9760T25 GEAR HOUSING ASSEMBLY, Complete
    (Long)
    GEAR HOUSING ASSEMBLY, Complete
    (Long)
  • -
    1671-9760T28 GEAR HOUSING ASSEMBLY, Complete
    (LL)
    GEAR HOUSING ASSEMBLY, Complete
    (LL)
  • 1
    1671-9760T42 GEAR HOUSING ASSEMBLY, Basic
    (Black-Basic)
    GEAR HOUSING ASSEMBLY, Basic
    (Black-Basic)
  • 37
    15-8M0063263 SHIM SET
    SHIM SET
  • 38
    31-8M0103476 BEARING ASSEMBLY, Tapered Roller
    BEARING ASSEMBLY, Tapered Roller
  • 39
    NSS NOT SOLD SEPARATE, Cup
    NOT SOLD SEPARATE, Cup
  • 40
    43-813693T1 GEAR, Forward (23 Teeth)
    GEAR, Forward (23 Teeth)
  • 41
    31-21739 BEARING, Roller
    BEARING, Roller
  • 42
    8129291 FOLLOWER, Cam
    FOLLOWER, Cam
  • 43
    20843 SLIDE
    SLIDE
  • 44
    24-38114 SPRING
    SPRING
  • 45
    52-813697T CLUTCH
    CLUTCH
  • 46
    17-8M0020942 PIN, Cross
    PIN, Cross
  • 47
    24-815418 SPRING
    SPRING
  • 48
    44-14493 PROPELLER SHAFT
    PROPELLER SHAFT
  • 49
    43-813695T GEAR, Reverse (23 Teeth)
    GEAR, Reverse (23 Teeth)
  • 50
    30-20839T BEARING, Ball
    BEARING, Ball
  • 51
    19291A3 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 52
    25-815460 O-RING
    O-RING
  • 53
    31-21700 BEARING, Needle
    BEARING, Needle
  • 54
    26-69188 SEAL, Oil
    SEAL, Oil
  • 55
    26-69189 SEAL, Oil
    SEAL, Oil
  • 56
    10-85594030 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 57
    12-855941 WASHER, (.323 x .590 x .112) Stainless Steel
    WASHER, (.323 x .590 x .112) Stainless Steel
  • 58
    8227731 INSERT, Threaded
    INSERT, Threaded
  • 59
    17264T2 TRIM TAB, Zinc
    TRIM TAB, Zinc
  • 60
    10-4000377 SCREW, (M10 x 30)
    SCREW, (M10 x 30)
  • 61
    12-856774 WASHER, (.406 x .750 x .105) Stainless Steel
    WASHER, (.406 x .750 x .105) Stainless Steel
  • 62
    48-816704A45 PROPELLER KIT
    (55 Beaching)
    PROPELLER KIT
    (55 Beaching)
  • 63
    73345A1 THRUST HUB
    THRUST HUB
  • 64
    11-69578Q1 PROP NUT KIT
    PROP NUT KIT
  • 65
    14-76281 TAB WASHER
    TAB WASHER
  • -
    27-812867A97 GASKET SET
    GASKET SET
  • -
    26-814669A2 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
