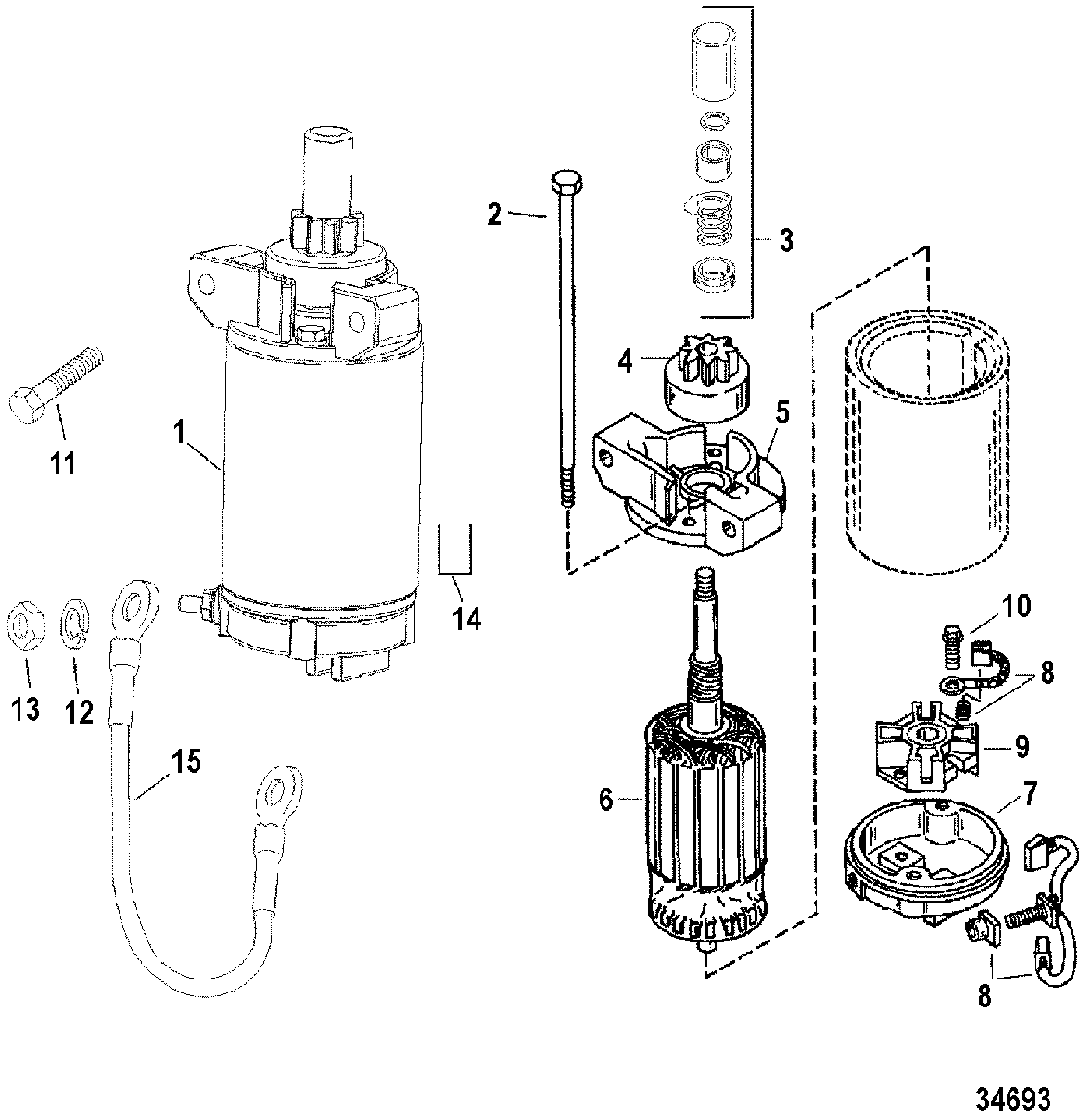

STARTER MOTOR(S/N-0G472133 AND UP) для Mariner - 50 (4-STROKE) 9944807 THRU 0P016999
-
№АртикулНазвание
-
150-898265001 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
210-965661 THRU BOLTTHRU BOLT
-
3906431 DRIVE KITDRIVE KIT
-
4685751 DRIVE ASSEMBLYDRIVE ASSEMBLY
-
58236392 DRIVE CAPDRIVE CAP
-
68236382 ARMATUREARMATURE
-
78119011 CAP, CommutatorCAP, Commutator
-
8898265016 BRUSH/SPRING KITBRUSH/SPRING KIT
-
9898265014 HOLDERHOLDER
-
10F15158 SCREWSCREW
-
1110-81893450 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
1213-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1311-64015 NUT, (.250-20)NUT, (.250-20)
-
1454-814634 CLAMP (USE WHERE APPLICABLE)CLAMP (USE WHERE APPLICABLE)
-
1584-93388A14 CABLE ASSEMBLYCABLE ASSEMBLY
