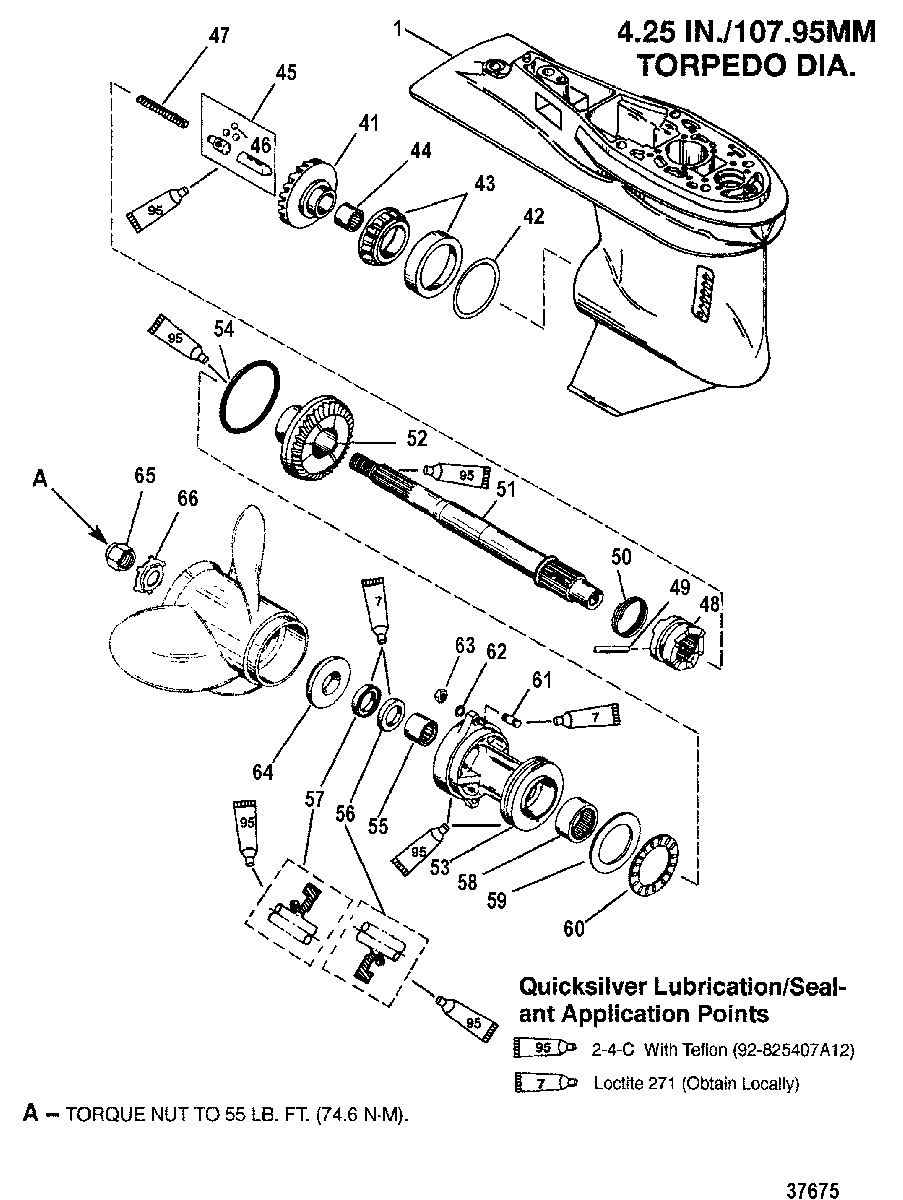

GEAR HOUSING(PROPELLER SHAFT)(2.31:1 GEAR RATIO) для Mariner - 50 (4-STROKE) 9944807 THRU 0P016999

  • №
    Артикул
    Название
  • -
    1667-9011G86 GEAR HOUSING ASSEMBLY
    (BLACK)
    GEAR HOUSING ASSEMBLY
    (BLACK)
  • -
    1667-9011G86 GEAR HOUSING ASSEMBLY
    (GRAY)
    GEAR HOUSING ASSEMBLY
    (GRAY)
  • 1
    1667-9011G59 GEAR HOUSING ASSEMBLY
    (BLACK)
    GEAR HOUSING ASSEMBLY
    (BLACK)
  • 1
    1667-9011G59 GEAR HOUSING ASSEMBLY
    (GRAY)
    GEAR HOUSING ASSEMBLY
    (GRAY)
  • 41
    43-859472A3 GEAR KIT, Forward (30 TEETH)
    GEAR KIT, Forward (30 TEETH)
  • 42
    15-8M0063266 SHIM SET
    SHIM SET
  • 43
    31-30894A1 BEARING SET, Cup And Cone
    BEARING SET, Cup And Cone
  • 44
    31-30895T BEARING, Needle
    BEARING, Needle
  • 45
    850315A1 FOLLOWER KIT, Cam
    FOLLOWER KIT, Cam
  • 46
    30-44530 BALL
    BALL
  • 47
    24-850327 SPRING
    SPRING
  • 48
    52-850048T CLUTCH
    CLUTCH
  • 49
    17-8M0100263 PIN, Cross
    PIN, Cross
  • 50
    24-30893 SPRING
    SPRING
  • 51
    44-8M0140445 PROPELLER SHAFT
    PROPELLER SHAFT
  • 52
    43-850034T GEAR, Reverse (30 Teeth)
    GEAR, Reverse (30 Teeth)
  • 53
    12596T2 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 54
    25-861844 O-RING, (3.609 x .139)
    O-RING, (3.609 x .139)
  • 55
    31-30956T BEARING, Needle
    BEARING, Needle
  • 56
    26-70080 SEAL, Oil (INNER)
    SEAL, Oil (INNER)
  • 57
    26-70081 SEAL, Oil (OUTER)
    SEAL, Oil (OUTER)
  • 58
    31-12578T BEARING, Needle
    BEARING, Needle
  • 59
    12-12577 THRUST WASHER
    THRUST WASHER
  • 60
    31-12576 BEARING, Thrust
    BEARING, Thrust
  • 61
    16-8M0034456 STUD, (M8 x 1.25 x 48) (M8 X 48)
    STUD, (M8 x 1.25 x 48) (M8 X 48)
  • 62
    12-855941 WASHER, (.323 x .590 x .112) Stainless Steel
    WASHER, (.323 x .590 x .112) Stainless Steel
  • 63
    11-401378 NUT, (M8)
    NUT, (M8)
  • 64
    13191Q01 THRUST WASHER
    THESE PARTS ARE NOT INCLUDED WITH REPLACEMENT
    THRUST WASHER
    THESE PARTS ARE NOT INCLUDED WITH REPLACEMENT
  • 65
    11-52707Q1 PROP NUT KIT, (.750-16)
    THESE PARTS ARE NOT INCLUDED WITH REPLACEMENT
    PROP NUT KIT, (.750-16)
    THESE PARTS ARE NOT INCLUDED WITH REPLACEMENT
  • 66
    14-816629Q TAB WASHER
    THESE PARTS ARE NOT INCLUDED WITH REPLACEMENT
    TAB WASHER
    THESE PARTS ARE NOT INCLUDED WITH REPLACEMENT
  • -
    26-43035A4 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
