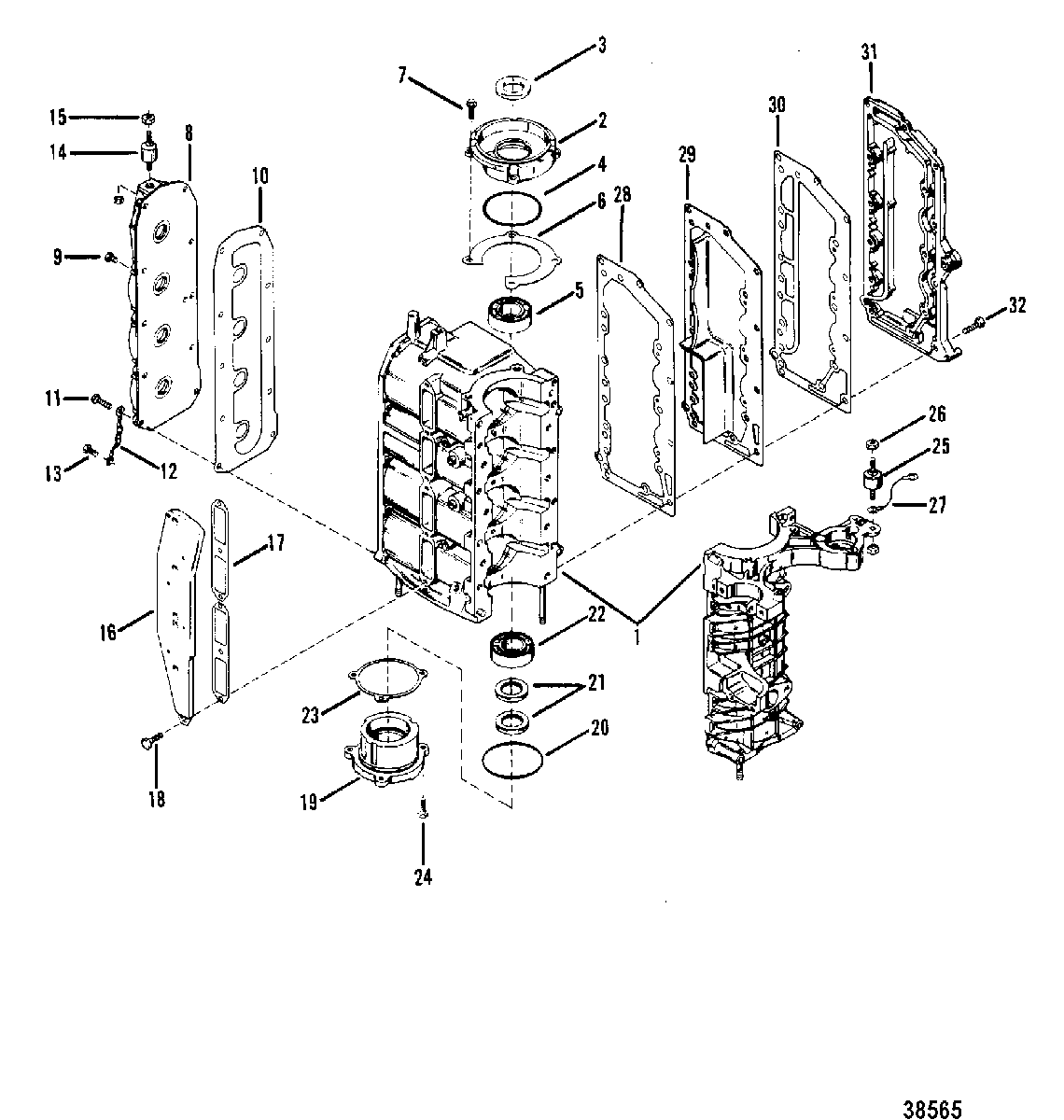

END CAPS AND EXHAUST COVER для Mariner - 50 (4 CYL.) 9248006 & Up
-
№АртикулНазвание
-
1863-8981A6 CYLINDER BLOCK ASSEMBLYCYLINDER BLOCK ASSEMBLY
-
21160-5826A2 END CAP ASSEMBLY, UPPEREND CAP ASSEMBLY, UPPER
-
326-41953 SEAL, UPPER END CAPSEAL, UPPER END CAP
-
425-20081 O-RING, UPPER END CAPO-RING, UPPER END CAP
-
530-63742T BEARING, Ball, UPPER END CAPBEARING, Ball, UPPER END CAP
-
615-72538A1 SHIM, UPPER END CAP (.005-10)SHIM, UPPER END CAP (.005-10)
-
710-824941 SCREW, UPPER END CAP (3/4")SCREW, UPPER END CAP (3/4")
-
81017-7054A1 COVER ASSEMBLY, CYLINDER BLOCK
SN# USA-6146848/Aus-8075602/Bel-9362390/Can-7198592 & BelowCOVER ASSEMBLY, CYLINDER BLOCK
SN# USA-6146848/Aus-8075602/Bel-9362390/Can-7198592 & Below -
81017-8360A1 COVER ASSEMBLY, CYLINDER BLOCK
SN# USA-6146849/Bel-9362391/Can-7198593 & UpCOVER ASSEMBLY, CYLINDER BLOCK
SN# USA-6146849/Bel-9362391/Can-7198593 & Up -
922-328022 PLUG, Pipe (.125-27), CYLINDER BLOCK COVERPLUG, Pipe (.125-27), CYLINDER BLOCK COVER
-
1027-85487 GASKET, CYLINDER BLOCK COVER
SN# USA-6146848/Aus-8075602/Bel-9362390/Can-7198592 & BelowGASKET, CYLINDER BLOCK COVER
SN# USA-6146848/Aus-8075602/Bel-9362390/Can-7198592 & Below -
1027-437772 GASKET, CYLINDER BLOCK COVER
SN# USA-6146849/Bel-9362391/Can-7198593 & UpGASKET, CYLINDER BLOCK COVER
SN# USA-6146849/Bel-9362391/Can-7198593 & Up -
1110-76630 SCREW, CYLINDER BLOCK COVER (1")SCREW, CYLINDER BLOCK COVER (1")
-
1288238A10 CABLE ASSEMBLY, Ground (3-5/8")CABLE ASSEMBLY, Ground (3-5/8")
-
1310-62568 SCREW, (#10-16 x .375), GROUND STRAPSCREW, (#10-16 x .375), GROUND STRAP
-
1490435 MOUNT, RUBBER - CYLINDER BLOCK COVERMOUNT, RUBBER - CYLINDER BLOCK COVER
-
1511-20184 NUT, (1/4-28X7/32), RUBBER MOUNTNUT, (1/4-28X7/32), RUBBER MOUNT
-
1618827A1 COVER ASSEMBLY, TRANSFER PORTCOVER ASSEMBLY, TRANSFER PORT
-
1727-279361 GASKET, TRANSFER PORT COVERGASKET, TRANSFER PORT COVER
-
1810-20540 SCREW, (.250-20 x .62), TRANSFER PORT COVERSCREW, (.250-20 x .62), TRANSFER PORT COVER
-
191158-6635T1 END CAP ASSEMBLY, LOWEREND CAP ASSEMBLY, LOWER
-
2025-20081 O-RING, LOWER END CAPO-RING, LOWER END CAP
-
2126-41953 SEAL, LOWER END CAPSEAL, LOWER END CAP
-
2230-63742T BEARING, BallBEARING, Ball
-
2315-20085A1 SHIM SET, LOWER END CAP(.005-10)SHIM SET, LOWER END CAP(.005-10)
-
2410-29256 SCREW, (.312-18 x .875), LOWER END CAPSCREW, (.312-18 x .875), LOWER END CAP
-
2590435 MOUNT, RUBBER - CRANKCASEMOUNT, RUBBER - CRANKCASE
-
2611-20184 NUT, (1/4-28X7/32), RUBBER MOUNTNUT, (1/4-28X7/32), RUBBER MOUNT
-
2784-65773A5 STRAP ASSEMBLY, Ground, CRANKCASE MOUNTSTRAP ASSEMBLY, Ground, CRANKCASE MOUNT
-
2827-854913 GASKET, CYLINDER BLOCK TO BAFFLE PLATEGASKET, CYLINDER BLOCK TO BAFFLE PLATE
-
2990421T01 PLATE, BAFFLE-EXHAUST MANIFOLDPLATE, BAFFLE-EXHAUST MANIFOLD
-
3027-854924 GASKET, BAFFLE PLATE TO EXHAUST COVERGASKET, BAFFLE PLATE TO EXHAUST COVER
-
3177381 COVER, EXHAUST MANIFOLDCOVER, EXHAUST MANIFOLD
-
3210-37562 SCREW, (.312-18 x 1.00) Stainless SteelSCREW, (.312-18 x 1.00) Stainless Steel
-
3210-38837 SCREW, (.312-18 x 1.12)SCREW, (.312-18 x 1.12)
-
-27-72486A32 GASKET SETGASKET SET
