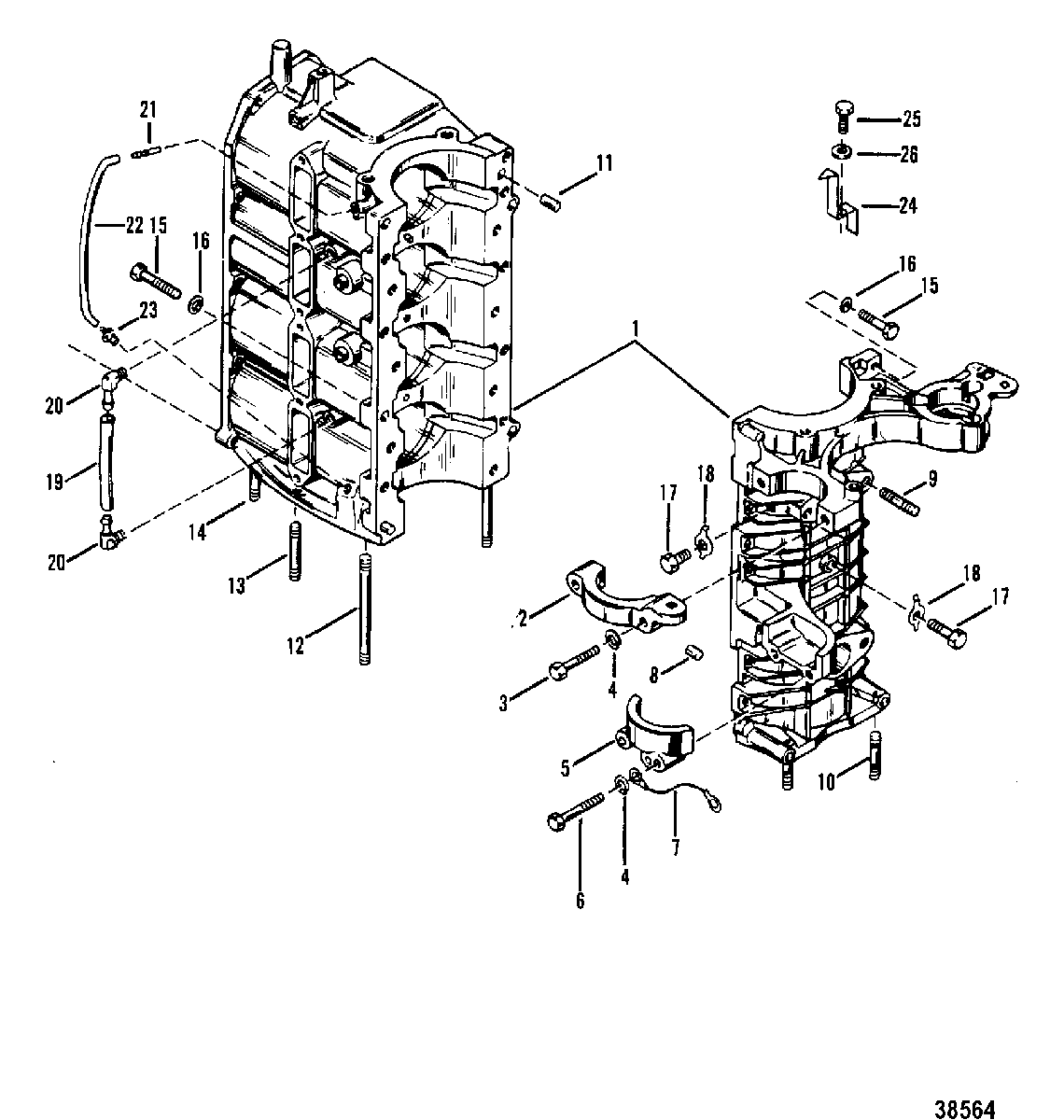

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mariner - 50 (4 CYL.) 9248006 & Up
-
№АртикулНазвание
-
1863-8981A6 CYLINDER BLOCK ASSEMBLYCYLINDER BLOCK ASSEMBLY
-
272038 BRACKET, STARTER MOTOR (UPPER)BRACKET, STARTER MOTOR (UPPER)
-
310-73279 SCREW, (.312-18 x 1.880), BRACKET TO CRANKCASESCREW, (.312-18 x 1.880), BRACKET TO CRANKCASE
-
413-26993 LOCKWASHER, (.312), BRACKET SCREWLOCKWASHER, (.312), BRACKET SCREW
-
576867 COVER, STARTER MOTOR (LOWER)COVER, STARTER MOTOR (LOWER)
-
610-73279 SCREW, (.312-18 x 1.880), COVER TO CRANKCASESCREW, (.312-18 x 1.880), COVER TO CRANKCASE
-
746933A7 CABLE ASSEMBLY, GROUNDCABLE ASSEMBLY, GROUND
-
817-20032 PIN, Dowel, CYLINDER BLOCK TO MAIN BEARINGPIN, Dowel, CYLINDER BLOCK TO MAIN BEARING
-
916-64936 STUD, CARBURETOR (1-1/4")STUD, CARBURETOR (1-1/4")
-
1016-68165 STUDSTUD
-
1117-43044 PIN, Dowel, CRANKCASE TO CYLINDER BLOCKPIN, Dowel, CRANKCASE TO CYLINDER BLOCK
-
1216-87901 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (4")STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (4")
-
1316-68166 STUD, (.312 x 2.125), CYLINDER BLOCK TO DRIVE SHAFT HOUSINGSTUD, (.312 x 2.125), CYLINDER BLOCK TO DRIVE SHAFT HOUSING
-
1416-68167 STUD, (.312-18/.312-24 x 2.560), CYLINDER BLOCK TO DRIVE SHAFT HOUSINGSTUD, (.312-18/.312-24 x 2.560), CYLINDER BLOCK TO DRIVE SHAFT HOUSING
-
1510-55511 SCREW, (.312-18 x 1.500), CRANKCASE TO CYLINDER BLOCKSCREW, (.312-18 x 1.500), CRANKCASE TO CYLINDER BLOCK
-
1510-31984 SCREW, (.312-18 x 1.375), CRANKCASE TO CYLINDER BLOCKSCREW, (.312-18 x 1.375), CRANKCASE TO CYLINDER BLOCK
-
1510-73275 SCREW, (.312-18 x 2.88), CRANKCASE TO CYLINDER BLOCKSCREW, (.312-18 x 2.88), CRANKCASE TO CYLINDER BLOCK
-
1612-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel, CRANKCASE SCREWWASHER, (.323 x .563 x .063) Stainless Steel, CRANKCASE SCREW
-
1710-20359 SCREW, (.375-16 x 1.00), CENTER MAIN BEARING LOCKINGSCREW, (.375-16 x 1.00), CENTER MAIN BEARING LOCKING
-
1710-98260 SCREW, (.375-16 x .620), MAIN BEARING LOCKINGSCREW, (.375-16 x .620), MAIN BEARING LOCKING
-
1814-20091 TAB WASHER, CENTER BEARING LOCKING SCREWTAB WASHER, CENTER BEARING LOCKING SCREW
-
1932-8M0108355 LINE, (57.00 Inches Bulk), BALANCE - MAIN BEARING (5-1/2")LINE, (57.00 Inches Bulk), BALANCE - MAIN BEARING (5-1/2")
-
2022-996642 ELBOW, BALANCE TUBE TO CYLINDER BLOCKELBOW, BALANCE TUBE TO CYLINDER BLOCK
-
2122-56759 CONNECTOR, BLEED HOSE (UPPER)CONNECTOR, BLEED HOSE (UPPER)
-
2232-9938779 HOSE, CYLINDER BLEED (11")HOSE, CYLINDER BLEED (11")
-
2321-428671 CHECK VALVE, BLEED HOSE (LOWER)CHECK VALVE, BLEED HOSE (LOWER)
-
2499156 INDICATOR, TIMING - ELECTRICINDICATOR, TIMING - ELECTRIC
-
2510-39349 SCREW, (.312-18 x .750) Stainless SteelSCREW, (.312-18 x .750) Stainless Steel
-
2613-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
-97469T87 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
