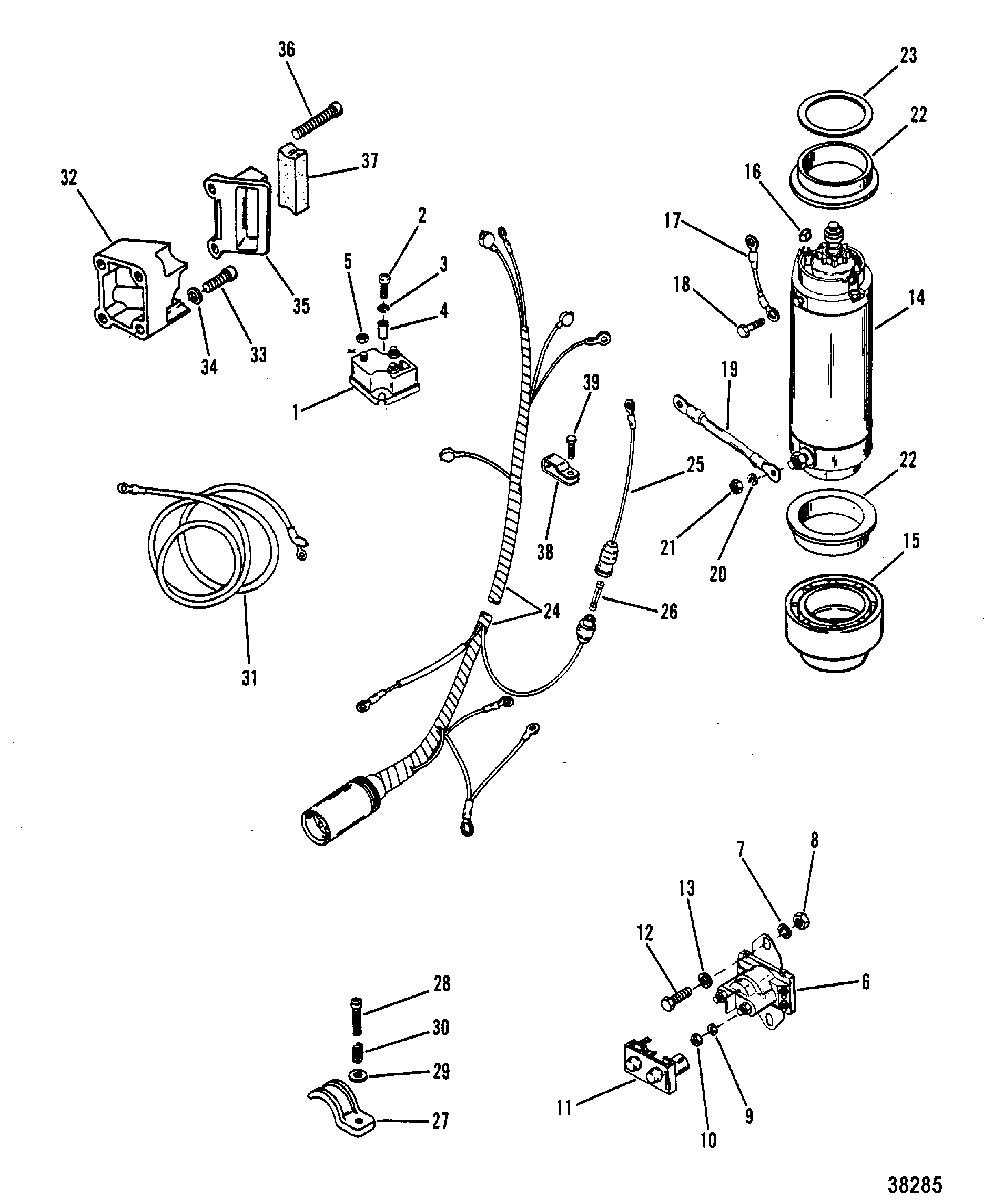

STARTER MOTOR, STARTER SOLENOID, RECTIFIER для Mariner - 50 (3 CYL.) 7208333 THRU 0A721307

  • №
    Артикул
    Название
  • 1
    8M0058226 RECTIFIER
    RECTIFIER
  • 2
    10-38055 SCREW, (.190-32 x .62), RECTIFIER TO PLATE
    SCREW, (.190-32 x .62), RECTIFIER TO PLATE
  • 3
    13-26996 LOCKWASHER, (#10) Stainless Steel, RECTIFIER SCREW
    LOCKWASHER, (#10) Stainless Steel, RECTIFIER SCREW
  • 4
    23-94304 SPACER, RECTIFIER SCREW
    SPACER, RECTIFIER SCREW
  • 5
    11-45076 NUT, (#10-32) Brass, RECTIFIER TERMINAL
    NUT, (#10-32) Brass, RECTIFIER TERMINAL
  • 6
    89-96054T SOLENOID ASSEMBLY, Starter
    SOLENOID ASSEMBLY, Starter
  • 7
    13-26995 LOCKWASHER, (#8) Stainless Steel, SOLENOID TERMINAL
    LOCKWASHER, (#8) Stainless Steel, SOLENOID TERMINAL
  • 8
    11-26419 NUT, (#8-32) Brass, SOLENOID TERMINAL
    NUT, (#8-32) Brass, SOLENOID TERMINAL
  • 9
    13-26992 LOCKWASHER, (.250) Stainless Steel, SOLENOID TERMINAL
    LOCKWASHER, (.250) Stainless Steel, SOLENOID TERMINAL
  • 10
    11-94330 NUT, (.250-20) Brass, SOLENOID TERMINAL
    NUT, (.250-20) Brass, SOLENOID TERMINAL
  • 11
    85-97861 INSULATOR, STARTER SOLENOID
    INSULATOR, STARTER SOLENOID
  • 12
    10-69054 SCREW, (.250-20 x .620), SOLENOID TO ATTENUATOR
    SCREW, (.250-20 x .620), SOLENOID TO ATTENUATOR
  • 13
    13-26992 LOCKWASHER, (.250) Stainless Steel, SOLENOID SCREW
    LOCKWASHER, (.250) Stainless Steel, SOLENOID SCREW
  • 14
    50-44369A1 STARTER MOTOR ASSEMBLY
    (STAMPED 50-65436)
    STARTER MOTOR ASSEMBLY
    (STAMPED 50-65436)
  • 14
    50-44369A1 STARTER MOTOR ASSEMBLY
    (STAMPED 50-44369)
    STARTER MOTOR ASSEMBLY
    (STAMPED 50-44369)
  • 15
    44368 ADAPTOR
    STARTER MOTOR STAMPED 50-44369
    ADAPTOR
    STARTER MOTOR STAMPED 50-44369
  • 16
    8M0043376 STOP, RUBBER - STARTER MOTOR
    STOP, RUBBER - STARTER MOTOR
  • 17
    84-93388A1 CABLE ASSEMBLY, (6.00 Inches) Black, STARTER TO SOUND ATTENUATOR
    CABLE ASSEMBLY, (6.00 Inches) Black, STARTER TO SOUND ATTENUATOR
  • 18
    10-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel, CABLE TO STARTER MOTOR
    SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel, CABLE TO STARTER MOTOR
  • 19
    84-93389A6 CABLE ASSEMBLY (9-1/2 Inches)(Solenoid to Starter Motor)
    CABLE ASSEMBLY (9-1/2 Inches)(Solenoid to Starter Motor)
  • 20
    13-26992 LOCKWASHER, (.250) Stainless Steel, STARTER MOTOR TERMINAL
    LOCKWASHER, (.250) Stainless Steel, STARTER MOTOR TERMINAL
  • 21
    11-20890 NUT, (.250-20), STARTER MOTOR TERMINAL
    NUT, (.250-20), STARTER MOTOR TERMINAL
  • 22
    23-8M0034918 COLLAR, RUBBER - STARTER MOUNT
    COLLAR, RUBBER - STARTER MOUNT
  • 23
    23-56774 SPACER, COLLAR TO MOUNTING BRACKETS
    SPACER, COLLAR TO MOUNTING BRACKETS
  • 24
    84-96271A2 HARNESS ASSEMBLY (INTERNAL)
    HARNESS ASSEMBLY (INTERNAL)
  • 25
    84-95084A2 CABLE ASSEMBLY, FUSE
    CABLE ASSEMBLY, FUSE
  • 26
    88-79091 FUSE, 20 Ampere
    FUSE, 20 Ampere
  • 27
    88751 CLAMP, WIRING HARNESS
    CLAMP, WIRING HARNESS
  • 28
    10-23702 SCREW, (.190-32 x 1.12), WIRING HARNESS CLAMP
    SCREW, (.190-32 x 1.12), WIRING HARNESS CLAMP
  • 29
    12-72761 WASHER, (.203 x .562 x .060) Stainless Steel, WIRING HARNESS CLAMP SCREW
    WASHER, (.203 x .562 x .060) Stainless Steel, WIRING HARNESS CLAMP SCREW
  • 30
    24-28357 SPRING, WIRING HARNESS
    SPRING, WIRING HARNESS
  • 31
    84-88439A7 CABLE ASSEMBLY, Battery (POSITIVE)
    CABLE ASSEMBLY, Battery (POSITIVE)
  • 31
    84-88439A4 CABLE ASSEMBLY, Battery - Negative
    CABLE ASSEMBLY, Battery - Negative
  • 32
    88683 BRACKET, WIRING HARNESS SUPPORT
    BRACKET, WIRING HARNESS SUPPORT
  • 33
    10-23015 SCREW, (.190-32 x 1.00), BRACKET ATTACHING
    SCREW, (.190-32 x 1.00), BRACKET ATTACHING
  • 34
    12-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, BRACKET SCREW
    WASHER, (.192 x .375 x .0312) Stainless Steel, BRACKET SCREW
  • 35
    88682 COVER, HARNESS SUPPORT BRACKET
    COVER, HARNESS SUPPORT BRACKET
  • 36
    10-25158 SCREW, (.190-32 x 1.75), COVER TO BRACKET
    SCREW, (.190-32 x 1.75), COVER TO BRACKET
  • 37
    26-60925 SEAL, WIRING HARNESS BRACKET
    SEAL, WIRING HARNESS BRACKET
  • 38
    54-28700 CLAMP, WIRING HARNESS
    CLAMP, WIRING HARNESS
  • 39
    10-73286 SCREW, (.250-20 x .500) Stainless Steel, WIRING HARNESS CLAMP
    SCREW, (.250-20 x .500) Stainless Steel, WIRING HARNESS CLAMP
