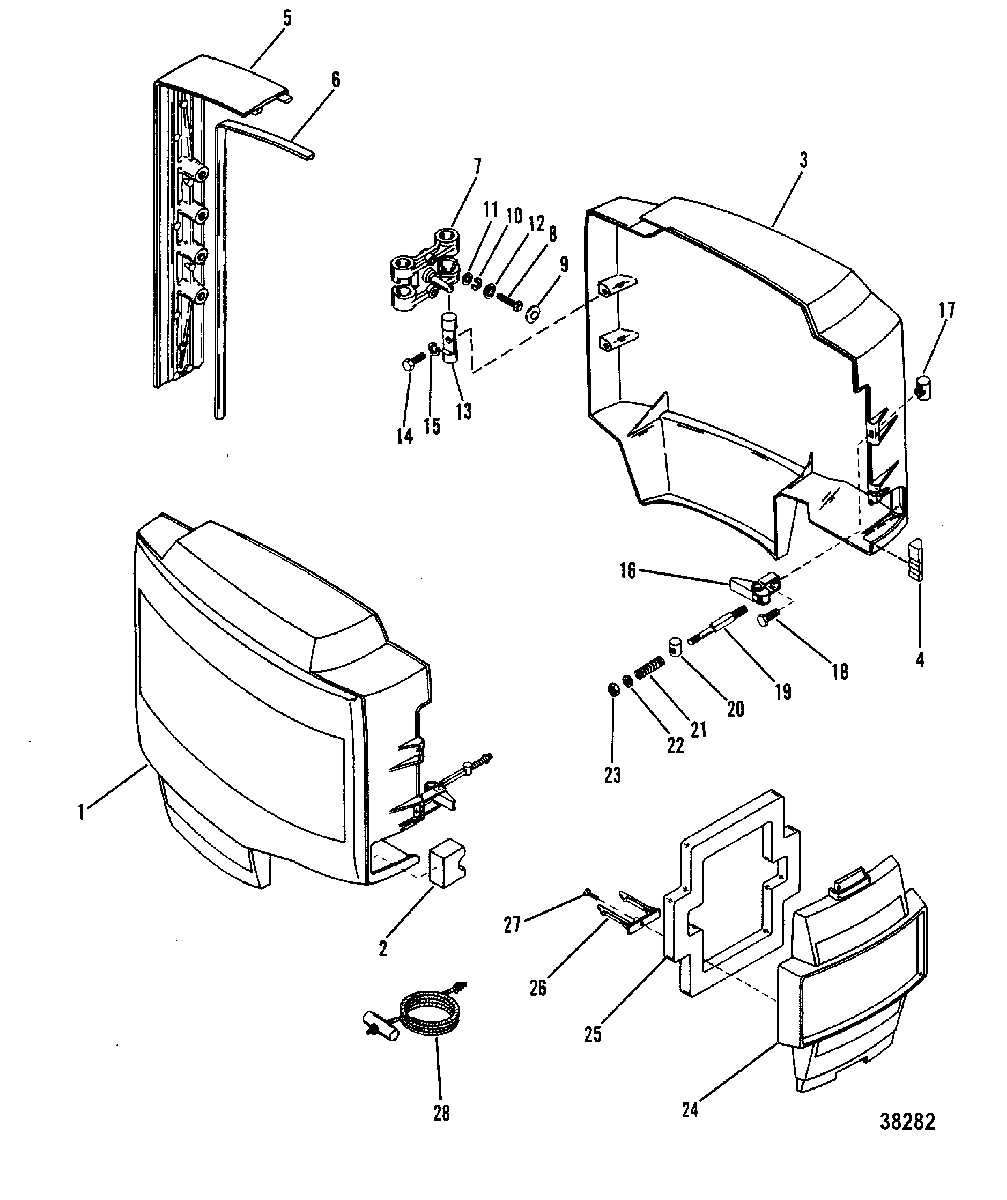

COWLING AND FRONT COVER для Mariner - 50 (3 CYL.) 7208333 THRU 0A721307

  • №
    Артикул
    Название
  • 1
    2142-6228A1 TOP COWL ASSEMBLY, STARBOARD (MERCURY)
    TOP COWL ASSEMBLY, STARBOARD (MERCURY)
  • 1
    2142-6228A3 COWL ASSEMBLY, STARBOARD (DARK GRAY) (MARINER)
    COWL ASSEMBLY, STARBOARD (DARK GRAY) (MARINER)
  • 1
    2142-6228A3 TOP COWL ASSEMBLY, STARBOARD (LIGHT GRAY)(MARINER)
    TOP COWL ASSEMBLY, STARBOARD (LIGHT GRAY)(MARINER)
  • 2
    26-60297 SEAL, FUEL CONNECTOR - COWL
    SEAL, FUEL CONNECTOR - COWL
  • 3
    2141-6227A1 TOP COWL ASSEMBLY, PORT (MERCURY)
    TOP COWL ASSEMBLY, PORT (MERCURY)
  • 3
    2141-6227A17 COWL ASSEMBLY, PORT (DARK GRAY)(MARINER)
    COWL ASSEMBLY, PORT (DARK GRAY)(MARINER)
  • 3
    2141-6227A17 TOP COWL ASSEMBLY, PORT (LIGHT GRAY)(MARINER)
    TOP COWL ASSEMBLY, PORT (LIGHT GRAY)(MARINER)
  • 4
    26-60298 SEAL, CONTROL CABLES - COWL
    SEAL, CONTROL CABLES - COWL
  • 5
    89717T BRACKET, COWL SEALING - REAR
    BRACKET, COWL SEALING - REAR
  • 6
    698761 SEAL, REAR BRACKET
    SEAL, REAR BRACKET
  • 7
    90980 BRACKET, COWL HINGE
    BRACKET, COWL HINGE
  • 8
    10-455611 SCREW, (.250-20 x 1.12), HINGE BRACKET (LOWER)
    SCREW, (.250-20 x 1.12), HINGE BRACKET (LOWER)
  • 8
    10-75794 SCREW, HINGE BRACKET (UPPER) (1-1/8")
    SCREW, HINGE BRACKET (UPPER) (1-1/8")
  • 9
    75805 CAP, HINGE BRACKET SCREW (UPPER)
    CAP, HINGE BRACKET SCREW (UPPER)
  • 10
    13-26992 LOCKWASHER, (.250) Stainless Steel, HINGE BRACKET SCREW
    LOCKWASHER, (.250) Stainless Steel, HINGE BRACKET SCREW
  • 11
    12-37998 WASHER, HINGE BRACKET SCREW
    WASHER, HINGE BRACKET SCREW
  • 12
    12-75806 WASHER, HINGE BRACKET SCREW (UPPER)
    WASHER, HINGE BRACKET SCREW (UPPER)
  • 13
    90979 PIN, COWL HINGE
    PIN, COWL HINGE
  • 14
    10-28782 SCREW, (.312-18 x .880) Stainless Steel, PIN TO COWL
    SCREW, (.312-18 x .880) Stainless Steel, PIN TO COWL
  • 15
    13-26993 LOCKWASHER, (.312), PIN ATTACHING SCREW
    LOCKWASHER, (.312), PIN ATTACHING SCREW
  • 16
    46785A5 LATCH ASSEMBLY, Cowl
    LATCH ASSEMBLY, Cowl
  • 17
    62628 BARREL, COWL LATCH
    BARREL, COWL LATCH
  • 18
    10-31312 SCREW, (#10-32 x 0.875), LATCH ASSEMBLY TO BARREL
    SCREW, (#10-32 x 0.875), LATCH ASSEMBLY TO BARREL
  • 19
    15222 BAR, ADJUSTMENT - COWL LATCH
    BAR, ADJUSTMENT - COWL LATCH
  • 20
    62629 BARREL, COWL LATCH
    BARREL, COWL LATCH
  • 21
    24-62624 SPRING, TENSION - COWL LATCH
    SPRING, TENSION - COWL LATCH
  • 22
    12-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, ADJUSTMENT BAR TO BARREL
    WASHER, (.192 x .375 x .0312) Stainless Steel, ADJUSTMENT BAR TO BARREL
  • 23
    11-859124 NUT, (#10-32) Stainless Steel, ADJUSTMENT BAR TO BARREL
    NUT, (#10-32) Stainless Steel, ADJUSTMENT BAR TO BARREL
  • 24
    2143-7254A3 FRONT COVER (MERCURY)
    FRONT COVER (MERCURY)
  • 24
    2143-7254A12 FRONT COVER (DARK GRAY)(MARINER)
    FRONT COVER (DARK GRAY)(MARINER)
  • 24
    2143-7254A12 FRONT COVER (LIGHT GRAY)(MARINER)
    FRONT COVER (LIGHT GRAY)(MARINER)
  • 25
    795511 BLANKET, SOUND ABSORBING
    BLANKET, SOUND ABSORBING
  • 26
    61158T HOOK, FRONT COVER
    HOOK, FRONT COVER
  • 27
    10-69570 SCREW, (#10-16 x .750), HOOK TO FRONT COVER
    SCREW, (#10-16 x .750), HOOK TO FRONT COVER
  • 28
    47341A11 ROPE AND HANDLE KIT, Manual/Emergency Start
    (FOR MANUAL STARTING ONLY)
    ROPE AND HANDLE KIT, Manual/Emergency Start
    (FOR MANUAL STARTING ONLY)
