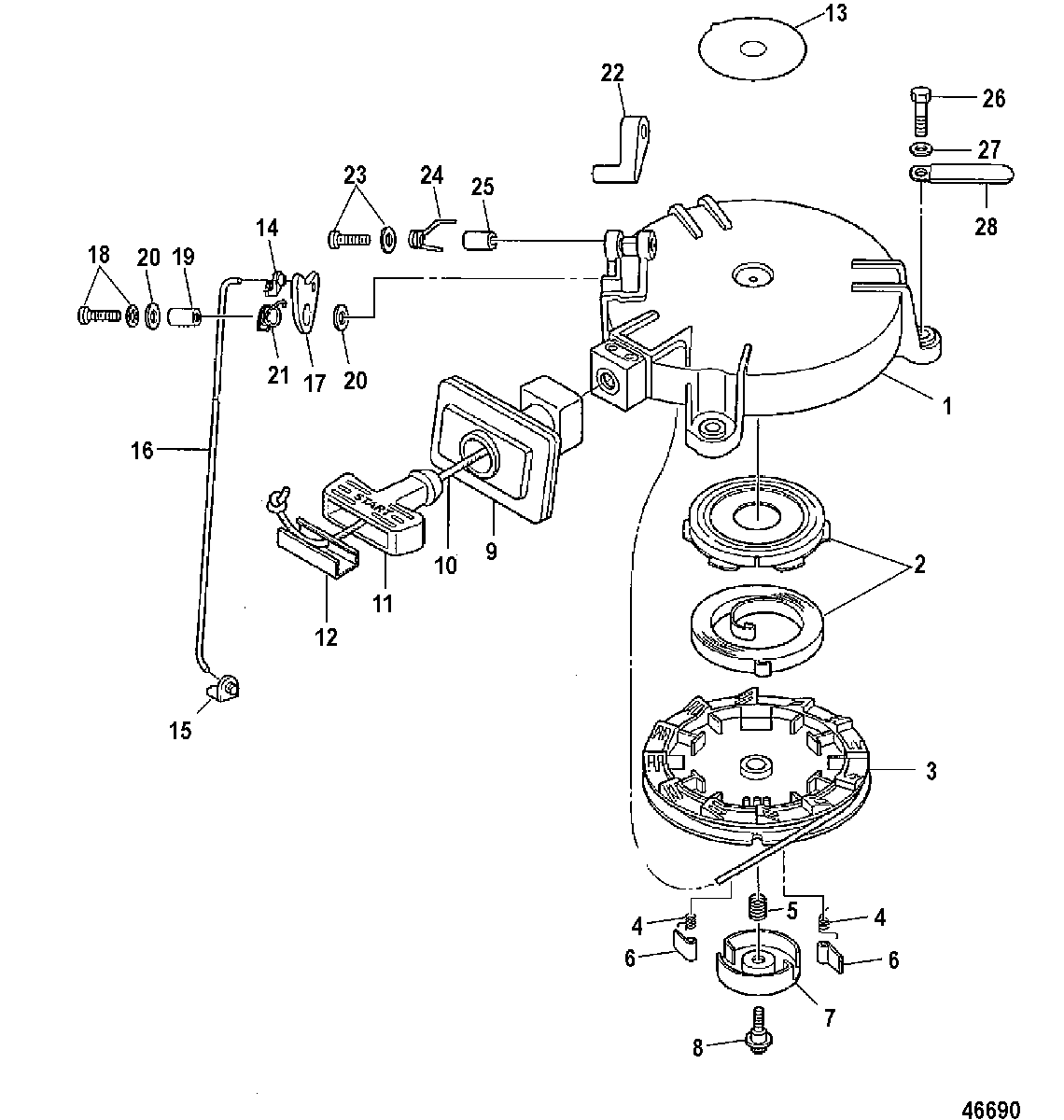

Recoil Starter для Mariner - 5 (4-STROKE) 0R411838 & Up
-
№АртикулНазвание
-
18M0056437 STARTER ASSEMBLY, RecoilSTARTER ASSEMBLY, Recoil
-
224-812645T10 SPRING SET, StarterSPRING SET, Starter
-
3812633002 SHEEVE, StarterSHEEVE, Starter
-
424-812634003 SPRING, ReturnSPRING, Return
-
524-812636001 SPRINGSPRING
-
68M0078324 RATCHETRATCHET
-
78M0078325 FRICTION PLATEFRICTION PLATE
-
810-812637001 BOLTBOLT
-
98M0056340 Plate, SealPlate, Seal
-
108M0110704 ROPEROPE
-
11804363001 HANDLE, StarterHANDLE, Starter
-
128M0084137 ROPE ANCHORROPE ANCHOR
-
13NSS NOT SOLD SEPARATE, Decal, Not Available at PrintingNOT SOLD SEPARATE, Decal, Not Available at Printing
-
1417643002 SNAP, Link RodSNAP, Link Rod
-
15176431 SNAP, Link RodSNAP, Link Rod
-
168M0056432 ROD, Starter LockROD, Starter Lock
-
178M0056338 CAM, Starter LockCAM, Starter Lock
-
1810-855544 SCREWSCREW
-
1923-855545001 COLLARCOLLAR
-
2012-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
2124-804366001 SPRING, Starter Lock CamSPRING, Starter Lock Cam
-
228M0056339 LATCH, Starter LockLATCH, Starter Lock
-
2310-8555449 SCREWSCREW
-
2424-812645007 SPRINGSPRING
-
2523-895130 COLLARCOLLAR
-
2610-810755004 BOLTBOLT
-
2713-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
2854-8M0130961 CLAMPCLAMP
