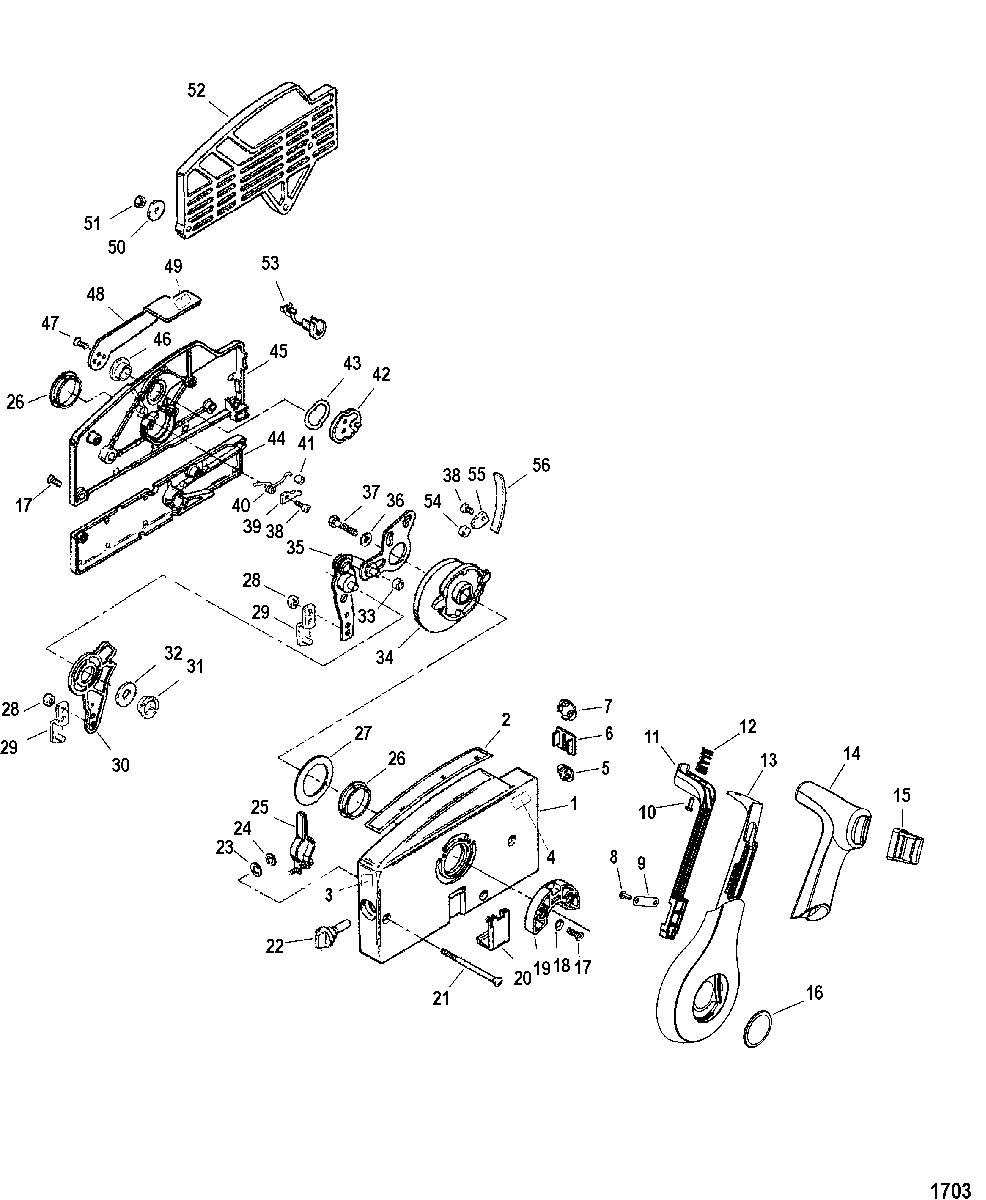

Remote Control 4000 Side Mount для Mariner - 5 (4-STROKE) 0R411838 & Up

  • №
    Артикул
    Название
  • -
    881170A8 REMOTE CONTROL, Manual Start - Non Power Trim
    No Ignition Switch
    REMOTE CONTROL, Manual Start - Non Power Trim
    No Ignition Switch
  • 1
    NSS NOT SOLD SEPARATE, Housing-Front
    NOT SOLD SEPARATE, Housing-Front
  • 2
    NSS NOT SOLD SEPARATE, Decal-F-N-R
    NOT SOLD SEPARATE, Decal-F-N-R
  • 3
    NSS NOT SOLD SEPARATE, Decal-Throttle Friction
    NOT SOLD SEPARATE, Decal-Throttle Friction
  • 4
    NSS NOT SOLD SEPARATE, Decal-Run/Off
    NOT SOLD SEPARATE, Decal-Run/Off
  • 5
    19-89774 PLUG, Key Switch Hole
    PLUG, Key Switch Hole
  • 6
    17192 PLUG, Stop Switch Hole
    PLUG, Stop Switch Hole
  • 7
    17191 PLUG, Wire Harness Hole
    PLUG, Wire Harness Hole
  • 8
    10-4005685 SCREW, (M4 x 10)
    SCREW, (M4 x 10)
  • 9
    16921 BRACKET, Lock Bar Support
    BRACKET, Lock Bar Support
  • 10
    10-87775510 SCREW, (M4 x 10)
    SCREW, (M4 x 10)
  • 11
    881138 LOCK BAR, Red
    LOCK BAR, Red
  • 12
    24-16924 SPRING
    SPRING
  • 13
    881148T04 HANDLE KIT
    HANDLE KIT
  • 14
    8811411 GRIP
    GRIP
  • 15
    881146 PLUG
    PLUG
  • 16
    881137A1 CAP/DECAL ASSEMBLY
    CAP/DECAL ASSEMBLY
  • 17
    10-40118107 SCREW, (M5 x 18)
    SCREW, (M5 x 18)
  • 18
    13-16923 LOCKWASHER, External
    LOCKWASHER, External
  • 19
    16899T HOLDER, Neutral Lock
    HOLDER, Neutral Lock
  • 20
    16917 COVER
    COVER
  • 21
    10-40116110T SCREW, (M6 x 110)
    SCREW, (M6 x 110)
  • 22
    881145 KNOB, Throttle Friction
    KNOB, Throttle Friction
  • 23
    12-16896 WASHER
    WASHER
  • 24
    53-13194 RING, Retaining
    RING, Retaining
  • 25
    16895 ARM ASSEMBLY, Brake
    ARM ASSEMBLY, Brake
  • 26
    23-16875 BEARING, (1.750 Inside Diameter)
    BEARING, (1.750 Inside Diameter)
  • 27
    12-16874 WASHER
    WASHER
  • 28
    11-401385 NUT, (M5) Stainless Steel
    NUT, (M5) Stainless Steel
  • 29
    54-85899A1 CLIP ASSEMBLY
    CLIP ASSEMBLY
  • 30
    NSS NOT SOLD SEPARATE, Gear Shift Assembly
    NOT SOLD SEPARATE, Gear Shift Assembly
  • 31
    23-16868 BEARING, (.750 Inside Diameter)
    BEARING, (.750 Inside Diameter)
  • 32
    12-16870 WASHER
    WASHER
  • 33
    16873 ROLLER, Cam
    ROLLER, Cam
  • 34
    NSS NOT SOLD SEPARATE, Drive Gear
    NOT SOLD SEPARATE, Drive Gear
  • 35
    NSS NOT SOLD SEPARATE, Plate/Stud Assembly
    NOT SOLD SEPARATE, Plate/Stud Assembly
  • 36
    12-12038 WASHER
    WASHER
  • 37
    10-4007154 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 38
    10-4005683 SCREW, (M4 x 6)
    SCREW, (M4 x 6)
  • 39
    16886 CLIP
    CLIP
  • 40
    24-16888 SPRING
    SPRING
  • 41
    16884 ROLLER
    ROLLER
  • 42
    16883 DRUM ASSEMBLY
    DRUM ASSEMBLY
  • 43
    13-16922 WAVE WASHER
    WAVE WASHER
  • 44
    NSS NOT SOLD SEPARATE, Cover-Bottom
    NOT SOLD SEPARATE, Cover-Bottom
  • 45
    NSS NOT SOLD SEPARATE, Cover-Top
    NOT SOLD SEPARATE, Cover-Top
  • 46
    23-16887 BEARING, (.810 Inside Diameter)
    BEARING, (.810 Inside Diameter)
  • 47
    10-40118106 SCREW, (M5 x 12)
    SCREW, (M5 x 12)
  • 48
    16919A1 LEVER ASSEMBLY
    LEVER ASSEMBLY
  • 49
    NSS NOT SOLD SEPARATE, Decal-Lift for Fast Idle
    NOT SOLD SEPARATE, Decal-Lift for Fast Idle
  • 50
    12-35280 WASHER, (.255 x .620 x .030) Stainless Steel
    WASHER, (.255 x .620 x .030) Stainless Steel
  • 51
    11-401196 NUT, (M6)
    NUT, (M6)
  • 52
    17063T SPACER
    SPACER
  • 53
    23-71942 BUSHING
    BUSHING
  • 54
    16879 ROLLER, Detent
    ROLLER, Detent
  • 55
    16880 CLIP, Detent
    CLIP, Detent
  • 56
    24-16882 SPRING, Detent
    SPRING, Detent
