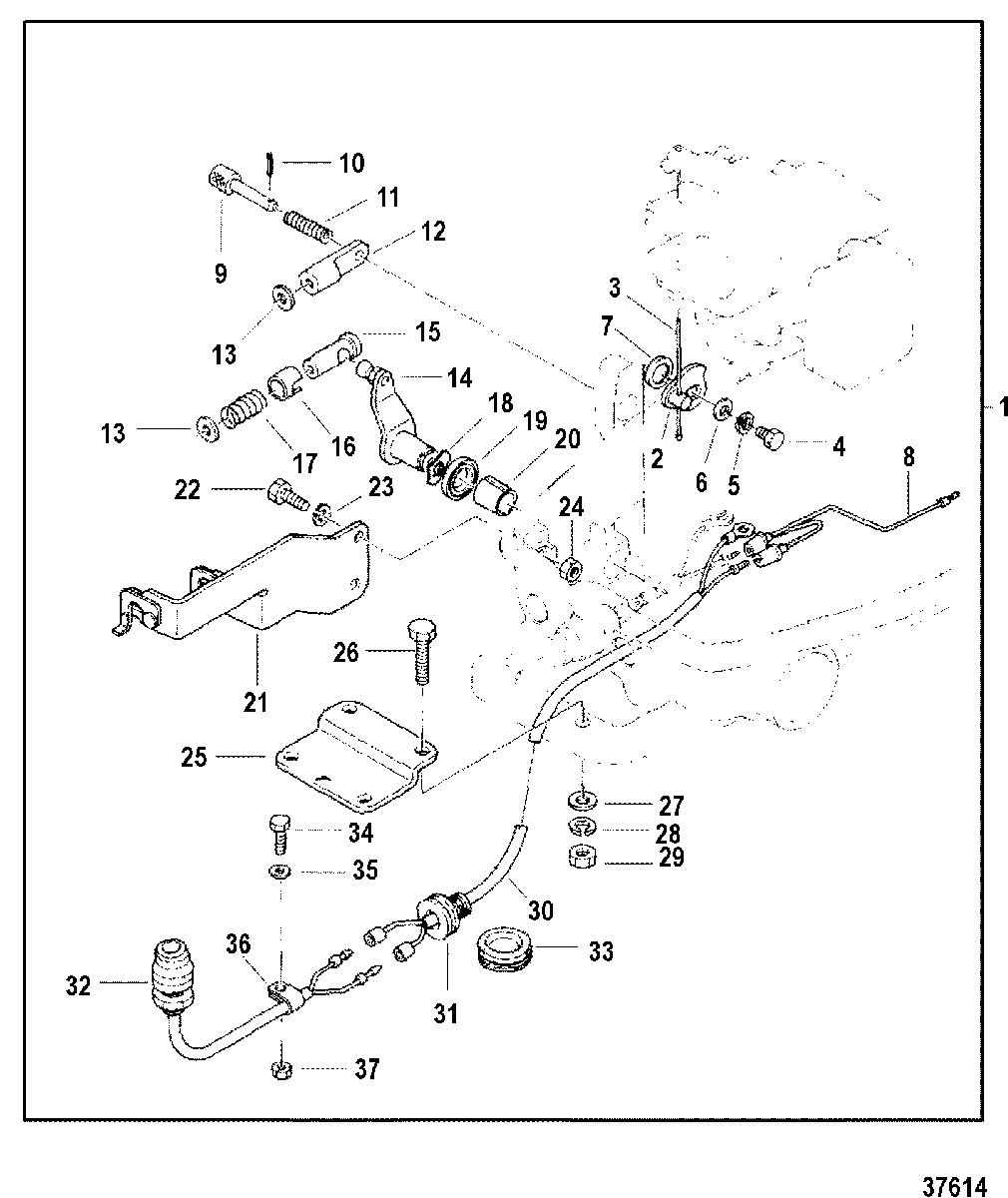

REMOTE CONTROL ATTACHING KIT для Mariner - 4/5 0A855097 THRU 0G710612

  • №
    Артикул
    Название
  • 1
    16840A2 ATTACHING KIT, Remote Control
    ATTACHING KIT, Remote Control
  • 2
    16848 LEVER
    LEVER
  • 3
    17034 WIRE, Throttle
    WIRE, Throttle
  • 4
    10-16223 BOLT, (M6 x 14)
    BOLT, (M6 x 14)
  • 5
    13-400256 LOCKWASHER, (M6)
    LOCKWASHER, (M6)
  • 6
    12-953921 WASHER, Stainless Steel
    WASHER, Stainless Steel
  • 4
    10-162111 BOLT
    (SEE NOTE 1)
    BOLT
    (SEE NOTE 1)
  • 6
    12-953921 WASHER, Stainless Steel
    (SEE NOTE 1)
    WASHER, Stainless Steel
    (SEE NOTE 1)
  • 7
    23-16849 COLLAR
    (SEE NOTE 1)
    COLLAR
    (SEE NOTE 1)
  • 8
    84-17035 HARNESS ASSEMBLY (DUAL STOP SWITCH)
    HARNESS ASSEMBLY (DUAL STOP SWITCH)
  • 9
    17-17031 PIN, Lock
    PIN, Lock
  • 10
    17-17033 PIN
    PIN
  • 11
    24-17032 SPRING
    SPRING
  • 12
    17030 SLEEVE
    SLEEVE
  • 13
    12-17029 WASHER
    WASHER
  • 14
    16847 LEVER, Throttle
    LEVER, Throttle
  • 15
    17026 BRACKET
    BRACKET
  • 16
    17027 CAP
    CAP
  • 17
    24-17028 SPRING
    SPRING
  • 18
    13-16221 WAVE WASHER
    WAVE WASHER
  • 19
    26-16219 SEAL
    SEAL
  • 20
    23-16220 BUSHING
    BUSHING
  • 21
    17023 BRACKET
    BRACKET
  • 22
    10-16832 BOLT, (M6 x 16)
    BOLT, (M6 x 16)
  • 23
    13-400256 LOCKWASHER, (M6)
    LOCKWASHER, (M6)
  • 24
    11-400212 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 25
    17024 PLATE, Steering Hook
    SN# USA-0G574242/BEL-9973100 & Up
    PLATE, Steering Hook
    SN# USA-0G574242/BEL-9973100 & Up
  • 25
    17024 PLATE, Steering Hook
    SN# USA-0G574241/BEL-9973099 & Below
    PLATE, Steering Hook
    SN# USA-0G574241/BEL-9973099 & Below
  • 26
    10-4000354 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 27
    12-16192 WASHER
    WASHER
  • 28
    13-17025 LOCKWASHER
    LOCKWASHER
  • 29
    11-400213 NUT, (M8) Stainless Steel
    NUT, (M8) Stainless Steel
  • 30
    84-17162 HARNESS ASSEMBLY (5.9M)
    HARNESS ASSEMBLY (5.9M)
  • 31
    25-16823 GROMMET
    GROMMET
  • 32
    87-823037A2 SWITCH ASSEMBLY, Stop
    USE WHERE APPLICABLE
    SWITCH ASSEMBLY, Stop
    USE WHERE APPLICABLE
  • 33
    25-16226 GROMMET
    USE WHERE APPLICABLE
    GROMMET
    USE WHERE APPLICABLE
  • 34
    10-17174 BOLT
    USE WHERE APPLICABLE
    BOLT
    USE WHERE APPLICABLE
  • 35
    12-8M0108373 WASHER, Stainless Steel
    USE WHERE APPLICABLE
    WASHER, Stainless Steel
    USE WHERE APPLICABLE
  • 36
    54-17169 CLAMP
    USE WHERE APPLICABLE
    CLAMP
    USE WHERE APPLICABLE
  • 37
    11-16081 NUT, Stainless Steel
    USE WHERE APPLICABLE
    NUT, Stainless Steel
    USE WHERE APPLICABLE
