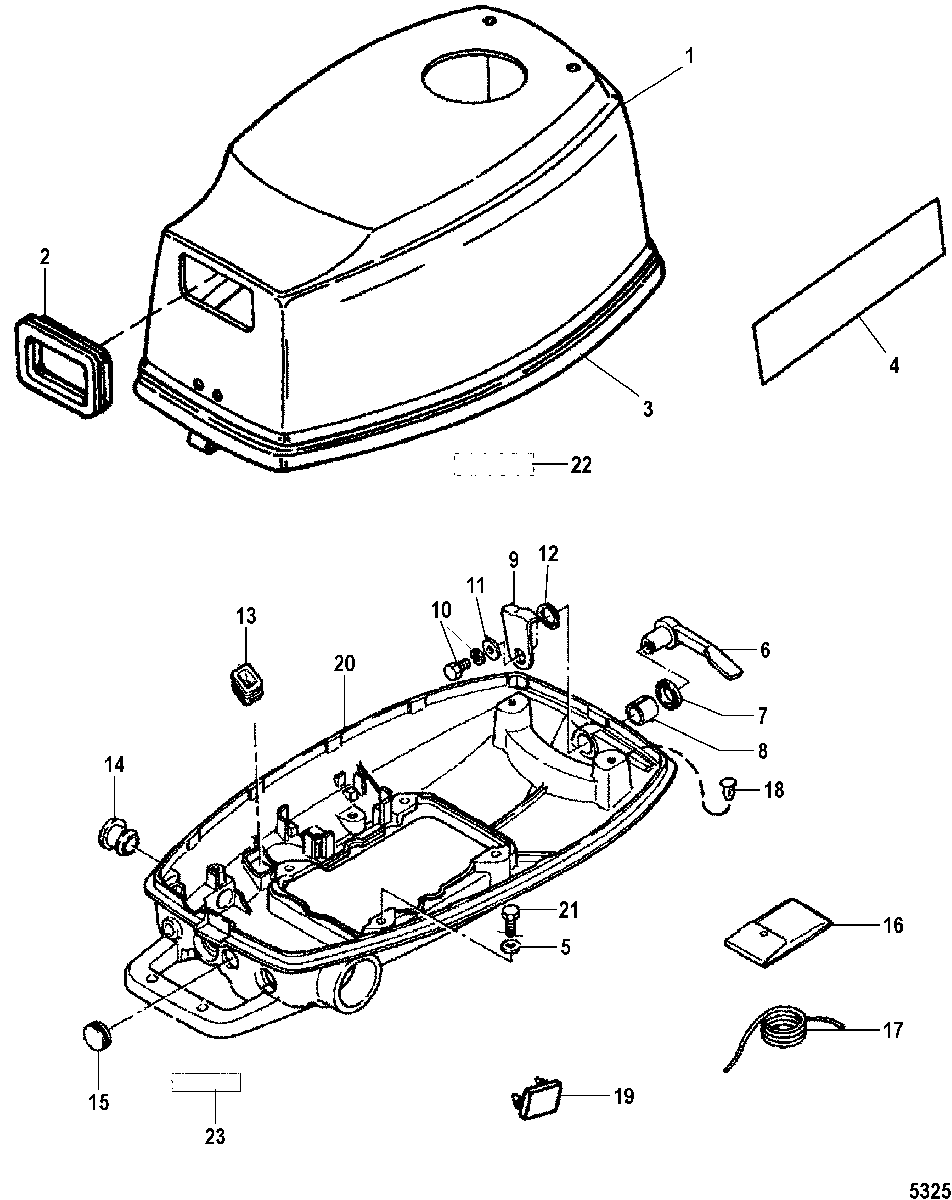

COWLING для Mariner - 4/5 0A855097 THRU 0G710612

  • №
    Артикул
    Название
  • 1
    2189-9626A1 TOP COWL ASSEMBLY
    (BLACK)
    TOP COWL ASSEMBLY
    (BLACK)
  • 1
    100-8M0135938 TOP COWL ASSEMBLY
    (SILVER - 4/5) W/HOLE FOR FUEL TANK)
    TOP COWL ASSEMBLY
    (SILVER - 4/5) W/HOLE FOR FUEL TANK)
  • 1
    2189-815039A2 TOP COWL ASSEMBLY
    (SILVER - 5)
    TOP COWL ASSEMBLY
    (SILVER - 5)
  • 2
    25-162282 SEAL, Rubber
    SN# USA-0G574242/BEL-9973100 & Up
    SEAL, Rubber
    SN# USA-0G574242/BEL-9973100 & Up
  • 2
    25-162282 GROMMET
    SN# USA-0G574241/BEL-9973099 & Below
    GROMMET
    SN# USA-0G574241/BEL-9973099 & Below
  • 3
    8M0130233 SEAL, Rubber
    SEAL, Rubber
  • 4
    810780 BAFFLE, Sound
    BAFFLE, Sound
  • 5
    12-16826 WASHER, Stainless Steel
    WASHER, Stainless Steel
  • 6
    162181 HOOK LEVER
    (BLACK)
    HOOK LEVER
    (BLACK)
  • 6
    8150361 HOOK LEVER
    (GRAY)
    HOOK LEVER
    (GRAY)
  • 7
    26-16219 SEAL
    SEAL
  • 8
    23-16220 BUSHING
    BUSHING
  • 9
    16222 COVER HOOK
    COVER HOOK
  • 10
    10-162111 BOLT
    BOLT
  • 11
    12-953921 WASHER, Stainless Steel
    WASHER, Stainless Steel
  • 12
    13-16221 WAVE WASHER
    WAVE WASHER
  • 13
    25-16231 GROMMET
    GROMMET
  • 14
    25-16225 GROMMET
    GROMMET
  • 15
    25-16226 GROMMET
    GROMMET
  • 16
    91-16229 TOOL KIT
    TOOL KIT
  • 17
    50-16230 SAFETY ROPE
    SAFETY ROPE
  • 18
    19-18670 PLUG
    (GRAY 5 H.P.) (NOT USED W/DUAL FUEL SYSTEM)
    PLUG
    (GRAY 5 H.P.) (NOT USED W/DUAL FUEL SYSTEM)
  • 19
    815037 PLUG
    (NOT USED W/BLACK 5)
    PLUG
    (NOT USED W/BLACK 5)
  • 20
    2189-825984A2 BOTTOM COWL
    (BLACK)
    BOTTOM COWL
    (BLACK)
  • 20
    2189-815035A2 BOTTOM COWL
    (GRAY )
    BOTTOM COWL
    (GRAY )
  • 21
    10-16832 BOLT, (M6 x 16)
    BOLT, (M6 x 16)
  • 22
    37-855577A2 DECAL, EPA Label Information (INSIDE TOP COVER)
    (1998)
    DECAL, EPA Label Information (INSIDE TOP COVER)
    (1998)
  • 23
    37-16227 DECAL, Fuel Cock (USE WHERE APPLICABLE)
    DECAL, Fuel Cock (USE WHERE APPLICABLE)
