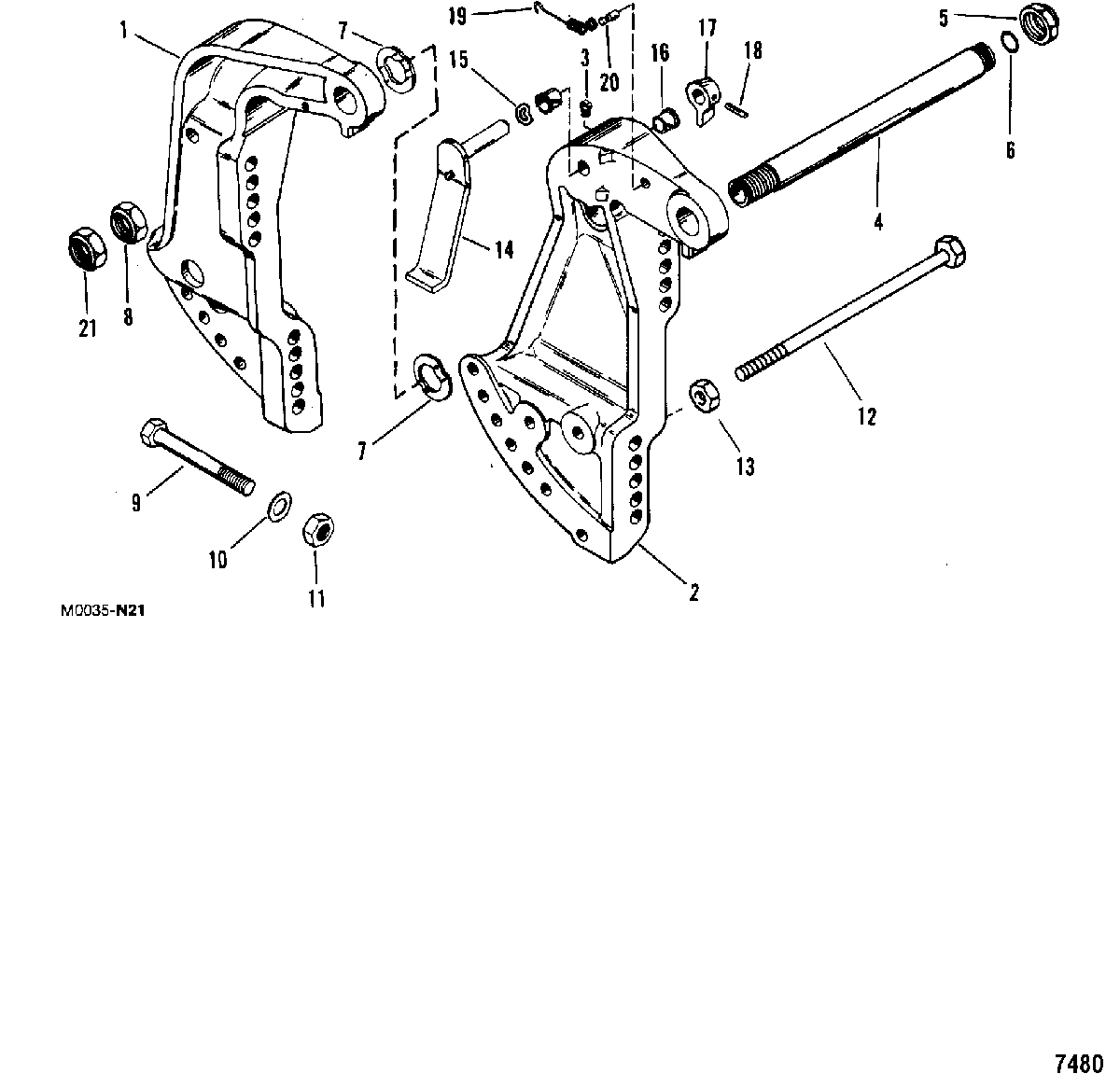

Transom Bracket(Power Trim) для Mariner - 45 (4 CYL.) 9466692 & Up

  • №
    Артикул
    Название
  • 1
    3401-8718F7 BRACKET ASSEMBLY, Transom, Starboard - Black
    BRACKET ASSEMBLY, Transom, Starboard - Black
  • 2
    3400-8716A8 BRACKET ASSEMBLY, Transom, Port - Black
    BRACKET ASSEMBLY, Transom, Port - Black
  • 1
    3401-8718F8 BRACKET ASSEMBLY, Transom, Starboard - Gray
    BRACKET ASSEMBLY, Transom, Starboard - Gray
  • 2
    3400-8716A9 BRACKET ASSEMBLY, Transom, Port - Gray
    BRACKET ASSEMBLY, Transom, Port - Gray
  • 3
    22-98727 FITTING, Grease, Port Tramsom Bracket
    FITTING, Grease, Port Tramsom Bracket
  • 4
    826125A1 TILT TUBE
    TILT TUBE
  • 5
    11-82671327 NUT, Tilt Tube
    (Black)
    NUT, Tilt Tube
    (Black)
  • 5
    11-82671327 NUT, Tilt Tube
    (Gray)
    NUT, Tilt Tube
    (Gray)
  • 6
    25-45711 O-RING, (.612 x .103), Tilt Tube
    O-RING, (.612 x .103), Tilt Tube
  • 7
    13-88750 WASHER, Tilt Tube
    WASHER, Tilt Tube
  • 8
    11-858869 NUT, (.875-14), Tilt Tube (7.57)
    NUT, (.875-14), Tilt Tube (7.57)
  • 9
    10-677551 SCREW, (.500-20 x 4.500), Mounting Bracket to Tramsom
    SCREW, (.500-20 x 4.500), Mounting Bracket to Tramsom
  • 10
    12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel, Mounting Bracket Bolt
    WASHER, (1.5 x 3.05 x 0.13) Stainless Steel, Mounting Bracket Bolt
  • 11
    11-91962 NUT, (.500-20), Mounting Bracket Bolt
    NUT, (.500-20), Mounting Bracket Bolt
  • 12
    10-96930A1 BOLT ASSEMBLY, Tilt Lock
    BOLT ASSEMBLY, Tilt Lock
  • 13
    11-23161 NUT, (.375-24), Bolt
    NUT, (.375-24), Bolt
  • 14
    8M0115104 LEVER ASSEMBLY, Tilt Lock
    LEVER ASSEMBLY, Tilt Lock
  • 15
    13-99611 WAVE WASHER, Tilt Lever
    WAVE WASHER, Tilt Lever
  • 16
    23-65830 NYLINER, Tilt Lever
    NYLINER, Tilt Lever
  • 17
    99633 KNOB, Tilt Lock Lever
    (Black)
    KNOB, Tilt Lock Lever
    (Black)
  • 17
    99633 KNOB, Tilt Lock Lever
    (Gray)
    KNOB, Tilt Lock Lever
    (Gray)
  • 18
    17-99615 PIN, Groove
    PIN, Groove
  • 19
    24-99622 SPRING
    SPRING
  • 20
    17-99604 PIN, Groove
    PIN, Groove
  • 21
    11-8M0041651 NUT, (.875-14)
    NUT, (.875-14)
