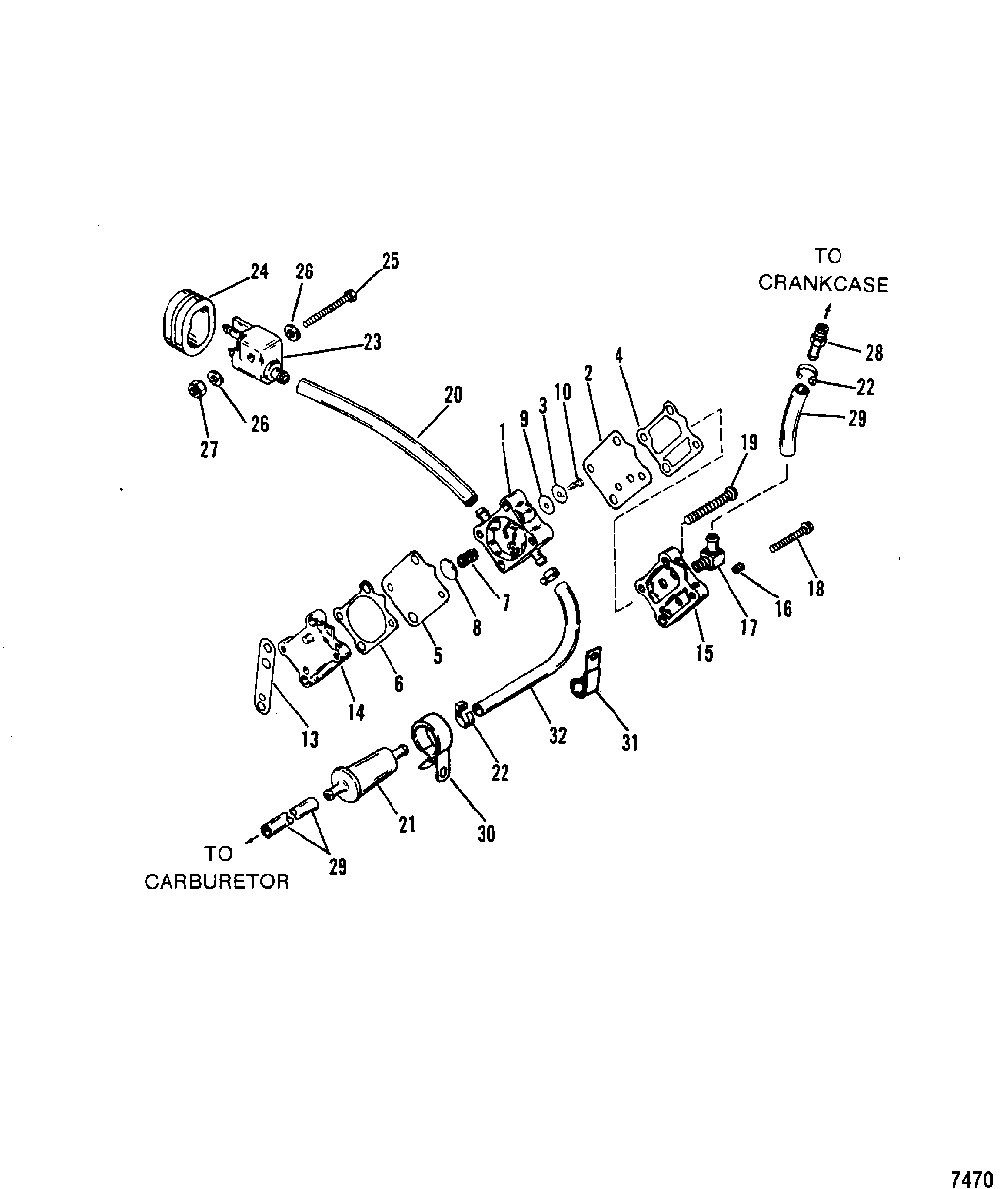

Fuel Pump для Mariner - 45 (4 CYL.) 9466692 & Up

  • №
    Артикул
    Название
  • 1
    14360A78 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 2
    21-857005A1 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 3
    NSS NOT SOLD SEPARATE, Check Valve - Rubber
    NOT SOLD SEPARATE, Check Valve - Rubber
  • 4
    NSS NOT SOLD SEPARATE, Gasket - Boost
    NOT SOLD SEPARATE, Gasket - Boost
  • 5
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 6
    NSS NOT SOLD SEPARATE, Gasket - Pulse
    NOT SOLD SEPARATE, Gasket - Pulse
  • 7
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 8
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 9
    NSS NOT SOLD SEPARATE, Disc - Rubber
    NOT SOLD SEPARATE, Disc - Rubber
  • 10
    NSS NOT SOLD SEPARATE, Retainer
    NOT SOLD SEPARATE, Retainer
  • 13
    27-987691 GASKET, Base
    GASKET, Base
  • 14
    144303 BASE, Fuel Pump
    BASE, Fuel Pump
  • 15
    98775A4 PLATE, Fuel Pump
    PLATE, Fuel Pump
  • 16
    22-390721 PLUG, (1/8 Inch Brass)
    PLUG, (1/8 Inch Brass)
  • 17
    22-99498 FITTING
    FITTING
  • 18
    10-4000310 SCREW, (M5 x 40), Fuel Pump
    SCREW, (M5 x 40), Fuel Pump
  • 19
    10-16452 SCREW, (#12-24 x 2.00), Fuel Pump to Crankcase
    SCREW, (#12-24 x 2.00), Fuel Pump to Crankcase
  • 20
    32-8M0108349 TUBING
    TUBING
  • 21
    35-816296Q2 FILTER, Fuel
    FILTER, Fuel
  • 22
    54-816311T TIE STRAP, Fuel Tubing
    TIE STRAP, Fuel Tubing
  • 23
    22-816856Q3 CONNECTOR, Fuel
    (Metal Connector)
    CONNECTOR, Fuel
    (Metal Connector)
  • 24
    25-14579 GROMMET, Fuel Connector
    (Metal Connector)
    GROMMET, Fuel Connector
    (Metal Connector)
  • 25
    10-67916 SCREW, (.250-28 x 2.00), Fuel Connector
    (Metal Connector)
    SCREW, (.250-28 x 2.00), Fuel Connector
    (Metal Connector)
  • 26
    12-71055 WASHER, Fuel Connector Screw
    (Metal Connector)
    WASHER, Fuel Connector Screw
    (Metal Connector)
  • 27
    11-35888 NUT, (.250-28) Stainless Steel, Fuel Connector Screw
    (Metal Connector)
    NUT, (.250-28) Stainless Steel, Fuel Connector Screw
    (Metal Connector)
  • 23
    22-816856Q3 CONNECTOR, Fuel
    (Plastic Connector)
    CONNECTOR, Fuel
    (Plastic Connector)
  • 24
    25-15102001 GROMMET, Fuel Connector
    (Plastic Connector)
    GROMMET, Fuel Connector
    (Plastic Connector)
  • 25
    10-69029 SCREW, (.250-28 x 1.750), Fuel Connector
    (Plastic Connector)
    SCREW, (.250-28 x 1.750), Fuel Connector
    (Plastic Connector)
  • 27
    11-36069 NUT, Fuel Connector Screw
    (Plastic Connector)
    NUT, Fuel Connector Screw
    (Plastic Connector)
  • 28
    22-64705 FITTING, Fuel Line
    FITTING, Fuel Line
  • 29
    32-8M0108355 LINE, (57.00 Inches Bulk)
    LINE, (57.00 Inches Bulk)
  • 30
    54-633001 CLAMP, Fuel Filter
    CLAMP, Fuel Filter
  • 31
    54-55098 J CLIP, Fuel Line
    J CLIP, Fuel Line
  • 32
    32-18164 HOSE
    HOSE
  • -
    27-85491A90 GASKET SET
    GASKET SET
