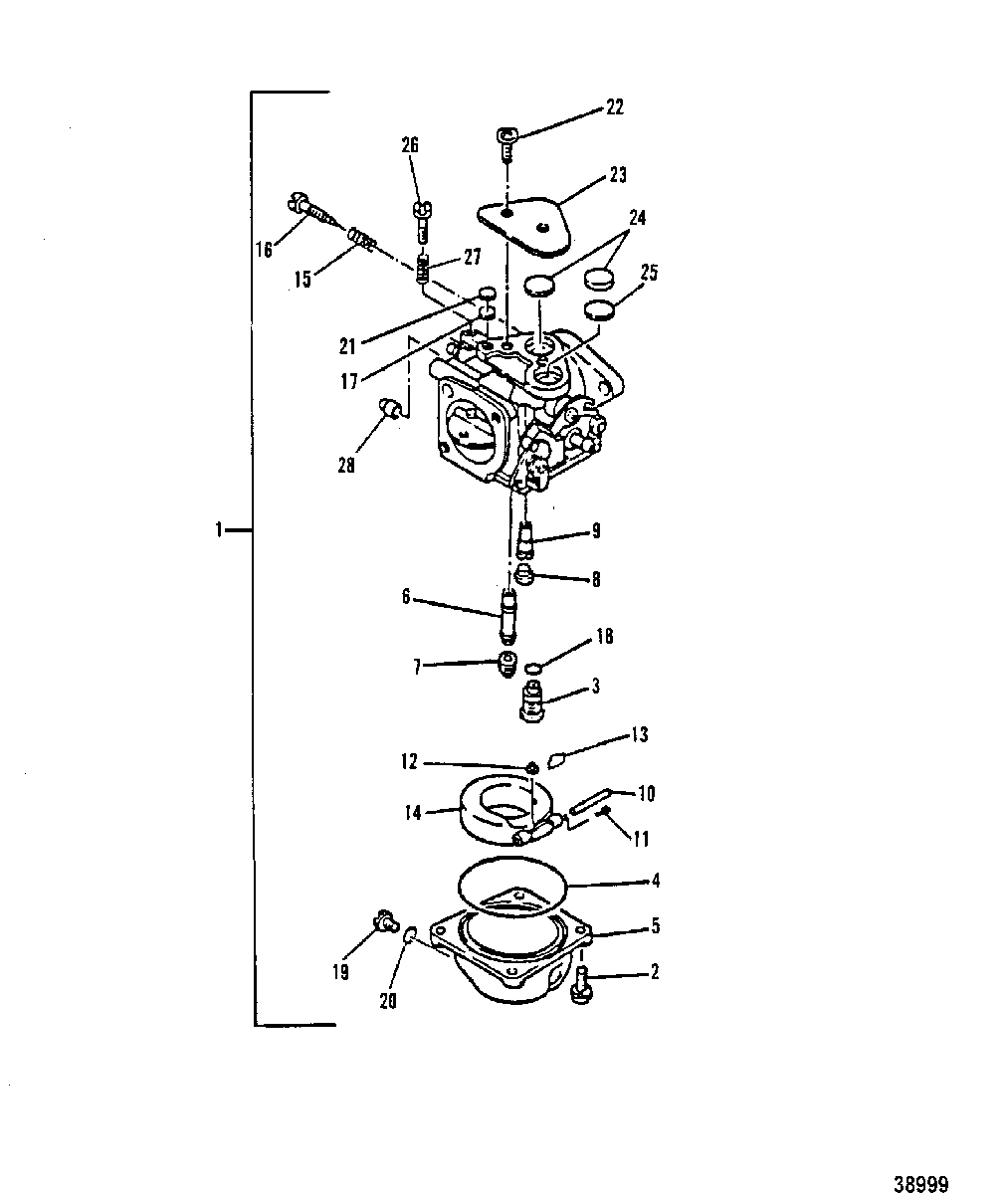

CARBURETOR для Mariner - 40C (TWIN CARB) (W/AUTO-BLEND) 6E9-423163 THRU 450000 (EL)

  • №
    Артикул
    Название
  • 1
    1383-9660M CARBURETOR ASSEMBLY (UPPER)
    CARBURETOR ASSEMBLY (UPPER)
  • 1
    1383-9676M CARBURETOR ASSEMBLY (LOWER)
    CARBURETOR ASSEMBLY (LOWER)
  • 2
    10-11796M SCREW, WITH WASHER
    SCREW, WITH WASHER
  • 3
    17050M NEEDLE VALVE SET
    NEEDLE VALVE SET
  • 4
    25-83362M O-RING
    O-RING
  • 5
    94495M BODY, FLOAT CHAMBER
    BODY, FLOAT CHAMBER
  • 6
    97727M NOZZLE, MAIN
    NOZZLE, MAIN
  • 7
    42437M JET, MAIN (# 170)
    JET, MAIN (# 170)
  • 8
    22-8M0080455 CAP
    CAP
  • 9
    42438M JET, SLOW (# 75)
    JET, SLOW (# 75)
  • 10
    17-97730M PIN, ARM
    PIN, ARM
  • 11
    10-82500M SCREW
    SCREW
  • 12
    17-92639M PIN, Float, VALVE
    PIN, Float, VALVE
  • 13
    54-8M0120624 CLIP
    CLIP
  • 14
    891730A01 FLOAT
    FLOAT
  • 15
    24-94499M SPRING
    SPRING
  • 16
    10-17067M SCREW, ADJUSTING
    SCREW, ADJUSTING
  • 17
    97732M PLATE
    PLATE
  • 18
    25-97070M O-RING
    O-RING
  • 19
    10-81293M SCREW, Drain
    SCREW, Drain
  • 20
    25-94498M O-RING
    O-RING
  • 21
    97733M PACKING
    PACKING
  • 22
    10-19147M SCREW
    SN# M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & Up
    SCREW
    SN# M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & Up
  • 22
    10-83371M SCREW
    SN# M-008625, ML-311888, E-105663, EL-428357, ETL-502265 & Below
    SCREW
    SN# M-008625, ML-311888, E-105663, EL-428357, ETL-502265 & Below
  • 23
    97734M PLATE
    PLATE
  • 24
    27-97735M GASKET
    GASKET
  • 25
    97736M PLATE
    PLATE
  • 26
    10-81277M SCREW, STOP (LOWER)
    SCREW, STOP (LOWER)
  • 27
    24-82080M SPRING (LOWER)
    SPRING (LOWER)
  • 28
    19233M COLLAR (LOWER)
    SN# M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & Up
    COLLAR (LOWER)
    SN# M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & Up
  • 28
    83370M COLLAR (LOWER) (M-008625 ML-311888 E-105663 EL-428357 ETL-5)
    ETL-502265 BELOW SN# 00000000 THRU 00008625 SN# M-008625, ML-311888, E-105663, EL-428357, ETL-502265 & Below
    COLLAR (LOWER) (M-008625 ML-311888 E-105663 EL-428357 ETL-5)
    ETL-502265 BELOW SN# 00000000 THRU 00008625 SN# M-008625, ML-311888, E-105663, EL-428357, ETL-502265 & Below
  • -
    17068M REPAIR KIT, Carburetor
    REPAIR KIT, Carburetor
