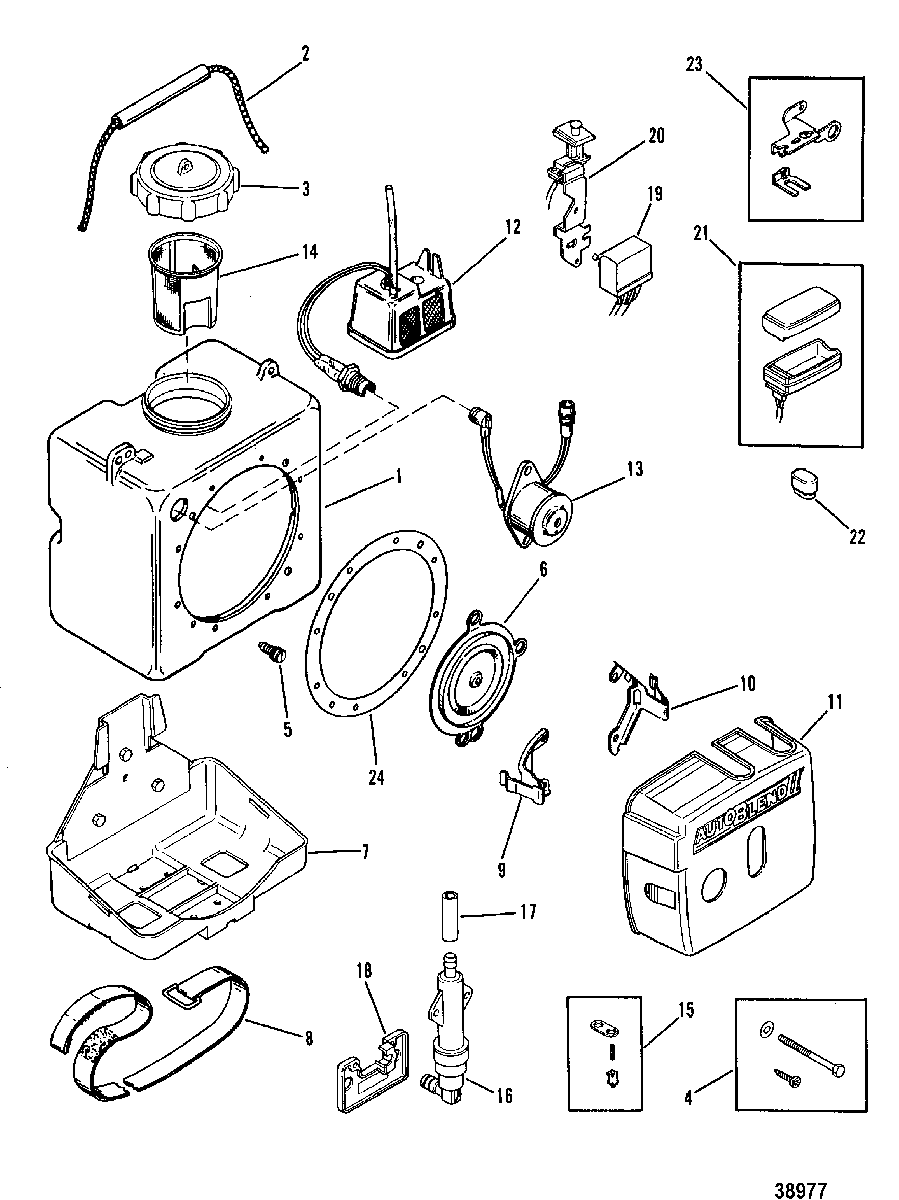

AUTO-BLEND для Mariner - 40C (TWIN CARB) (W/AUTO-BLEND) 6E9-423163 THRU 450000 (EL)

  • №
    Артикул
    Название
  • -
    130195 AUTO BLEND ASSEMBLY
    AUTO BLEND ASSEMBLY
  • 1
    16612 TANK KIT, Oil
    TANK KIT, Oil
  • 2
    13996 HANDLE KIT
    HANDLE KIT
  • 3
    36-16619 CAP, OIL TANK
    CAP, OIL TANK
  • 4
    16614 HARDWARE KIT
    HARDWARE KIT
  • 5
    19-13979 PLUG KIT, Drain
    PLUG KIT, Drain
  • 6
    16611 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 7
    16620 BRACKET KIT, Mounting
    BRACKET KIT, Mounting
  • 8
    13993 BAND
    BAND
  • 9
    13983 BRACKET (LEFT)
    BRACKET (LEFT)
  • 10
    13984 BRACKET (RIGHT)
    BRACKET (RIGHT)
  • 11
    16626 COVER
    COVER
  • 12
    35-16624 SENSOR KIT, Oil Filter And Level
    SENSOR KIT, Oil Filter And Level
  • 13
    16625 HORN KIT
    HORN KIT
  • 14
    16618 STRAINER, Oil
    STRAINER, Oil
  • 15
    21-16615 CHECK VALVE KIT
    CHECK VALVE KIT
  • 16
    35-18576 FILTER KIT, Fuel
    FILTER KIT, Fuel
  • 17
    32-13992 VINYL TUBE
    VINYL TUBE
  • 18
    16621 PLATE
    PLATE
  • 19
    16627 MODULE KIT
    MODULE KIT
  • 20
    16628 TEST BUTTON KIT
    TEST BUTTON KIT
  • 21
    16629 CASE KIT, Battery (USE 9 VOLT BATTERY)
    CASE KIT, Battery (USE 9 VOLT BATTERY)
  • 22
    16630 GROMMET KIT
    GROMMET KIT
  • 23
    16631 BRACKET KIT
    BRACKET KIT
  • 24
    27-16616 GASKET KIT
    GASKET KIT
