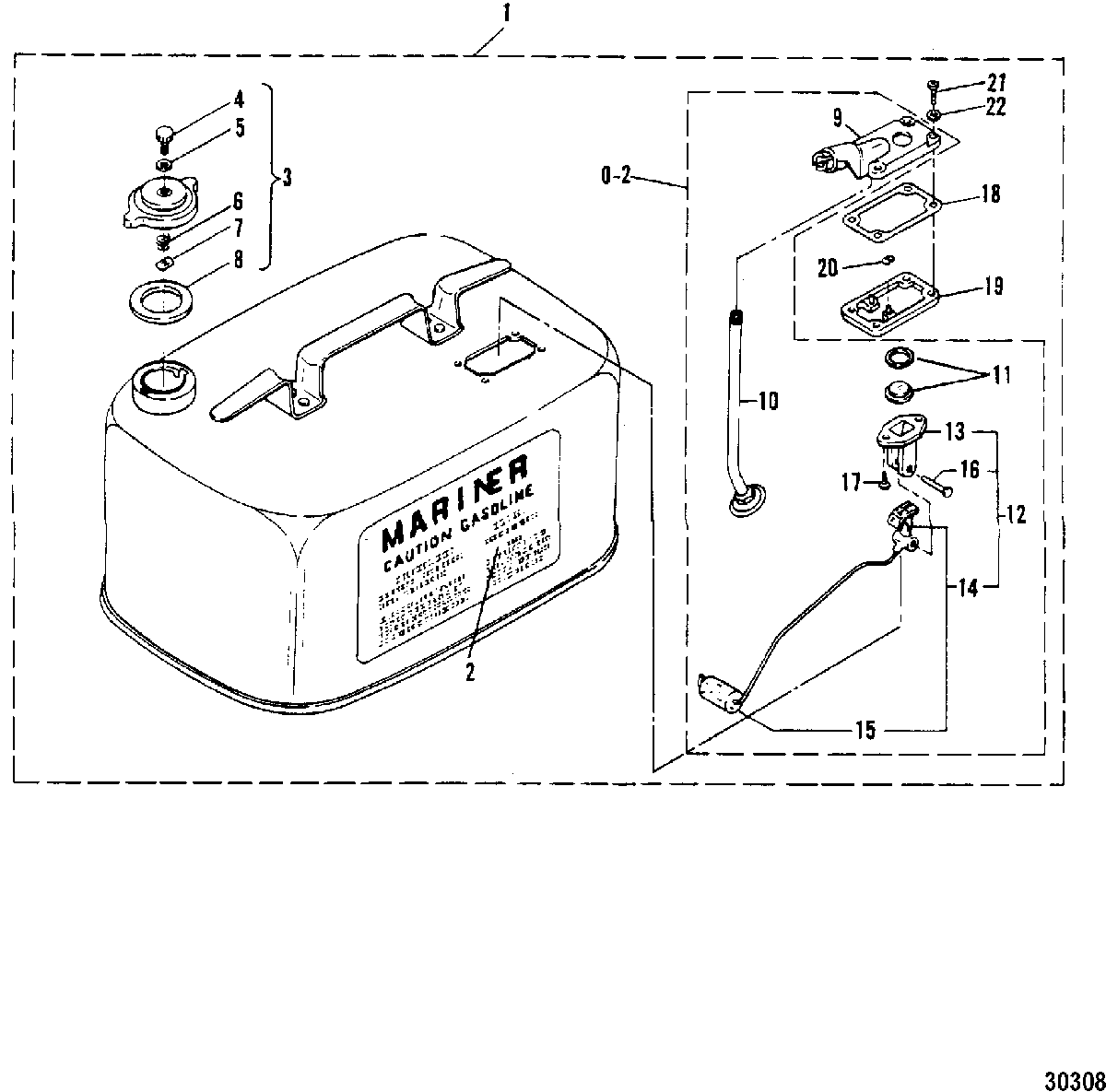

FUEL TANK, Not Original Equipment для Mariner - 40C (TWIN CARB) (W/AUTO-BLEND) 6E9-007666 THRU 6E9-015000 (M)

  • №
    Артикул
    Название
  • 1
    1259-812410A1 TANK ASSEMBLY, Fuel, COMPLETE (6 GALLON)
    TANK ASSEMBLY, Fuel, COMPLETE (6 GALLON)
  • 2
    37-13921 DECAL, FUEL TANK
    DECAL, FUEL TANK
  • 3
    36-18962M CAP ASSEMBLY, Filler
    CAP ASSEMBLY, Filler
  • 4
    10-25575 SCREW, VENT-FILLER CAP
    SCREW, VENT-FILLER CAP
  • 5
    12-49221 WASHER, VENT SCREW
    WASHER, VENT SCREW
  • 6
    24-22227 SPRING, TENSION-VENT SCREW
    SPRING, TENSION-VENT SCREW
  • 7
    11-28587 NUT, SPEED-SPRING RETAINER
    NUT, SPEED-SPRING RETAINER
  • 8
    27-41065 GASKET, FILLER CAP TO FUEL TANK
    GASKET, FILLER CAP TO FUEL TANK
  • 0-2
    64841A1 CONNECTOR/GAUGE ASSEMBLY, COMPLETE
    CONNECTOR/GAUGE ASSEMBLY, COMPLETE
  • 9
    17792A1 COVER, FUEL TANK
    COVER, FUEL TANK
  • 10
    32-75239 TUBE
    TUBE
  • 11
    98542A1 WINDOW ASSEMBLY, FUEL GAUGE
    WINDOW ASSEMBLY, FUEL GAUGE
  • 12
    28897A2 GAUGE ASSEMBLY, Fuel, COMPLETE
    GAUGE ASSEMBLY, Fuel, COMPLETE
  • 13
    20430 RETAINER, FUEL GAUGE
    RETAINER, FUEL GAUGE
  • 14
    28897A1 INDICATOR AND FLOAT ASSEMBLY
    INDICATOR AND FLOAT ASSEMBLY
  • 15
    99274 FLOAT, FUEL GAUGE
    FLOAT, FUEL GAUGE
  • 16
    17-20426 RIVET, INDICATOR TO RETAINER
    RIVET, INDICATOR TO RETAINER
  • 17
    10-62568 SCREW, (#10-16 x .375), RETAINER TO FUEL TANK COVER
    SCREW, (#10-16 x .375), RETAINER TO FUEL TANK COVER
  • 18
    27-28862 GASKET, COVER ASSEMBLY TO FRAME
    GASKET, COVER ASSEMBLY TO FRAME
  • 19
    28860 FRAME, RETAINING-FUEL TANK COVER
    FRAME, RETAINING-FUEL TANK COVER
  • 20
    11-28903 NUT, RETAINING FRAME TO FUEL TANK
    NUT, RETAINING FRAME TO FUEL TANK
  • 21
    10-20411 SCREW, (.190-24 x .62), FUEL TANK COVER TO FUEL TANK
    SCREW, (.190-24 x .62), FUEL TANK COVER TO FUEL TANK
  • 22
    12-29070 WASHER, FUEL TANK COVER FASTENING SCREW
    WASHER, FUEL TANK COVER FASTENING SCREW
