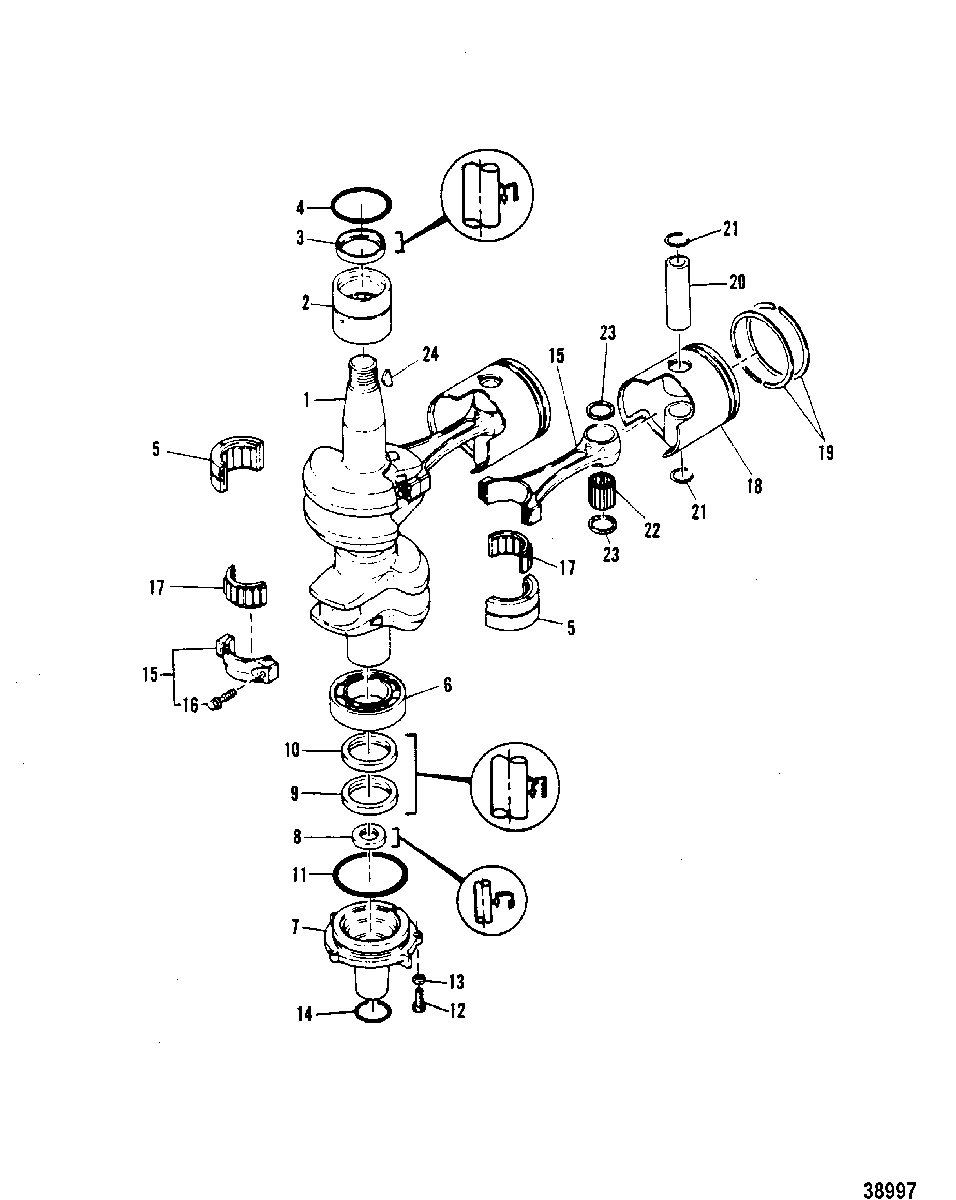

CRANKSHAFT AND PISTON для Mariner - 40C (TWIN CARB) (W/AUTO-BLEND) 6E9-007666 THRU 6E9-015000 (M)

  • №
    Артикул
    Название
  • 1
    463-6984M CRANKSHAFT
    CRANKSHAFT
  • 2
    31-83341T BEARING, NEEDLE
    BEARING, NEEDLE
  • 3
    26-82249M SEAL, Oil
    SEAL, Oil
  • 4
    25-82276M O-RING
    O-RING
  • 5
    31-97837T BEARING, NEEDLE
    BEARING, NEEDLE
  • 6
    30-814560T BEARING
    BEARING
  • 7
    19232M HOUSING, OIL SEAL
    SN# M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & Up
    HOUSING, OIL SEAL
    SN# M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & Up
  • 7
    19232M HOUSING, OIL SEAL
    SN# M-008625, ML-311888, E-105663, EL-428357, ETL-502265 & Below
    HOUSING, OIL SEAL
    SN# M-008625, ML-311888, E-105663, EL-428357, ETL-502265 & Below
  • 8
    26-83347M SEAL, Oil
    SEAL, Oil
  • 9
    26-97712M SEAL, Oil
    SEAL, Oil
  • 10
    26-97069M SEAL, Oil
    SEAL, Oil
  • 11
    25-82286M O-RING
    O-RING
  • 12
    10-826957M BOLT
    BOLT
  • 13
    12-82214M WASHER
    WASHER
  • 14
    25-83348M O-RING
    O-RING
  • 15
    629-8808T CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 16
    10-81715M BOLT
    BOLT
  • 17
    31-97710M BEARING, NEEDLE
    BEARING, NEEDLE
  • 18
    761-8563M PISTON (STD)
    PISTON (STD)
  • 18
    761-8564T PISTON (1ST O.S. - 75.25MM)
    PISTON (1ST O.S. - 75.25MM)
  • 18
    761-8565T PISTON (2ND O.S. - 75.50MM)
    PISTON (2ND O.S. - 75.50MM)
  • 19
    39-83896T RING SET, Piston (STD)
    RING SET, Piston (STD)
  • 19
    39-83897T RING SET, Piston (1ST O.S. - 75.25MM)
    RING SET, Piston (1ST O.S. - 75.25MM)
  • 19
    39-83898T RING SET, Piston (2ND O.S. - 75.50MM)
    RING SET, Piston (2ND O.S. - 75.50MM)
  • 20
    41-83345T PIN, PISTON
    PIN, PISTON
  • 21
    53-81264M CLIP, PISTON PIN
    CLIP, PISTON PIN
  • 22
    29-82353M BEARING, NEEDLE
    BEARING, NEEDLE
  • 23
    12-81831M WASHER
    WASHER
  • 24
    28-81915M KEY, FLYWHEEL
    KEY, FLYWHEEL
  • -
    27-97666M GASKET SET
    GASKET SET
