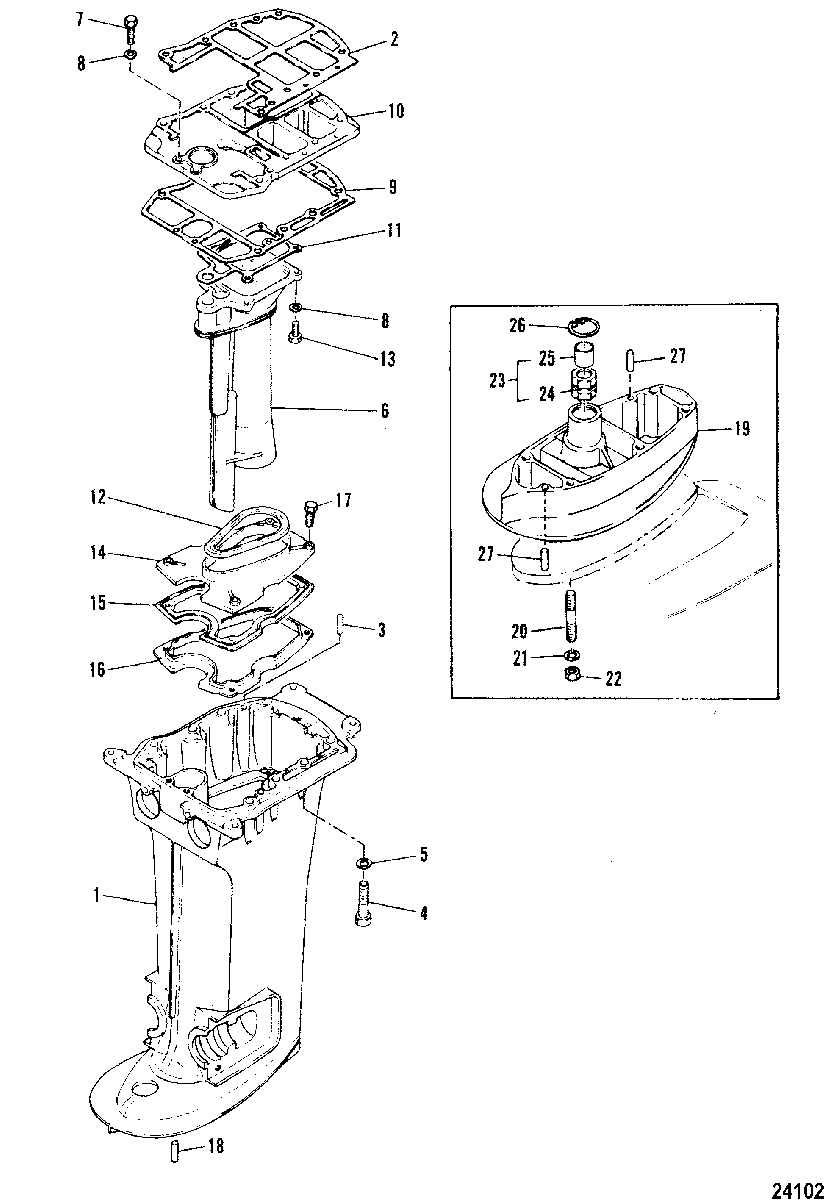

DRIVESHAFT HOUSING для Mariner - 40B (THRU PROP. EXHAUST) E-676-B100461 THRU B102785

  • №
    Артикул
    Название
  • 1
    1587-6991M HOUSING, Driveshaft (SHORT SHAFT)
    HOUSING, Driveshaft (SHORT SHAFT)
  • 1
    1587-8442M HOUSING, Driveshaft (LONG, SUPER LONG SHAFT)
    HOUSING, Driveshaft (LONG, SUPER LONG SHAFT)
  • 2
    27-11885 GASKET, DRIVESHAFT HOUSING
    GASKET, DRIVESHAFT HOUSING
  • 3
    17-83379M PIN, DOWEL
    PIN, DOWEL
  • 4
    10-97749M BOLT
    BOLT
  • 5
    13-82215M LOCKWASHER
    LOCKWASHER
  • 6
    815115M TUBE, Exhaust
    TUBE, Exhaust
  • 7
    10-82405M BOLT
    BOLT
  • 8
    13-82212M LOCKWASHER
    LOCKWASHER
  • 9
    27-19175 GASKET, UPPER HOUSING
    GASKET, UPPER HOUSING
  • 10
    83382M PLATE
    PLATE
  • 11
    27-83383M GASKET, EXHAUST MANIFOLD
    GASKET, EXHAUST MANIFOLD
  • 12
    83384M SEAL
    SEAL
  • 13
    10-84058M BOLT
    BOLT
  • 14
    814970M BRACKET, Seal Support
    BRACKET, Seal Support
  • 15
    83386M SEAL
    SEAL
  • 16
    814971M PLATE
    PLATE
  • 17
    10-82476M BOLT
    BOLT
  • 18
    17-82364M PIN, Dowel
    PIN, Dowel
  • 19
    83891M EXTENSION (SUPER LONG SHAFT)
    EXTENSION (SUPER LONG SHAFT)
  • 20
    16-81740M STUD (SUPER LONG SHAFT)
    STUD (SUPER LONG SHAFT)
  • 21
    13-82215M LOCKWASHER (SUPER LONG SHAFT)
    LOCKWASHER (SUPER LONG SHAFT)
  • 22
    11-82382M NUT (SUPER LONG SHAFT)
    NUT (SUPER LONG SHAFT)
  • 23
    23-83892M BUSHING (SUPER LONG SHAFT)
    BUSHING (SUPER LONG SHAFT)
  • 24
    83893M DAMPER (SUPER LONG SHAFT)
    DAMPER (SUPER LONG SHAFT)
  • 25
    23-83894M BUSHING (SUPER LONG SHAFT)
    BUSHING (SUPER LONG SHAFT)
  • 26
    53-83758M RING, Snap (SUPER LONG SHAFT)
    RING, Snap (SUPER LONG SHAFT)
  • 27
    17-82364M PIN, Dowel (SUPER LONG SHAFT)
    PIN, Dowel (SUPER LONG SHAFT)
  • -
    27-94483M GASKET SET
    GASKET SET
  • -
    27-94533M GASKET SET
    GASKET SET
