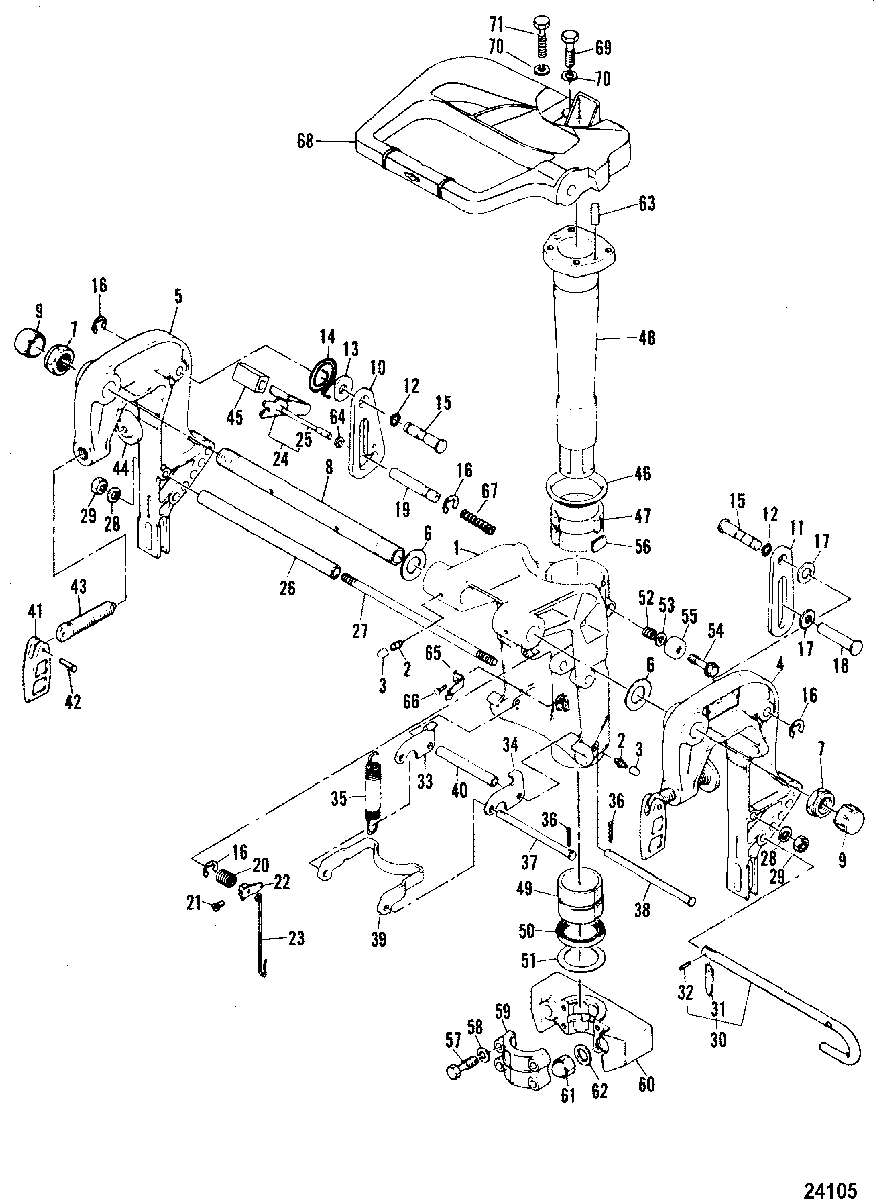

CLAMP AND SWIVEL BRACKET/REVERSE LOCK для Mariner - 40B (THRU PROP. EXHAUST) E-676-B100461 THRU B102785

  • №
    Артикул
    Название
  • 1
    1485-6996M BRACKET, SWIVEL
    BRACKET, SWIVEL
  • 2
    22-82369M FITTING, GREASE
    FITTING, GREASE
  • 3
    81439M CAP, GREASE FITTING
    CAP, GREASE FITTING
  • 4
    1484-9822M BRACKET, CLAMP (PORT)
    SN# S-001161/L-303186/ES-101681/EL-403211 & Up
    BRACKET, CLAMP (PORT)
    SN# S-001161/L-303186/ES-101681/EL-403211 & Up
  • 4
    1484-6997M BRACKET, CLAMP (PORT)
    SN# S-001160/L-303185/ES-101680/EL-403210 & Below
    BRACKET, CLAMP (PORT)
    SN# S-001160/L-303185/ES-101680/EL-403210 & Below
  • 5
    1484-9823M BRACKET, CLAMP (STARBOARD)
    SN# S-001161/L-303186/ES-101681/EL-403211 & Up
    BRACKET, CLAMP (STARBOARD)
    SN# S-001161/L-303186/ES-101681/EL-403211 & Up
  • 5
    1484-6998M BRACKET, CLAMP (STARBOARD)
    SN# S-001160/L-303185/ES-101680/EL-403210 & Below
    BRACKET, CLAMP (STARBOARD)
    SN# S-001160/L-303185/ES-101680/EL-403210 & Below
  • 6
    12-81836M WASHER
    WASHER
  • 7
    11-879172252 NUT, NYLON
    NUT, NYLON
  • 8
    10-41312M STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 9
    811914M CAP
    CAP
  • 10
    14278M STOP, TILT (STARBOARD)
    SN# S-001161/L-303186/ES-101681/EL-403211 & Up
    STOP, TILT (STARBOARD)
    SN# S-001161/L-303186/ES-101681/EL-403211 & Up
  • 10
    94508M STOP, TILT (STARBOARD)
    SN# S-001160/L-303185/ES-101680/EL-403210 & Below
    STOP, TILT (STARBOARD)
    SN# S-001160/L-303185/ES-101680/EL-403210 & Below
  • 11
    84969M STOP, TILT (PORT)
    SN# S-001161/L-303186/ES-101681/EL-403211 & Up
    STOP, TILT (PORT)
    SN# S-001161/L-303186/ES-101681/EL-403211 & Up
  • 11
    94510M STOP, TILT (PORT)
    SN# S-001160/L-303185/ES-101680/EL-403210 & Below
    STOP, TILT (PORT)
    SN# S-001160/L-303185/ES-101680/EL-403210 & Below
  • 12
    13-83457M WAVE WASHER
    WAVE WASHER
  • 13
    12-83458M WASHER
    WASHER
  • 14
    24-83459M SPRING, LEVER RETURN
    SPRING, LEVER RETURN
  • 15
    17-19257M PIN
    PIN
  • 16
    53-83461M RING, Snap
    RING, Snap
  • 17
    12-83462M WASHER
    WASHER
  • 18
    17-95450M PIN
    PIN
  • 19
    83464M SHAFT
    SHAFT
  • 20
    24-83465M SPRING
    SPRING
  • 21
    10-84313M BOLT
    BOLT
  • 22
    83467M LEVER, TILT
    LEVER, TILT
  • 23
    83468M ROD, LOCK
    ROD, LOCK
  • 24
    14260M LEVER ASSEMBLY, Tilt
    LEVER ASSEMBLY, Tilt
  • 25
    17-83470M PIN
    PIN
  • 26
    19258M SPACER
    SPACER
  • 27
    16-83472M STUD
    STUD
  • 28
    13-82215M LOCKWASHER
    LOCKWASHER
  • 29
    11-82382M NUT
    NUT
  • 30
    17-814972T PIN ASSEMBLY, Tilt
    PIN ASSEMBLY, Tilt
  • 31
    84044M STOPPER, TILT LOCK
    STOPPER, TILT LOCK
  • 32
    17-82145M PIN, ROLL
    PIN, ROLL
  • 33
    83905M BRACKET, TILT LOCK
    BRACKET, TILT LOCK
  • 34
    83906M BRACKET, TILT LOCK
    BRACKET, TILT LOCK
  • 35
    24-83476M SPRING
    SPRING
  • 36
    18-82128M PIN, COTTER
    PIN, COTTER
  • 37
    17-83477M PIN
    PIN
  • 38
    17-83478M PIN
    PIN
  • 39
    83479M TILT LOCK
    TILT LOCK
  • 40
    23-83480M SPACER
    SPACER
  • 41
    11868M HANDLE, TRANSOM CLAMP
    HANDLE, TRANSOM CLAMP
  • 42
    17-81889M PIN
    PIN
  • 43
    10-83481M SCREW, TRANSOM CLAMP
    SCREW, TRANSOM CLAMP
  • 44
    12-80638M PAD, TRANSOM CLAMP
    PAD, TRANSOM CLAMP
  • 45
    81395M COVER
    COVER
  • 46
    12-83482M WASHER
    WASHER
  • 47
    23-83483M BUSHING
    BUSHING
  • 48
    83907M SHAFT
    SHAFT
  • 49
    23-83485M BUSHING
    BUSHING
  • 50
    26-83486M SEAL, Oil
    SEAL, Oil
  • 51
    12-83487M WASHER
    WASHER
  • 52
    24-83488M SPRING
    SPRING
  • 53
    12-82217M WASHER
    WASHER
  • 54
    10-43106M BOLT
    BOLT
  • 55
    26-83490M SEAL
    SEAL
  • 56
    80633M PLATE, FRICTION
    PLATE, FRICTION
  • 57
    10-95416M BOLT
    BOLT
  • 58
    13-82215M LOCKWASHER
    LOCKWASHER
  • 59
    83491M HOUSING, LOWER MOUNT RUBBER
    HOUSING, LOWER MOUNT RUBBER
  • 60
    83492T HOUSING, LOWER MOUNT RUBBER
    HOUSING, LOWER MOUNT RUBBER
  • 61
    11-82397M NUT, CROWN
    NUT, CROWN
  • 62
    12-84429M WASHER
    WASHER
  • 63
    17-82368M PIN, DOWEL
    PIN, DOWEL
  • 64
    12-83493M WASHER
    WASHER
  • 65
    24-83494M SPRING
    SPRING
  • 66
    17-83495M RIVET
    RIVET
  • 67
    24-83909M SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 68
    8M0057160 BRACKET, STEERING
    BRACKET, STEERING
  • 69
    10-95416M BOLT
    BOLT
  • 70
    13-82215M LOCKWASHER
    LOCKWASHER
  • 71
    10-82442M BOLT
    BOLT
