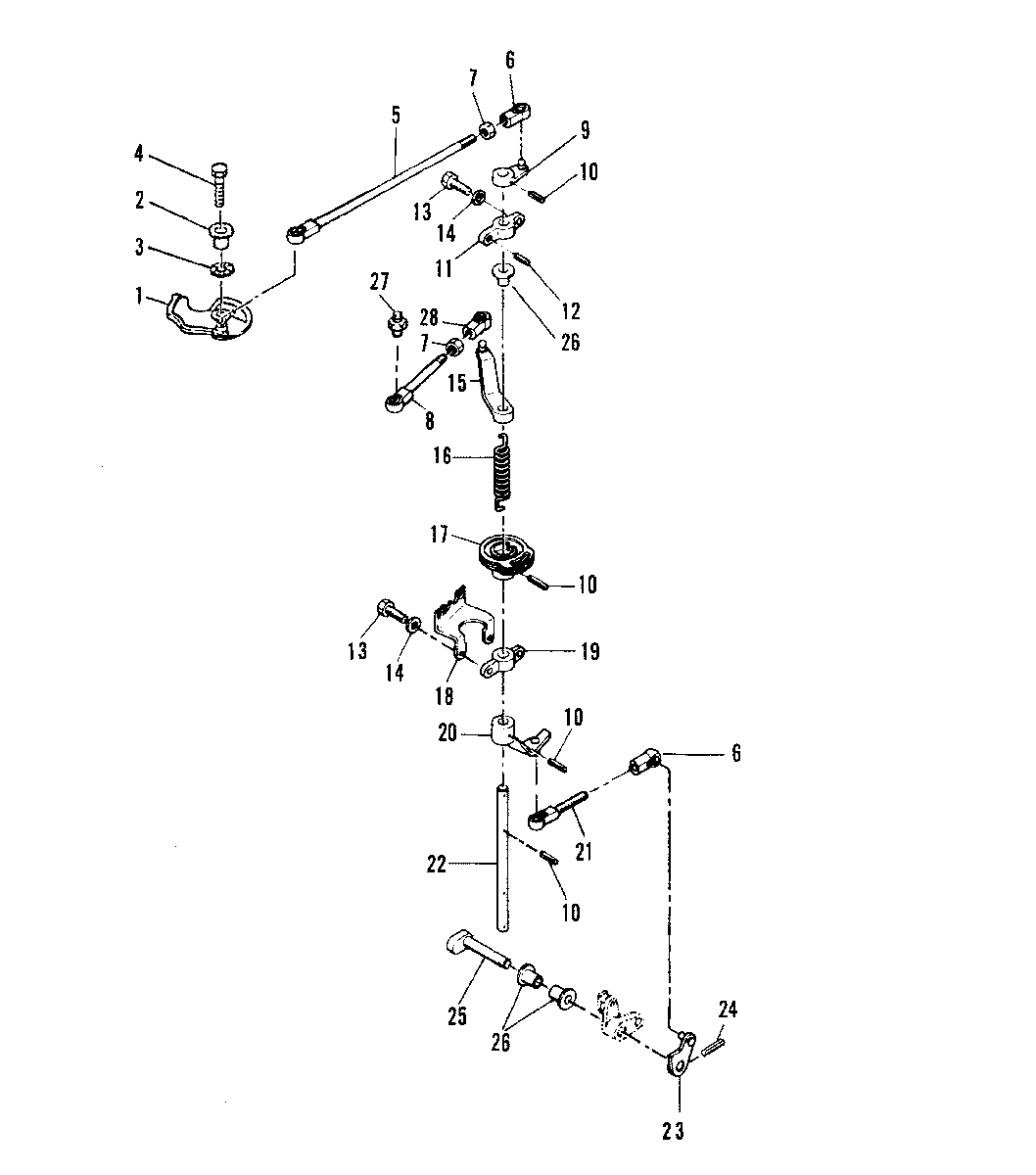

THROTTLE CONTROL для Mariner - 40B (CDI IGNITION/THRU PROP. EXHAUST) 676-B302426 AND UP (ML)

  • №
    Артикул
    Название
  • 1
    97115M CAM
    SERIAL 00004416-09999999
    CAM
    SERIAL 00004416-09999999
  • 1
    94502M CAM
    SERIAL 00000000-00004415
    CAM
    SERIAL 00000000-00004415
  • 2
    23-94503M COLLAR
    COLLAR
  • 3
    13-81868M WASHER
    WASHER
  • 4
    10-83285M BOLT
    BOLT
  • 5
    83544M LINK,ROD
    LINK,ROD
  • 6
    16715M RETAINER,LINK ROD
    RETAINER,LINK ROD
  • 7
    11-82388M NUT
    NUT
  • 8
    84101M ROD,MAGNETO CONTROL
    SERIAL 00003931-09999999
    ROD,MAGNETO CONTROL
    SERIAL 00003931-09999999
  • 8
    83918M ROD,MAGNETO CONTROL
    SERIAL 00000000-00003930
    ROD,MAGNETO CONTROL
    SERIAL 00000000-00003930
  • 9
    94504M LEVER,MAGNETO CONTROL
    LEVER,MAGNETO CONTROL
  • 10
    17-82149M PIN,ROLL
    PIN,ROLL
  • 11
    83547M BRACKET
    BRACKET
  • 12
    17-82154M PIN,ROLL
    PIN,ROLL
  • 13
    10-84058M BOLT
    BOLT
  • 14
    12-82214M WASHER,LOCK
    WASHER,LOCK
  • 15
    83548M LEVER,MAGNETO CONTROL
    LEVER,MAGNETO CONTROL
  • 16
    83594M SPRING
    SPRING
  • 17
    83919M PULLEY
    PULLEY
  • 18
    83551M BRACKET
    BRACKET
  • 18
    83551M BRACKET
    BRACKET
  • 19
    83537M BRACKET
    BRACKET
  • 20
    83920M LEVER,MAGNETO CONTROL
    LEVER,MAGNETO CONTROL
  • 21
    83921M ROD
    ROD
  • 22
    83555M SHAFT,LINK CONNECTING
    SHAFT,LINK CONNECTING
  • 23
    83526M LEVER,THROTTLE CONTROL
    LEVER,THROTTLE CONTROL
  • 24
    17-82158M PIN,ROLL
    PIN,ROLL
  • 25
    83527T SHAFT,THROTTLE CONTROL
    SHAFT,THROTTLE CONTROL
  • 26
    23-81946M BUSHING
    BUSHING
  • 27
    84305M BALL JOINT
    BALL JOINT
  • 28
    84100M RETAINER,LINK ROD
    SERIAL 00003291-09999999
    RETAINER,LINK ROD
    SERIAL 00003291-09999999
  • 28
    16715M RETAINER,LINK ROD
    SERIAL 00000000-00003290
    RETAINER,LINK ROD
    SERIAL 00000000-00003290
