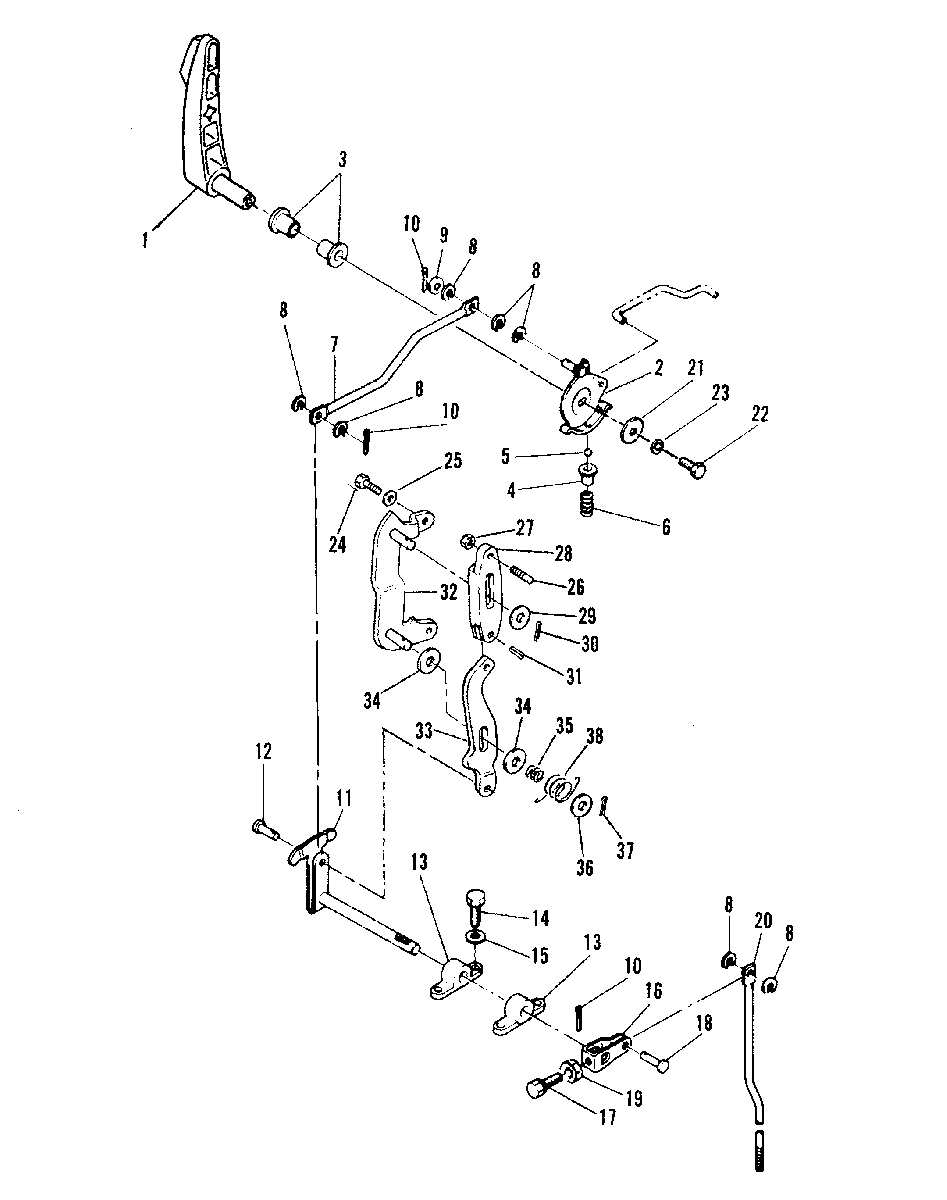

GEAR SHIFT LINKAGE для Mariner - 40B (CDI IGNITION/THRU PROP. EXHAUST) 676-B302426 AND UP (ML)

  • №
    Артикул
    Название
  • 1
    94506M HANDLE,GEAR SHIFT
    HANDLE,GEAR SHIFT
  • 2
    94507M CAM,PLATE HANDLE
    CAM,PLATE HANDLE
  • 3
    23-41823M BUSHING
    BUSHING
  • 4
    23-83531M BUSHING
    BUSHING
  • 5
    82348M BALL,STEEL
    BALL,STEEL
  • 6
    24-82084M SPRING,COMPRESSION
    SPRING,COMPRESSION
  • 7
    83532M ROD
    ROD
  • 8
    12-83533M WASHER
    WASHER
  • 9
    12-82211M WASHER
    WASHER
  • 10
    18-82125M PIN,COTTER
    PIN,COTTER
  • 11
    83534M SHAFT
    SHAFT
  • 12
    17-97116M PIN,CLEVIS
    SERIAL E0103816-09999999
    PIN,CLEVIS
    SERIAL E0103816-09999999
  • 12
    17-83536M PIN,CLEVIS
    SERIAL 00000000-00004590
    PIN,CLEVIS
    SERIAL 00000000-00004590
  • 13
    83537M BRACKET
    BRACKET
  • 14
    10-84058M BOLT
    BOLT
  • 15
    12-82214M WASHER,LOCK
    WASHER,LOCK
  • 16
    83538M LEVER,SHIFT ROD
    LEVER,SHIFT ROD
  • 17
    10-84058M BOLT
    BOLT
  • 18
    17-83540M PIN,CLEVIS
    PIN,CLEVIS
  • 19
    11-82389M NUT
    NUT
  • 20
    83542M ROD,SHIFT
    ROD,SHIFT
  • 21
    12-81794M WASHER
    WASHER
  • 22
    10-91772M BOLT
    BOLT
  • 23
    13-82212M LOCKWASHER
    LOCKWASHER
  • 24
    10-826957M BOLT
    SERIAL 00004591-09999999
    BOLT
    SERIAL 00004591-09999999
  • 25
    12-82214M WASHER
    SERIAL 00004591-09999999
    WASHER
    SERIAL 00004591-09999999
  • 26
    16-91649M STUD
    SERIAL 00004591-09999999
    STUD
    SERIAL 00004591-09999999
  • 27
    11-83763M NUT
    SERIAL 00004591-09999999
    NUT
    SERIAL 00004591-09999999
  • 28
    97117M LEVER THROTTLE
    SERIAL 00004591-09999999
    LEVER THROTTLE
    SERIAL 00004591-09999999
  • 29
    12-94524M WASHER
    SERIAL 00004591-09999999
    WASHER
    SERIAL 00004591-09999999
  • 30
    18-82127M PIN
    SERIAL 00004591-09999999
    PIN
    SERIAL 00004591-09999999
  • 31
    17-82154M PIN( ) AND ABOVE
    SERIAL 00004591-09999999
    PIN( ) AND ABOVE
    SERIAL 00004591-09999999
  • 32
    97118M BRACKET
    SERIAL 00004591-09999999
    BRACKET
    SERIAL 00004591-09999999
  • 33
    97119M LEVER,SHIFT
    SERIAL 00004591-09999999
    LEVER,SHIFT
    SERIAL 00004591-09999999
  • 34
    12-83493M WASHER
    SERIAL 00004591-09999999
    WASHER
    SERIAL 00004591-09999999
  • 35
    24-97121M SPRING
    SERIAL 00004591-09999999
    SPRING
    SERIAL 00004591-09999999
  • 36
    12-94524M WASHER
    SERIAL 00004591-09999999
    WASHER
    SERIAL 00004591-09999999
  • 37
    10-83870M PIN
    SERIAL 00004591-09999999
    PIN
    SERIAL 00004591-09999999
  • 38
    24-97120M SPRING
    SERIAL 00004591-09999999
    SPRING
    SERIAL 00004591-09999999
