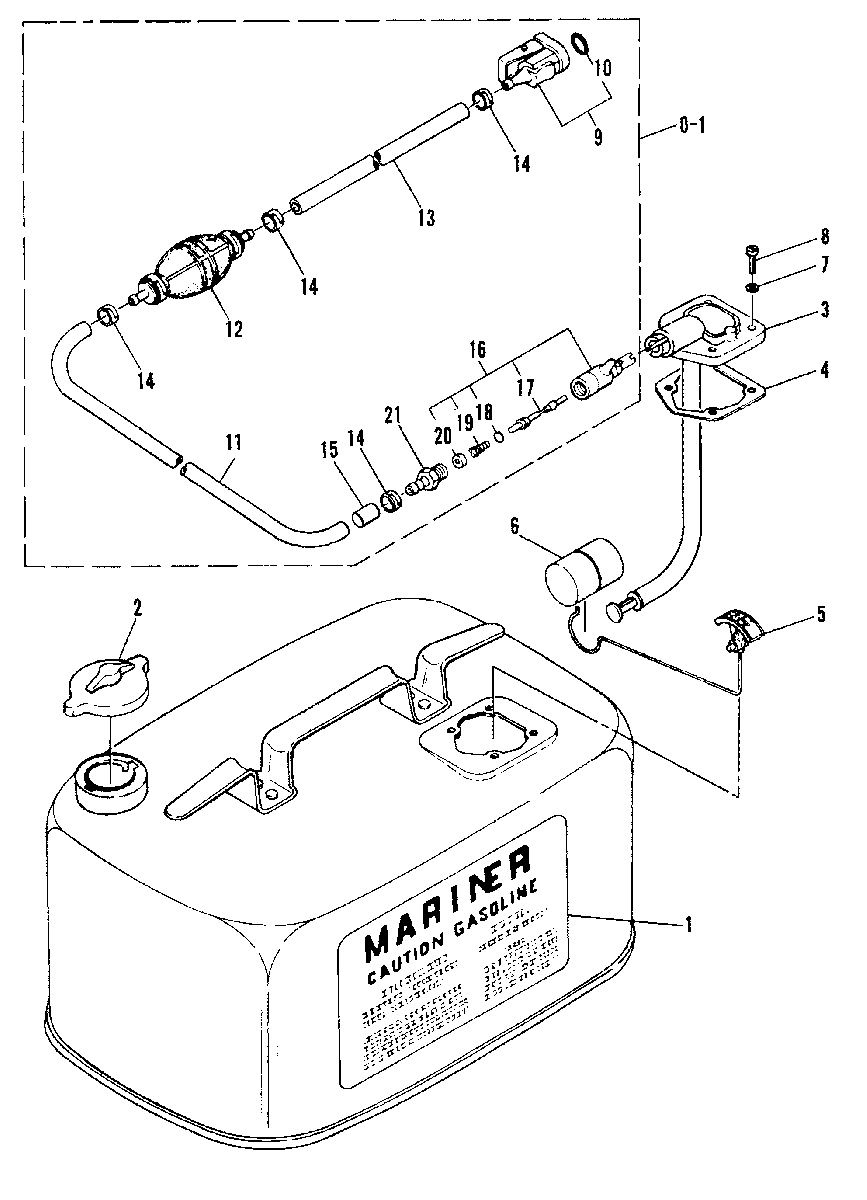

FUEL TANK (ORIGINAL EQUIPMENT) 24 LITRE (6.3 GALLONS) для Mariner - 40A (ABOVE PROP. EXHAUST) 676-A10121 THRU 100415 (E)

  • №
    Артикул
    Название
  • 1
    37-82984M DECAL, SIDE
    DECAL, SIDE
  • 2
    36-18962M FUEL TANK CAP
    FUEL TANK CAP
  • 3
    83618M FUEL METER COMPLETE
    FUEL METER COMPLETE
  • 4
    27-81320M GASKET, HOUSING TO TANK
    GASKET, HOUSING TO TANK
  • 5
    81318M INDICATOR, FUEL LEVEL
    INDICATOR, FUEL LEVEL
  • 6
    81319M FLOAT, INDICATOR
    FLOAT, INDICATOR
  • 7
    12-95501M WASHER, HOUSING SCREW
    WASHER, HOUSING SCREW
  • 8
    10-82496M SCREW, HOUSING ATTACHING
    SCREW, HOUSING ATTACHING
  • 0-1
    32-877681Q8 FUEL LINE ASS'Y
    FUEL LINE ASS'Y
  • 9
    22-14213Q FUEL CONNECTOR, ENGINE END
    FUEL CONNECTOR, ENGINE END
  • 10
    25-82789M O-RING
    O-RING
  • 11
    32-94727M HOSE, CONNECTOR HOUSING TO BULB
    HOSE, CONNECTOR HOUSING TO BULB
  • 12
    89396Q01 BULB, PRIMER
    BULB, PRIMER
  • 13
    32-94727M HOSE, BULB TO CONNECTOR
    HOSE, BULB TO CONNECTOR
  • 14
    54-16725M CLAMP, HOSE
    CLAMP, HOSE
  • 15
    23-81327M COLLAR
    COLLAR
  • 16
    30185Q3 BAYONET BODY ASS'Y
    BAYONET BODY ASS'Y
  • 17
    30185Q3 STEM, BAYONET BODY
    STEM, BAYONET BODY
  • 18
    25-16524 O-RING, BAYONET BODY STEM
    O-RING, BAYONET BODY STEM
  • 19
    24-30189 SPRING, BAYONET BODY STEM
    SPRING, BAYONET BODY STEM
  • 20
    30188 WASHER, CAP
    WASHER, CAP
  • 21
    22-63187 FITTING, FUEL LINE
    FITTING, FUEL LINE
