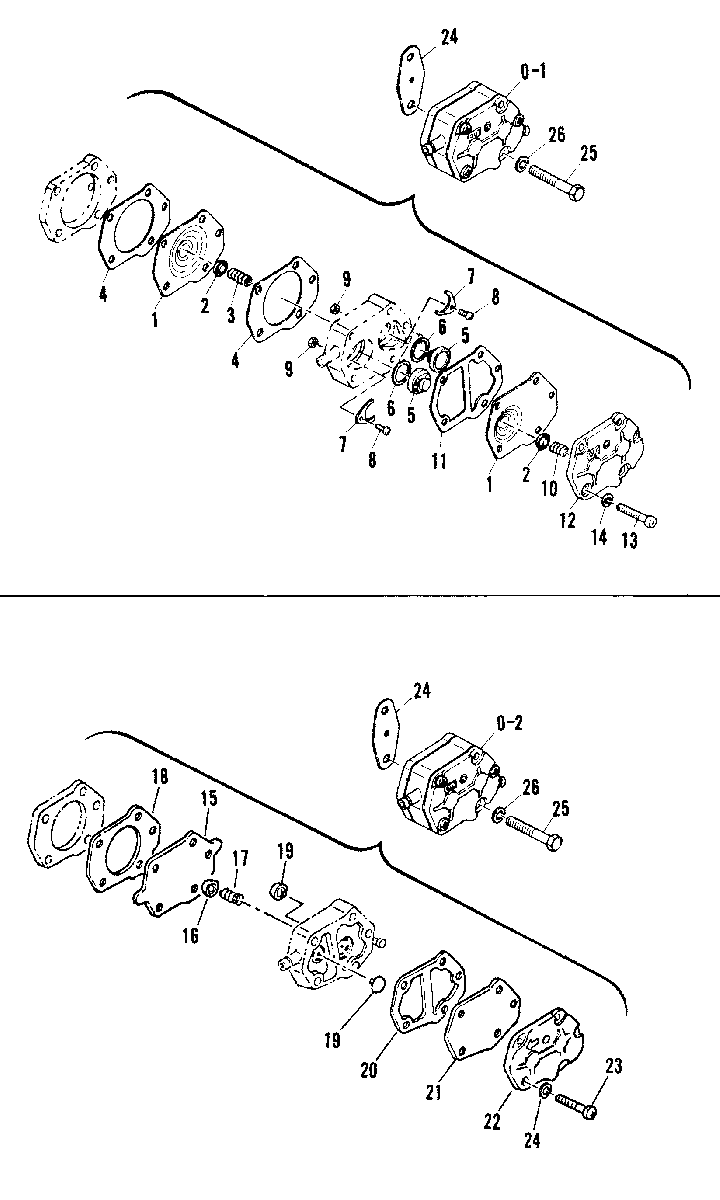

FUEL PUMP для Mariner - 40A (ABOVE PROP. EXHAUST) 676-A10121 THRU 100415 (E)

  • №
    Артикул
    Название
  • 0-1
    43113T FUEL PUMP ASS'Y (S001990, L-302250, E-100355, EL-400940) AND
    FUEL PUMP ASS'Y (S001990, L-302250, E-100355, EL-400940) AND
  • 1
    80606M DIAPHRAGM, PUMP
    DIAPHRAGM, PUMP
  • 2
    80611M PLATE, SPRING GUIDE
    PLATE, SPRING GUIDE
  • 3
    24-80610M SPRING, PUMP DIAPHRAGM
    SPRING, PUMP DIAPHRAGM
  • 4
    27-80613 GASKET
    GASKET
  • 5
    21-80608M CHECK VALVE
    CHECK VALVE
  • 6
    27-80612M GASKET
    GASKET
  • 7
    80609M PLATE
    PLATE
  • 8
    10-82511M SCREW
    SCREW
  • 9
    11-82537M NUT
    NUT
  • 10
    24-80615M SPRING
    SPRING
  • 11
    27-80614 GASKET
    GASKET
  • 12
    80607M COVER, PUMP
    COVER, PUMP
  • 13
    10-82522M SCREW
    SCREW
  • 14
    13-82186M WASHER, LOCK
    WASHER, LOCK
  • 0-2
    43113T FUEL PUMP ASS'Y (S-001991, L-302251, E-100356, EL-400941) AN
    FUEL PUMP ASS'Y (S-001991, L-302251, E-100356, EL-400941) AN
  • 15
    80606M DIAPHRAGM
    DIAPHRAGM
  • 16
    80611M PLATE, SPRING GUIDE
    PLATE, SPRING GUIDE
  • 17
    24-80610M SPRING
    SPRING
  • 18
    27-80613 GASKET
    GASKET
  • 19
    21-84650M CHECK VALVE
    CHECK VALVE
  • 20
    27-80614 GASKET
    GASKET
  • 21
    84141M DIAPHRAGM
    DIAPHRAGM
  • 22
    80607M COVER
    COVER
  • 23
    10-82522M SCREW
    SCREW
  • 23
    13-82186M WASHER, LOCK
    WASHER, LOCK
  • 24
    27-80757 GASKET
    GASKET
  • 25
    10-827043M BOLT
    BOLT
  • 26
    12-82214M WASHER, LOCK
    WASHER, LOCK
  • -
    48-73138A45 PROP. ASSY (10-1/4" DIA.) (ALUMINUM) (14" PITCH) (3 BLADES)
    PROP. ASSY (10-1/4" DIA.) (ALUMINUM) (14" PITCH) (3 BLADES)
  • -
    48-73140A45 PROP. ASSY (10-1/8" DIA.) (ALUMINUM) (15" PITCH) (3 BLADES)
    PROP. ASSY (10-1/8" DIA.) (ALUMINUM) (15" PITCH) (3 BLADES)
  • -
    48-73144A45 PROP. ASSY (10" DIA.) (ALUMINUM) (17" PITCH) (3 BLADES)
    PROP. ASSY (10" DIA.) (ALUMINUM) (17" PITCH) (3 BLADES)
