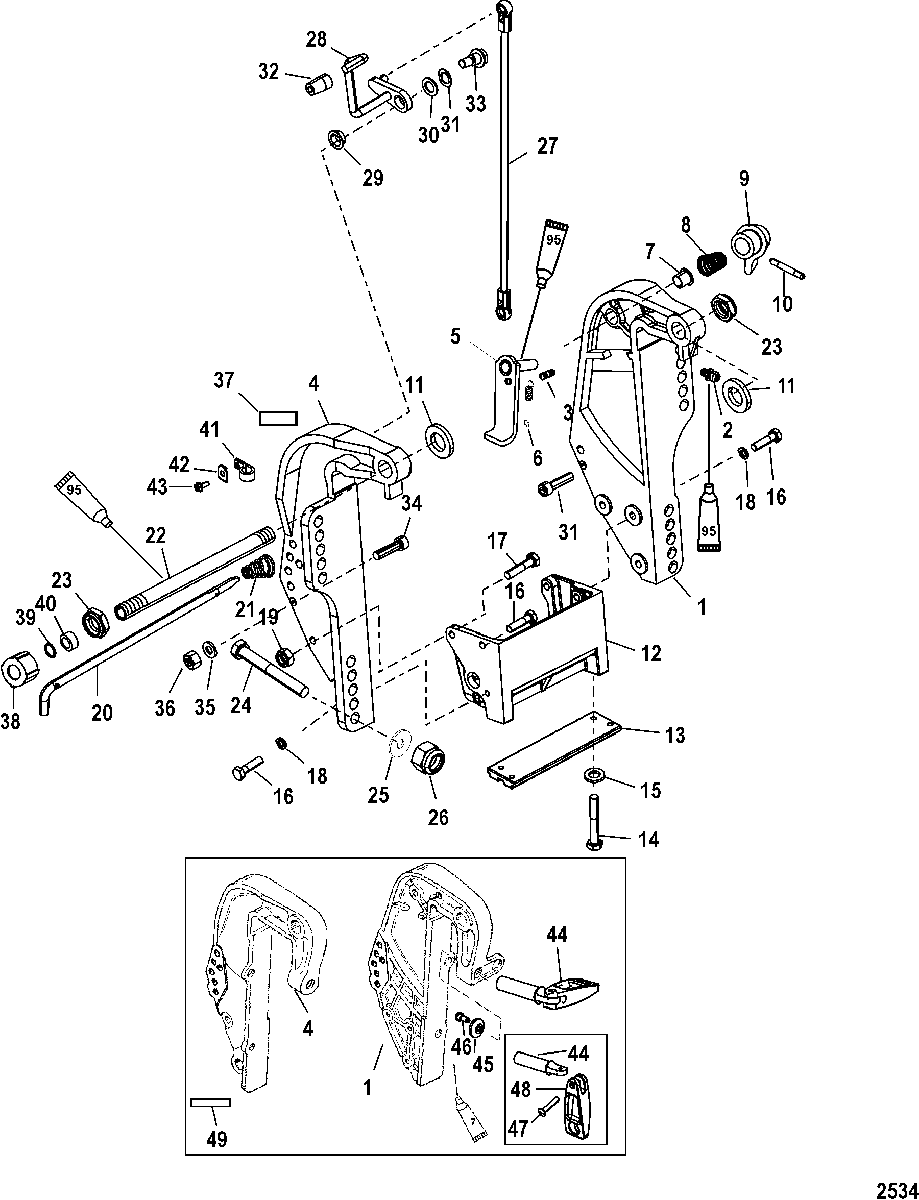

Transom Bracket для Mariner - 40 CARB (3 CYL.)(4-STROKE) 0P153500 THRU 0P400999

  • №
    Артикул
    Название
  • 1
    3418-822866T04 BRACKET ASSEMBLY, Transom
    (PORT)
    BRACKET ASSEMBLY, Transom
    (PORT)
  • 1
    3420-8M0084195 CLAMP BRACKET ASSEMBLY
    (PORT - MANUAL LONG BIGFOOT)
    CLAMP BRACKET ASSEMBLY
    (PORT - MANUAL LONG BIGFOOT)
  • 2
    22-98727 FITTING, Grease
    FITTING, Grease
  • 3
    17-99604 PIN, Groove
    PIN, Groove
  • 4
    3418-822865T05 BRACKET, Transom
    (STARBOARD)
    BRACKET, Transom
    (STARBOARD)
  • 4
    3419-822867F1 CLAMP BRACKET
    (STBD- MANUAL LONG BIGFOOT)
    CLAMP BRACKET
    (STBD- MANUAL LONG BIGFOOT)
  • 5
    893704T01 LEVER ASSEMBLY, Tilt Lock
    LEVER ASSEMBLY, Tilt Lock
  • 6
    24-99622 SPRING
    SPRING
  • 7
    23-65830 NYLINER
    NYLINER
  • 8
    24-812708 SPRING
    SPRING
  • 9
    812709 KNOB
    KNOB
  • 10
    17-99615 PIN, Groove
    PIN, Groove
  • 11
    12-19619 WASHER
    WASHER
  • 12
    18486A08 BRACKET, Anchor
    BRACKET, Anchor
  • 13
    97-818298Q1 ANODE KIT
    ANODE KIT
  • 14
    10-4000330 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 15
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 16
    10-4000354 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 17
    10-4000355 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 18
    13-400257 LOCKWASHER, (M8)
    LOCKWASHER, (M8)
  • 19
    11-401388 NUT, (M8) Stainless Steel
    NUT, (M8) Stainless Steel
  • 20
    17-8M0026068 PIN ASSEMBLY, Tilt Lock
    (NON POWER TRIM)
    PIN ASSEMBLY, Tilt Lock
    (NON POWER TRIM)
  • 21
    24-821461 SPRING
    (NON POWER TRIM)
    SPRING
    (NON POWER TRIM)
  • 22
    8M0041938 TILT TUBE
    TILT TUBE
  • 23
    11-858869 NUT, (.875-14)
    NUT, (.875-14)
  • 24
    10-814259 SCREW, (.500-20 x 4.00)
    SCREW, (.500-20 x 4.00)
  • 25
    12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
    WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
  • 26
    11-82671117 NUT, (.500-20)
    NUT, (.500-20)
  • 27
    8M0084737 LINK
    (NON POWER TRIM)
    LINK
    (NON POWER TRIM)
  • 28
    19615A05 LEVER ASSEMBLY, Tilt
    (NON POWER TRIM)
    LEVER ASSEMBLY, Tilt
    (NON POWER TRIM)
  • 29
    23-812707 BUSHING
    (NON POWER TRIM)
    BUSHING
    (NON POWER TRIM)
  • 30
    12-8M0042643 WASHER, (.520 x .850 x .060) Nylon - Black
    (NON POWER TRIM)
    WASHER, (.520 x .850 x .060) Nylon - Black
    (NON POWER TRIM)
  • 31
    13-99611 WAVE WASHER
    (NON POWER TRIM)
    WAVE WASHER
    (NON POWER TRIM)
  • 32
    8M0007469 TILT KNOB
    (NON POWER TRIM)
    TILT KNOB
    (NON POWER TRIM)
  • 33
    10-19611 SCREW, (.375-16 x .62)
    (NON POWER TRIM)
    SCREW, (.375-16 x .62)
    (NON POWER TRIM)
  • 34
    10-4009040 SCREW, (M10 x 40) Stainless Steel
    SCREW, (M10 x 40) Stainless Steel
  • 35
    12-4002319 WASHER
    WASHER
  • 36
    11-40140 NUT, (M10)
    NUT, (M10)
  • 37
    37-830253 DECAL, Tilt Lock
    DECAL, Tilt Lock
  • 38
    19624A1 SEAL KIT
    (NON-HANDLE)
    SEAL KIT
    (NON-HANDLE)
  • 39
    25-29619 O-RING, (.583 x .103)
    (NON-HANDLE)
    O-RING, (.583 x .103)
    (NON-HANDLE)
  • 40
    23-78861 SPACER
    (NON-HANDLE)
    SPACER
    (NON-HANDLE)
  • 41
    54-22740 CLIP
    (POWER TRIM)
    CLIP
    (POWER TRIM)
  • 42
    8M0084613 C WASHER
    (POWER TRIM)
    C WASHER
    (POWER TRIM)
  • 43
    10-878609 SCREW, (#10-16 x .600)
    (POWER TRIM)
    SCREW, (#10-16 x .600)
    (POWER TRIM)
  • 44
    10-818883A1 THUMB SCREW ASSEMBLY
    (MANUAL BIGFOOT)
    THUMB SCREW ASSEMBLY
    (MANUAL BIGFOOT)
  • 45
    12-818884 WASHER
    (MANUAL BIGFOOT)
    WASHER
    (MANUAL BIGFOOT)
  • 46
    10-768042 SHOULDER SCREW, Hex
    (MANUAL BIGFOOT)
    SHOULDER SCREW, Hex
    (MANUAL BIGFOOT)
  • 47
    NSS NOT SOLD SEPARATE, Handle
    (MANUAL BIGFOOT)
    NOT SOLD SEPARATE, Handle
    (MANUAL BIGFOOT)
  • 48
    NSS NOT SOLD SEPARATE, Rivet
    (MANUAL BIGFOOT)
    NOT SOLD SEPARATE, Rivet
    (MANUAL BIGFOOT)
  • 49
    NSS NOT SOLD SEPARATE, Decal-Warning
    (MANUAL BIGFOOT)
    NOT SOLD SEPARATE, Decal-Warning
    (MANUAL BIGFOOT)
