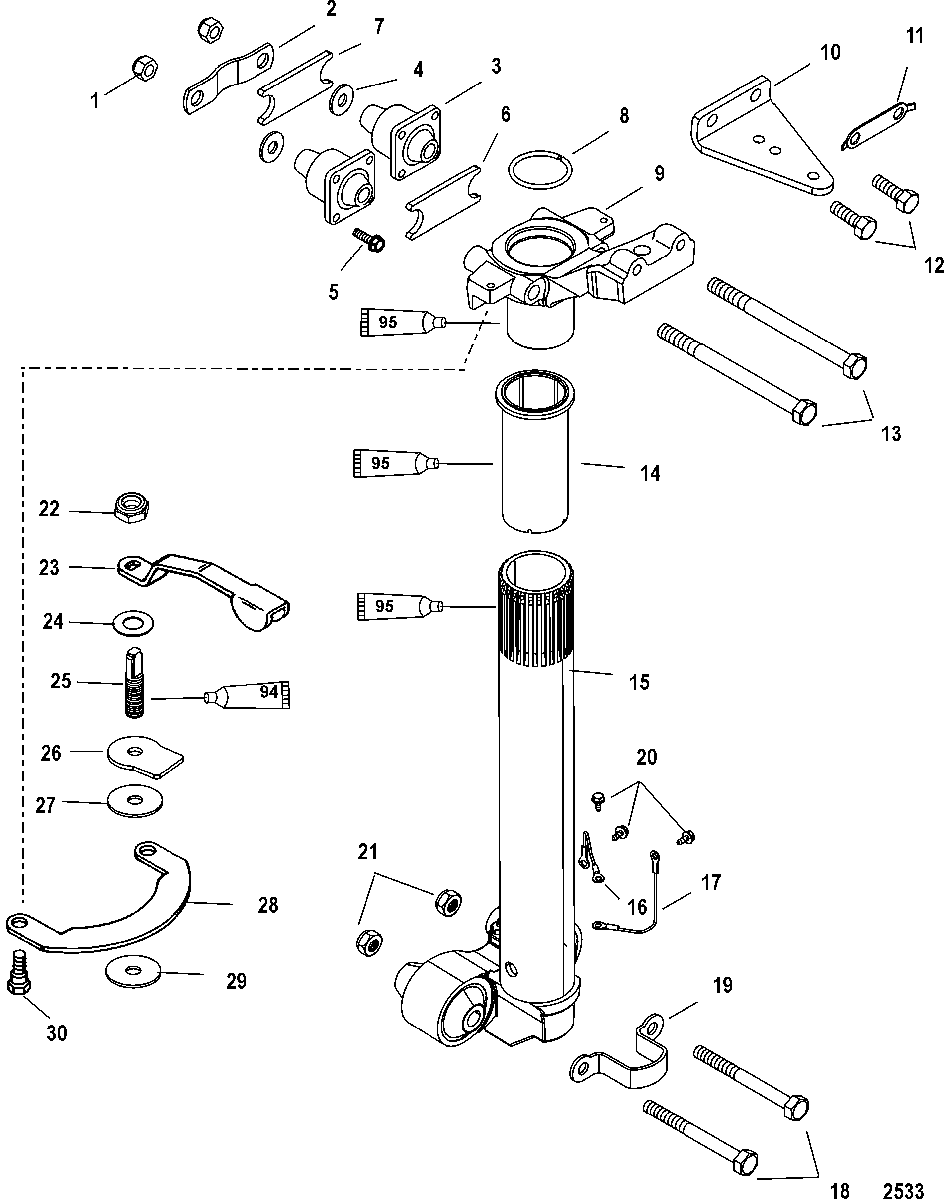

Steering Arm для Mariner - 40 CARB (3 CYL.)(4-STROKE) 0P153500 THRU 0P400999

  • №
    Артикул
    Название
  • 1
    11-896963 NUT, (M12)
    NUT, (M12)
  • 2
    893773002 STRAP
    STRAP
  • 3
    893655T MOUNT
    MOUNT
  • 4
    12-4002321 WASHER, (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel
    (BIGFOOT)
    WASHER, (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel
    (BIGFOOT)
  • 5
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 6
    826658 BUMPER
    BUMPER
  • 7
    826658 BUMPER
    (BIGFOOT)
    BUMPER
    (BIGFOOT)
  • 8
    53-89531 RING, Retaining
    RING, Retaining
  • 9
    8M0118183 ARM, Steering
    ARM, Steering
  • 10
    893696 BRACKET
    (ELECTRIC)
    BRACKET
    (ELECTRIC)
  • 11
    14-8M0009820 TAB WASHER
    (ELECTRIC)
    TAB WASHER
    (ELECTRIC)
  • 12
    10-4000377 SCREW, (M10 x 30)
    (ELECTRIC)
    SCREW, (M10 x 30)
    (ELECTRIC)
  • 13
    10-898835001 BOLT, (M12 x 154)
    BOLT, (M12 x 154)
  • 14
    23-8279973 SPACER
    (SHORT)
    SPACER
    (SHORT)
  • 14
    23-8279971 SPACER
    (LONG)
    SPACER
    (LONG)
  • 15
    850175T03 SWIVEL TUBE
    (SHORT)
    SWIVEL TUBE
    (SHORT)
  • 15
    893590T01 SWIVEL TUBE
    (LONG)
    SWIVEL TUBE
    (LONG)
  • 16
    84-88238T01 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 17
    88238A13 CABLE ASSEMBLY, Ground
    CABLE ASSEMBLY, Ground
  • 18
    10-823567105 SCREW, (M10 x 105) Hex Flange - Stainless Steel
    SCREW, (M10 x 105) Hex Flange - Stainless Steel
  • 19
    893703 BRACKET
    BRACKET
  • 20
    10-878607 SCREW, (#10-16 x .375)
    SCREW, (#10-16 x .375)
  • 21
    11-40140 NUT, (M10)
    NUT, (M10)
  • 22
    11-8M0042636 NUT, (.375-24) Stainless Steel
    (HANDLE)
    NUT, (.375-24) Stainless Steel
    (HANDLE)
  • 23
    823792 LEVER
    (HANDLE)
    LEVER
    (HANDLE)
  • 24
    12-29330 WASHER
    (HANDLE)
    WASHER
    (HANDLE)
  • 25
    821961 ROD (THREADED)
    (HANDLE)
    ROD (THREADED)
    (HANDLE)
  • 26
    8M0006845 PLATE/DISC ASSEMBLY
    (HANDLE)
    PLATE/DISC ASSEMBLY
    (HANDLE)
  • 27
    NSS NOT SOLD SEPARATE, Disc
    (HANDLE)
    NOT SOLD SEPARATE, Disc
    (HANDLE)
  • 28
    8M0007471 PLATE
    (HANDLE)
    PLATE
    (HANDLE)
  • 29
    8165621 DISC
    (HANDLE)
    DISC
    (HANDLE)
  • 30
    10-768042 SHOULDER SCREW, Hex
    (HANDLE)
    SHOULDER SCREW, Hex
    (HANDLE)
